Programmable thermal test chambers with model-specific lower temperature limits of -20, -40, -60 or -70 °C and an upper limit of 150 °C. Five chamber sizes are available; humidity control is not specified.
- Four model-specific temperature ranges
- 7-inch touchscreen, stored history and USB export
- SUS304 chamber and shelves; printer optional

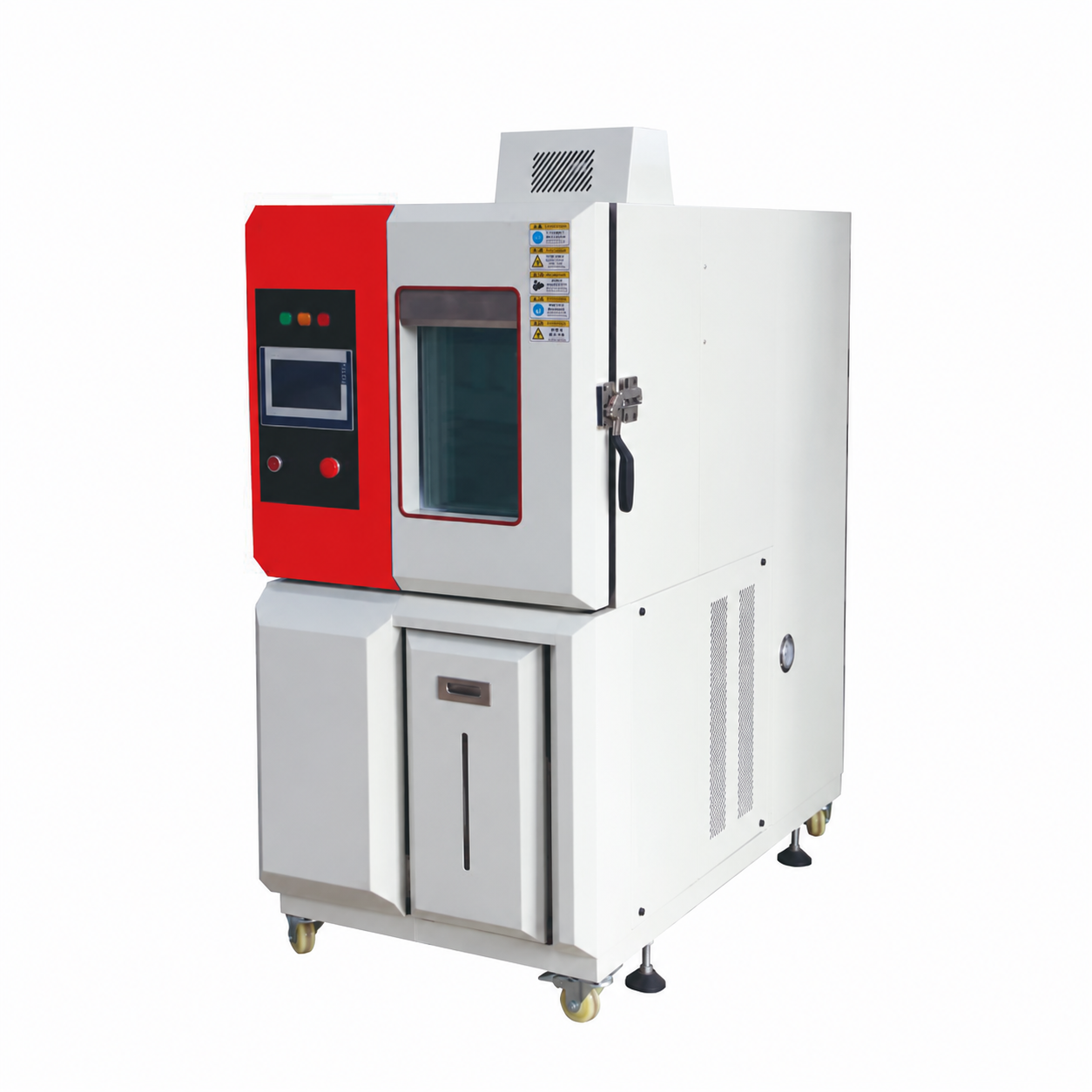

Representative exterior. Dimensions, door arrangement and final equipment configuration follow the selected model and approved specification.
Technical Information
| Parameter | Value |
|---|
| Temperature resolution | 0.1 °C |
| Temperature fluctuation at 37 °C | ≤ ±0.5 °C |
| Temperature uniformity at 37 °C | ≤ ±2 °C |
| Electrical supply | 380 V |
| Model | Temperature range | Input power (kW) | Shelves included |
|---|
| PT-ENV-080 | -20–150 °C | 1.5 | 2 |
| PT-ENV-081 | -40–150 °C | 2.5 | 2 |
| PT-ENV-082 | -60–150 °C | 3.5 | 2 |
| PT-ENV-083 | -70–150 °C | 3.5 | 2 |
| PT-ENV-084 | -20–150 °C | 3.5 | 2 |
| PT-ENV-085 | -40–150 °C | 4.5 | 2 |
| PT-ENV-086 | -60–150 °C | 4.5 | 2 |
| PT-ENV-087 | -70–150 °C | 4.5 | 2 |
| PT-ENV-088 | -20–150 °C | 4 | 2 |
| PT-ENV-089 | -40–150 °C | 5.5 | 2 |
| PT-ENV-090 | -60–150 °C | 6.5 | 2 |
| PT-ENV-091 | -70–150 °C | 6.5 | 2 |
| PT-ENV-092 | -20–150 °C | 4.5 | 3 |
| PT-ENV-093 | -40–150 °C | 6.5 | 3 |
| PT-ENV-094 | -60–150 °C | 7.5 | 3 |
| PT-ENV-095 | -70–150 °C | 7.5 | 3 |
| PT-ENV-096 | -20–150 °C | 5 | 4 |
| PT-ENV-097 | -40–150 °C | 7 | 4 |
| PT-ENV-098 | -60–150 °C | 9 | 4 |
| PT-ENV-099 | -70–150 °C | 9 | 4 |
Standard Configuration
7-inch touchscreen, multisegment programming, adjustable circulation airflow, password lock, stored history/curve display and USB export. Includes a SUS304 chamber and shelves, USB and RS-485, one validation port, antifog observation window and condensate recovery. Temperature and compressor/fan protection functions are listed.
Optional Accessories
Printer is optional. Confirm sample loading, temperature profile, supply frequency and installation. Listed temperature stability values are specified at 37 °C; verify performance at other conditions. No regulatory certification, audit-trail function or fixed heating/cooling duration is assured.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, sample loading, temperature profile, humidity needs, dimensions and site utilities. Confirm the combined operating envelope, installation and final supply before ordering.
