Laboratory water baths with timed temperature control, available in 12 L and 34 L chamber sizes. Timing starts after the set temperature is reached.
- One-piece stainless steel chamber
- Float-operated low-water protection
- Automatic stop when the timed cycle ends

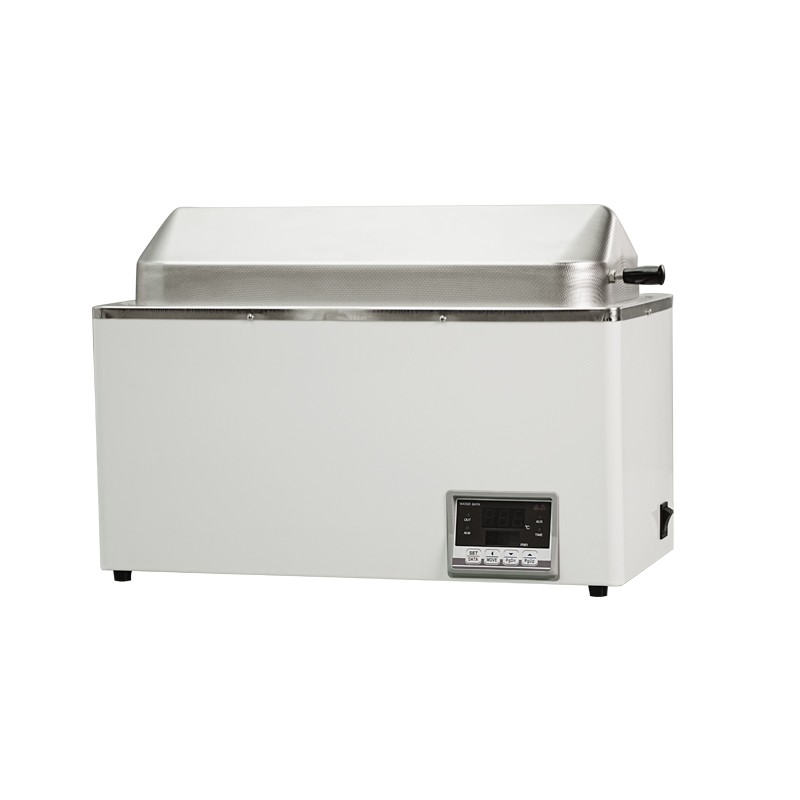

Image shows PT-WBA-016. Other models differ in dimensions.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +5 to 99.9 °C |
| Temperature fluctuation | ±0.5 °C |
| Temperature resolution | 0.1 °C |
| Electrical supply | 220 V / 50 Hz |
| Model | Chamber volume (L) | Heating power | Chamber dimensions (mm) |
|---|
| PT-WBA-016 | 12 | 600 W | 420 × 180 × 180 |
| PT-WBA-017 | 34 | 1500 W | 600 × 300 × 190 |
Standard Configuration
Water bath with one-piece stainless steel chamber, stainless steel cover with covered handle, temperature controller, water-level float and quick-connect power cord.
Optional Accessories
Optional accessories are not specified. Confirm vessel supports and the final delivery list when requesting a quote.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, vessel dimensions and working temperature. Confirm the required electrical supply and configuration before ordering.
