Thermostatic water baths for laboratory heating, with three chamber sizes and automatic heating shutoff at low water level.
- One-piece stainless steel chamber
- Temperature display correction
- Float-operated low-water protection

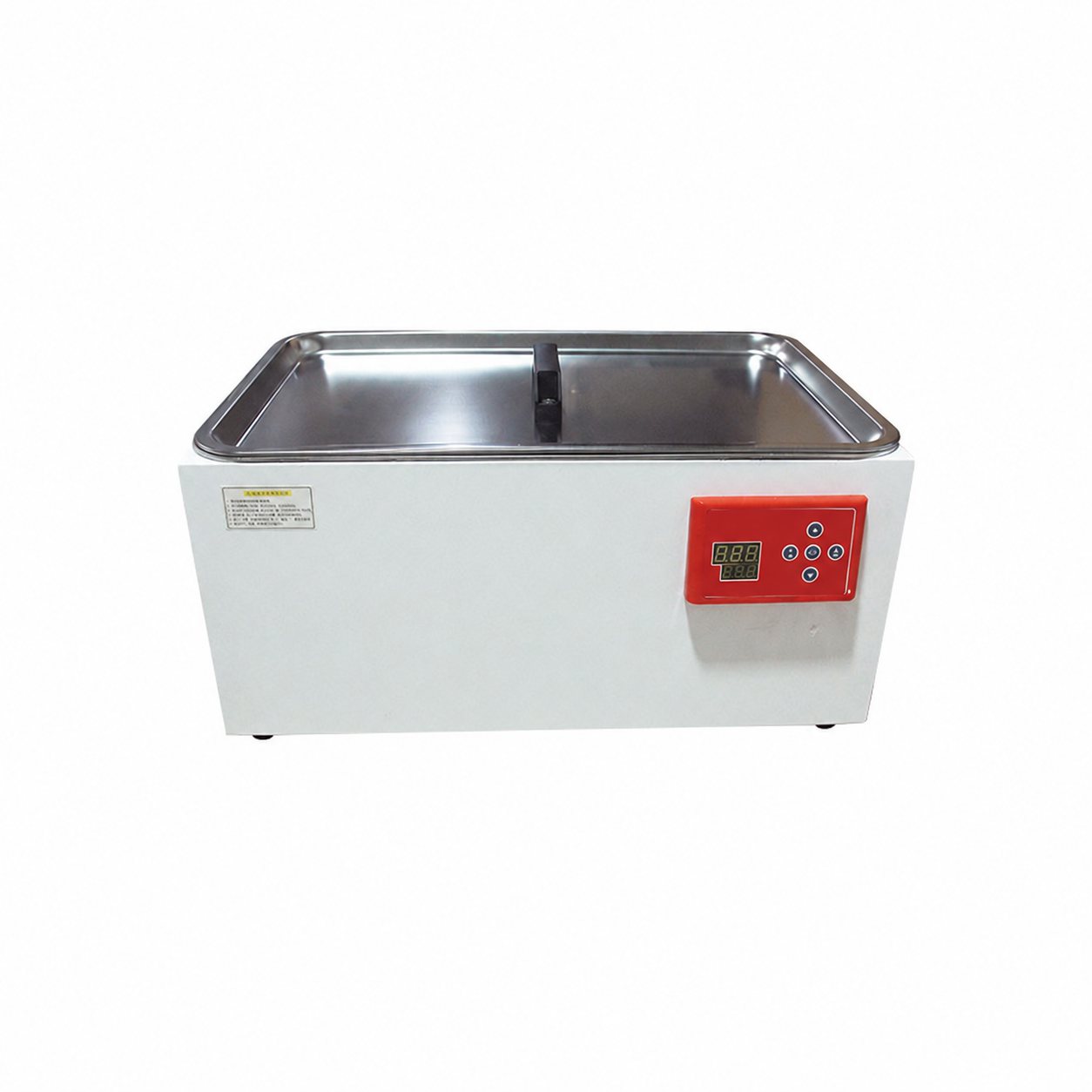

Image shows PT-WBA-010. Other models differ in dimensions.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +5 to 100 °C |
| Temperature fluctuation | ±0.2 °C |
| Electrical supply | 220 V / 50 Hz |
| Model | Heating power | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-WBA-010 | 800 W | 350 × 325 × 200 | 450 × 345 × 230 |
| PT-WBA-011 | 1500 W | 500 × 350 × 200 | 630 × 395 × 230 |
| PT-WBA-012 | 2000 W | 600 × 400 × 200 | 660 × 540 × 230 |
Standard Configuration
Water bath with stainless steel chamber, coated steel housing, temperature controller, water-level float and quick-connect power cord.
Optional Accessories
Optional accessories are not specified. Confirm vessel supports and the final delivery list when requesting a quote.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, vessel dimensions and working temperature. Confirm the required electrical supply and configuration before ordering.
