Temperature-controlled water baths with internal circulation and external connections for heating laboratory vessels. Two controller variants cover different temperature accuracy requirements.
- Internal circulation and external heating connections
- Temperature indication correction
- Pump flow ≥8 L/min

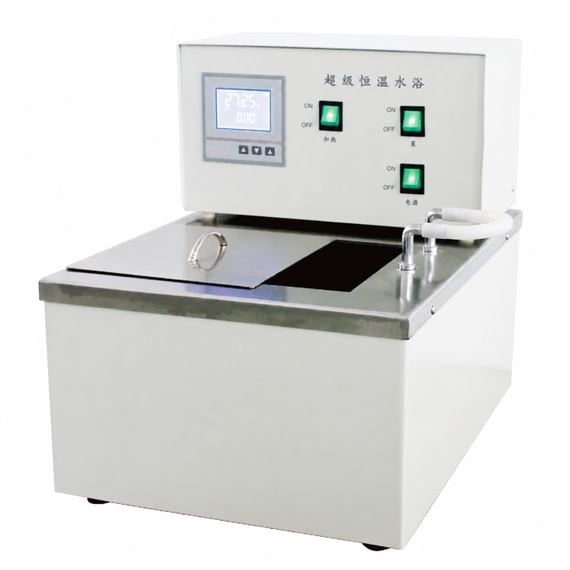

Image shows PT-WBA-018 with LCD controller. PT-WBA-014 uses a dual-window LED display.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient to 100 °C |
| Pump flow | ≥8 L/min |
| External ports: OD / ID (mm) | 10 / 8 |
| Electrical supply | 220 V / 50 Hz |
| Heating power | 1000 W |
| Opening (mm) | 200 × 180 |
| Chamber dimensions (mm) | 400 × 280 × 180 |
| External dimensions (mm) | 460 × 400 × 350 |
| Net / gross mass (kg) | 14 / 16.5 |
| Parameter | PT-WBA-014 | PT-WBA-018 |
|---|
| Temperature accuracy | ±0.1 °C | ±0.01 °C |
| Temperature fluctuation | ±0.1 °C | ±0.02 °C |
| Temperature uniformity | ±0.1 °C | ±0.02 °C |
| Display | LED | LCD |
Standard Configuration
Bath with stainless steel chamber, temperature controller, insulated housing and circulation pump. Display type depends on the model.
Optional Accessories
Heating fluid, external hoses and vessel accessories are not identified as included. Confirm compatible fluid, tubing and the final delivery list when requesting a quote.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, operating temperature, external vessel and required electrical supply. Confirm fluid suitability, tubing compatibility and operating limits before ordering.
