An eight-channel acquisition module with selectable temperature, pressure or humidity sensors for wired validation and real-time data review.
- Eight channels per module
- Selectable temperature, pressure or humidity probes
- Real-time data and curve viewing

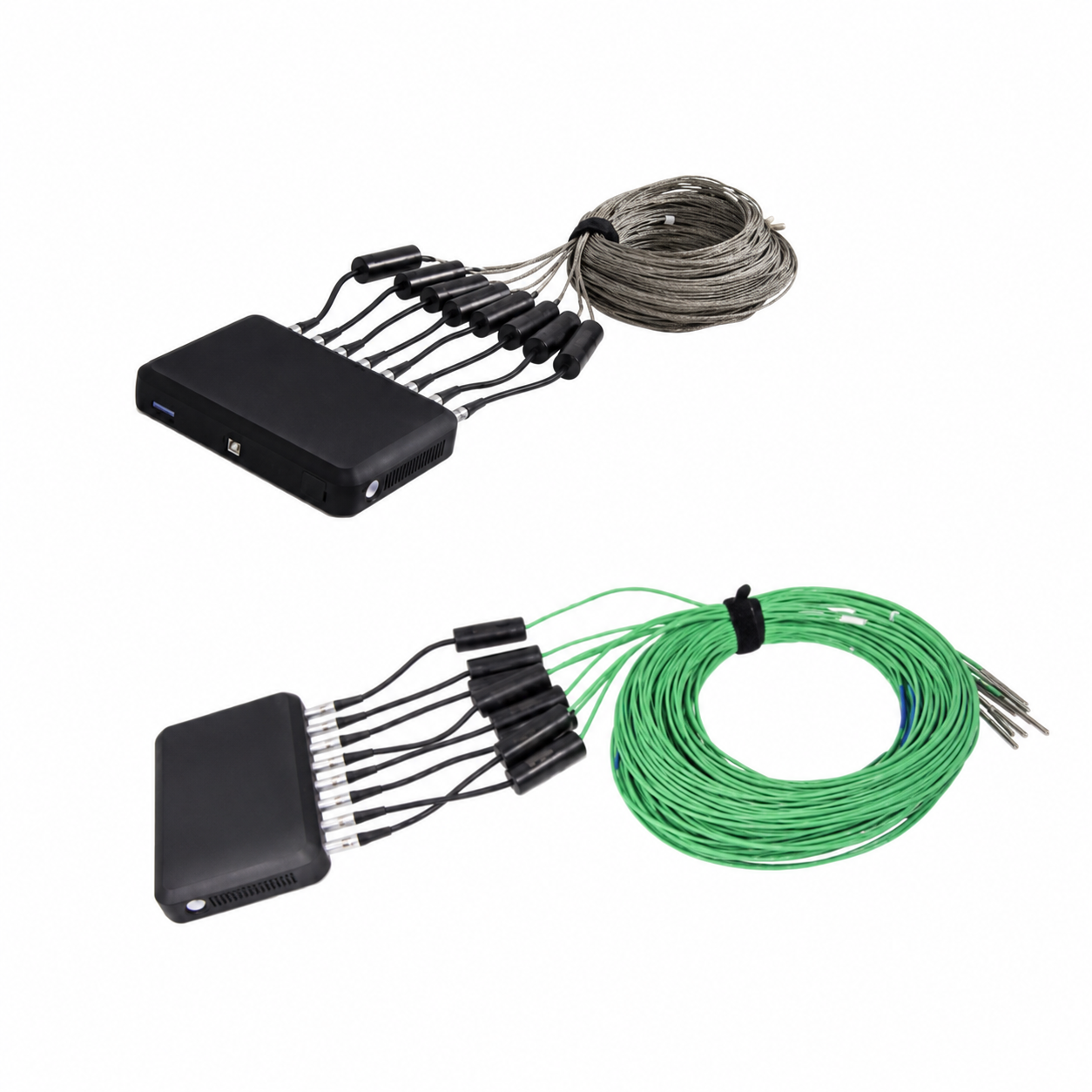

Representative system components. The image does not establish the supplied number of modules, probes, loggers or docking stations; confirm the quoted delivery list.
Technical Information
| Model | Sensor / connection | Measurement range |
|---|
| PT-VAL-003 | Temperature / four-wire platinum RTD | Moist heat: -100–200 °C; dry heat: -100–400 °C |
| PT-VAL-007 | Pressure | 0–600 kPa absolute |
| PT-VAL-008 | Humidity | 0–99% RH |
| Model | Sensor accuracy | Display resolution |
|---|
| PT-VAL-003 | ±0.1 °C | 0.01 °C |
| PT-VAL-007 | ±1.5 kPa (FS) | 0.01 kPa |
| PT-VAL-008 | ±2% RH (FS) | 0.01% RH |
Standard Configuration
Eight channels per acquisition module, plug-in sensor connections, real-time data and curves, joint programming of multiple nodes and support for mixed wired/wireless validation. The selected sensor determines the measurement range and accuracy.
Optional Accessories
Confirm logger/probe quantities, workstation or acquisition modules, cables, software licence, supported computer/OS and calibration scope in the quotation. No computer, calibration service or regulatory certification is implied.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, measurement points, temperature/humidity/pressure range, probe arrangement and recording interval. Confirm sensor accuracy conditions and the complete delivery list.
