Self-contained validation loggers for temperature, temperature/humidity or pressure, programmed and read through a ten-position contact docking station connected by USB.
- Model-specific temperature, humidity or pressure sensing
- Ten-position contact programming and reading
- USB docking station with contact-status LEDs

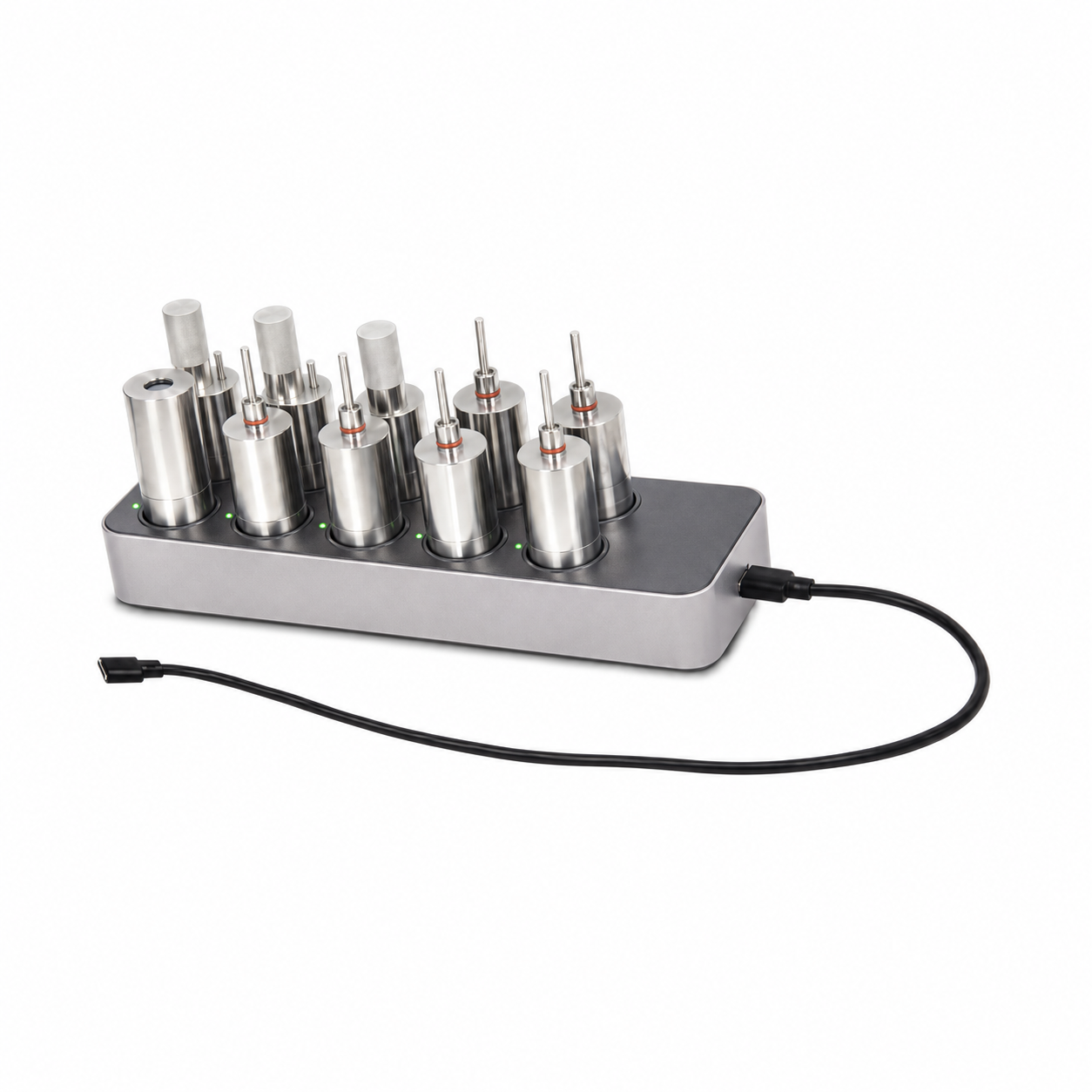

Representative system components. The image does not establish the supplied number of modules, probes, loggers or docking stations; confirm the quoted delivery list.
Technical Information
| Parameter | Value |
|---|
| Recording interval | 1 s – 18 h |
| Model | Probe type | Measurement range |
|---|
| PT-VAL-004 | Rigid temperature probe | -80–150 °C |
| PT-VAL-009 | Rigid temperature probe | -50–150 °C |
| PT-VAL-010 | Flexible temperature probe | -50–150 °C |
| PT-VAL-011 | Flexible temperature probe | -85–150 °C |
| PT-VAL-012 | Temperature / humidity | -40–125 °C / 0–100% RH |
| PT-VAL-013 | Pressure | 0–600 kPa |
| Model | Sensor accuracy | Display resolution |
|---|
| PT-VAL-004 | ±0.1 °C | 0.01 °C |
| PT-VAL-009 | ±0.1 °C | 0.01 °C |
| PT-VAL-010 | ±0.1 °C | 0.01 °C |
| PT-VAL-011 | ±0.1 °C | 0.01 °C |
| PT-VAL-012 | ±0.1 °C / ±2% RH | 0.01 °C / 0.01% RH |
| PT-VAL-013 | ±0.1% FS | 0.01 kPa |
Standard Configuration
Autonomous recording with model-specific sensors and memory. A ten-position docking station provides contact programming/data reading, contact-status LEDs and a USB computer connection. No live radio link is specified.
Optional Accessories
Confirm logger/probe quantities, workstation or acquisition modules, cables, software licence, supported computer/OS and calibration scope in the quotation. No computer, calibration service or regulatory certification is implied.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, measurement points, temperature/humidity/pressure range, probe arrangement and recording interval. Confirm sensor accuracy conditions and the complete delivery list.
