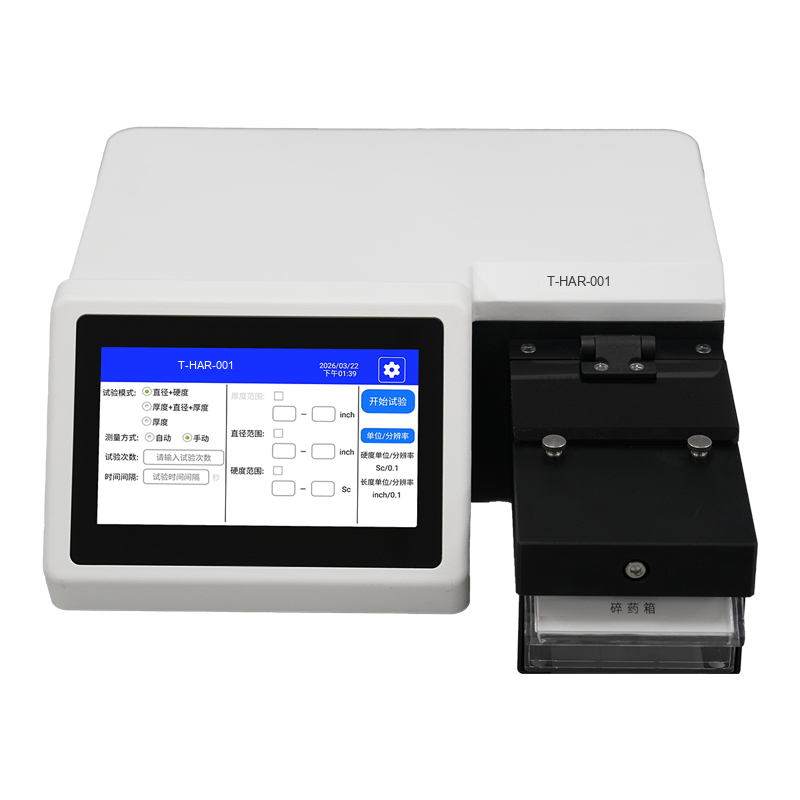

T-HAR-001 measures tablet breaking force, thickness and diameter with a 7-inch display and an Android-based control system. It supports manual or automatic continuous measurement modes, statistics and recorded results; the specified sample count is up to 500 tablets.
Key features
- Breaking-force and dimensional measurements in one instrument
- Statistical analysis, result recording and printing functions
- Calendar clock for test and calibration timestamps
- Parameter calibration and fault self-diagnostics
- USB and RS232 interfaces
Technical Information
| Breaking-force range | 10–400 N |
|---|
| Force resolution options | 0.1 / 0.01 / 0.001 N |
|---|
| Specified force accuracy | ±(0.1% + 1 N) |
|---|
| Diameter range | 2–25 mm |
|---|
| Thickness range | 2–12 mm |
|---|
| Length resolution options | 0.1 / 0.01 / 0.001 mm |
|---|
| Dimensional accuracy | ±0.03 mm |
|---|
| Maximum specified sample count | 500 |
|---|
| Display | 7 in |
|---|
| Interfaces | USB / RS232 |
|---|
Download the detailed product datasheet for full specifications and configuration information.
Standard Configuration
Instrument with breaking-force and dimensional measurement functions. Confirm the supplied measuring fixtures, calibration items, printer, interface cables and full packing list in the quotation.
Optional Accessories
No separate optional-accessory list is documented. Specify calibration and qualification-document requirements separately; availability and scope require confirmation.
Selection / Ordering Information
Specify tablet geometry, force range, throughput and reporting needs. The percentage basis in ±(0.1% + 1 N) is not defined; confirm how accuracy is calculated. Selectable display resolution does not establish equivalent measurement accuracy. Continuous measurement does not establish an automatic feeder. Confirm power supply, printer delivery, software language and export functions. Audit-trail or electronic-signature compliance is not established.
Downloads
Download the detailed product datasheet for full specifications and configuration information.
Download PDF — English · PDF
