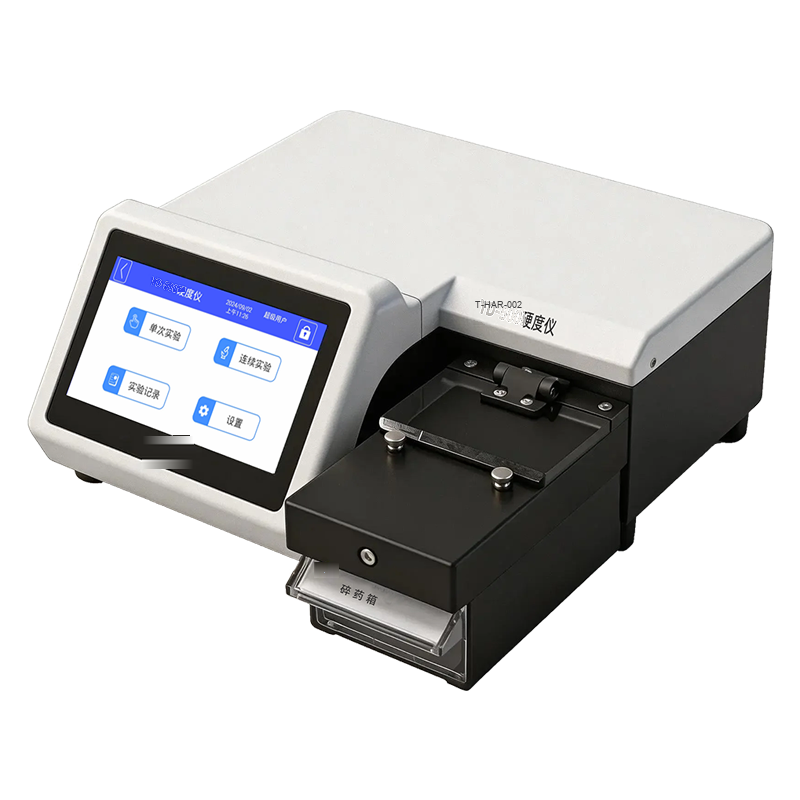

Combines tablet breaking-force, diameter and thickness measurements with configurable test modes and continuous operation. The Android-based seven-inch interface supports stored methods and electronic test records.
Key features
- Hardness + diameter, thickness + hardness + diameter, or thickness mode
- Manual single, manual continuous or automatic continuous measurement
- Stored test methods, statistics and dated reports
- Calibration functions, fault prompts and USB data interface
Technical Information
| Breaking-force range | 10–900 N |
|---|
| Breaking-force accuracy | ±(0.1% + 1 N) |
|---|
| Diameter range | 2.0–25.0 mm |
|---|
| Thickness range | 2.0–13.0 mm |
|---|
| Diameter / thickness accuracy | ±0.03 mm |
|---|
| Selectable display resolution | 0.1 / 0.01 / 0.001 |
|---|
| Automatic continuous count | 500 |
|---|
| Printer interface | RS232 / DB9 male |
|---|
Download the detailed product datasheet for full specifications and configuration information.
Standard Configuration
Instrument with the documented functions. Confirm all supplied holders, glassware, cables, reagents and consumables in the quotation; unspecified items are not assumed included.
Optional Accessories
No complete separate accessory list is available. Request compatible consumables, calibration items and qualification documents separately, with availability and price confirmed before ordering.
Selection / Ordering Information
Resolution is selectable for each measured quantity and does not establish accuracy. Confirm operating mode, electrical supply, printer and delivered software functions. Qualification documents and qualification services are separate paid options; no regulatory certification is claimed.
Downloads
Download the detailed product datasheet for full specifications and configuration information.
Download PDF — English · PDF
