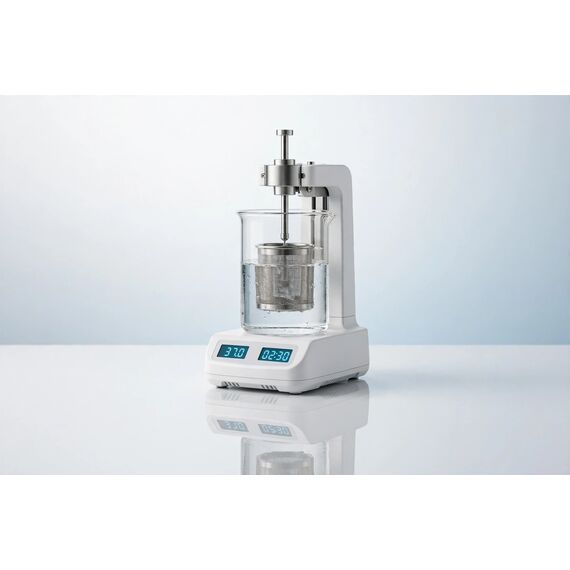

Single-Basket Disintegration Tester

PT-DT1S
Ask a question

PT-DT1S supports 1 basket station for timed tablet and capsule disintegration tests. Controlled bath temperature and a defined reciprocating stroke support repeatable test conditions.

Key features

  • One basket station for a single test group
  • Adjustable 37 °C temperature and 15-minute time presets
  • Temperature correction and overtemperature protection

Technical Information

Basket stations1
Basket movement frequency30–32 cycles/min
Stroke55 ± 1 mm
Bath operating temperatureAmbient to 40 °C
Temperature resolution0.1 °C
Temperature control accuracy±0.3 °C
Timer range≤ 10 h
Standard mesh aperture2 mm
Power consumption520 W
Dimensions260 × 300 × 450 mm
Approximate weight10 kg

Standard Configuration

Instrument with 1 basket station and 2 mm mesh as the stated standard. Confirm beakers, discs and the full accessory list against the selected method and quotation.

Optional Accessories

Optional mesh apertures: 1 / 0.71 / 0.425 mm. Confirm the screen required by the method.

Applications

Laboratory disintegration testing of tablets and capsules. Match the basket, screen, medium, temperature and endpoint procedure to the applicable method.

Selection / Ordering Information

Specify basket count, dosage form, mesh aperture, test duration and documentation requirements. Confirm power supply and required accessories. Temperature setpoints below ambient do not establish active cooling capability.

Downloads

Download the detailed product datasheet for full specifications and configuration information.

Download PDF - English · PDF

PRECETTA-PT-DT1S-en.pdf (PRECETTA-PT-DT1S-en.pdf, 440 Kb) [Download]

PRECETTA-PT-DT1S-es.pdf (PRECETTA-PT-DT1S-es.pdf, 441 Kb) [Download]

PRECETTA-PT-DT1S-pt.pdf (PRECETTA-PT-DT1S-pt.pdf, 442 Kb) [Download]

PRECETTA-PT-DT1S-fr.pdf (PRECETTA-PT-DT1S-fr.pdf, 441 Kb) [Download]

PRECETTA-PT-DT1S-ar.pdf (PRECETTA-PT-DT1S-ar.pdf, 459 Kb) [Download]
