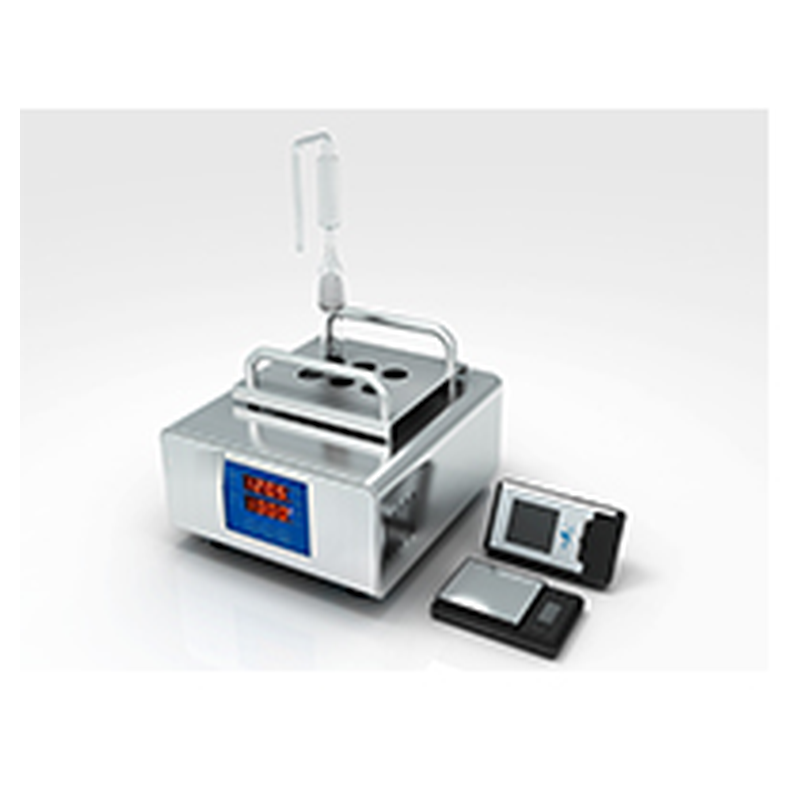

Combines miniature distillation with electrochemical measurement of sulfur dioxide residues. A portable heater and disposable reagents support screening of prepared samples; method suitability must be established for the sample matrix.
Key features
- Miniature distillation sample preparation
- Electrochemical residue measurement
- Timed heater operation
- Disposable reagent strips
Technical Information
| Measurement range | 20–1500 ppm |
|---|
| Sample mass | 2 g |
|---|
| Temperature range | 30–120 °C |
|---|
| Measurement time | 17 s |
|---|
| Electrical supply | 220 ±22 V / 50 ±1 Hz |
|---|
| Power consumption | <400 W |
|---|
| Dimensions | 582 × 298 × 225 mm |
|---|
| Weight | 9.5 kg |
|---|
| Measurement accuracy | ±20% |
|---|
| Distillation: screening / laboratory | 10 / 18 min |
|---|
Download the detailed product datasheet for full specifications and configuration information.
Standard Configuration
One heater, six condensers, twelve distillation tubes and one box of fifty reagent strips. Confirm the remaining consumables and tools in the delivery list.
Optional Accessories
Calibration materials, replacement consumables and qualification documents are separately confirmed and quoted where available.
Selection / Ordering Information
Confirm sample matrix, residue limit, reagent shelf life and distillation procedure. Screening results require an appropriate confirmatory method before regulatory decisions; the kit does not establish certified compliance.
Downloads
Download the detailed product datasheet for full specifications and configuration information.
Download PDF — English · PDF
