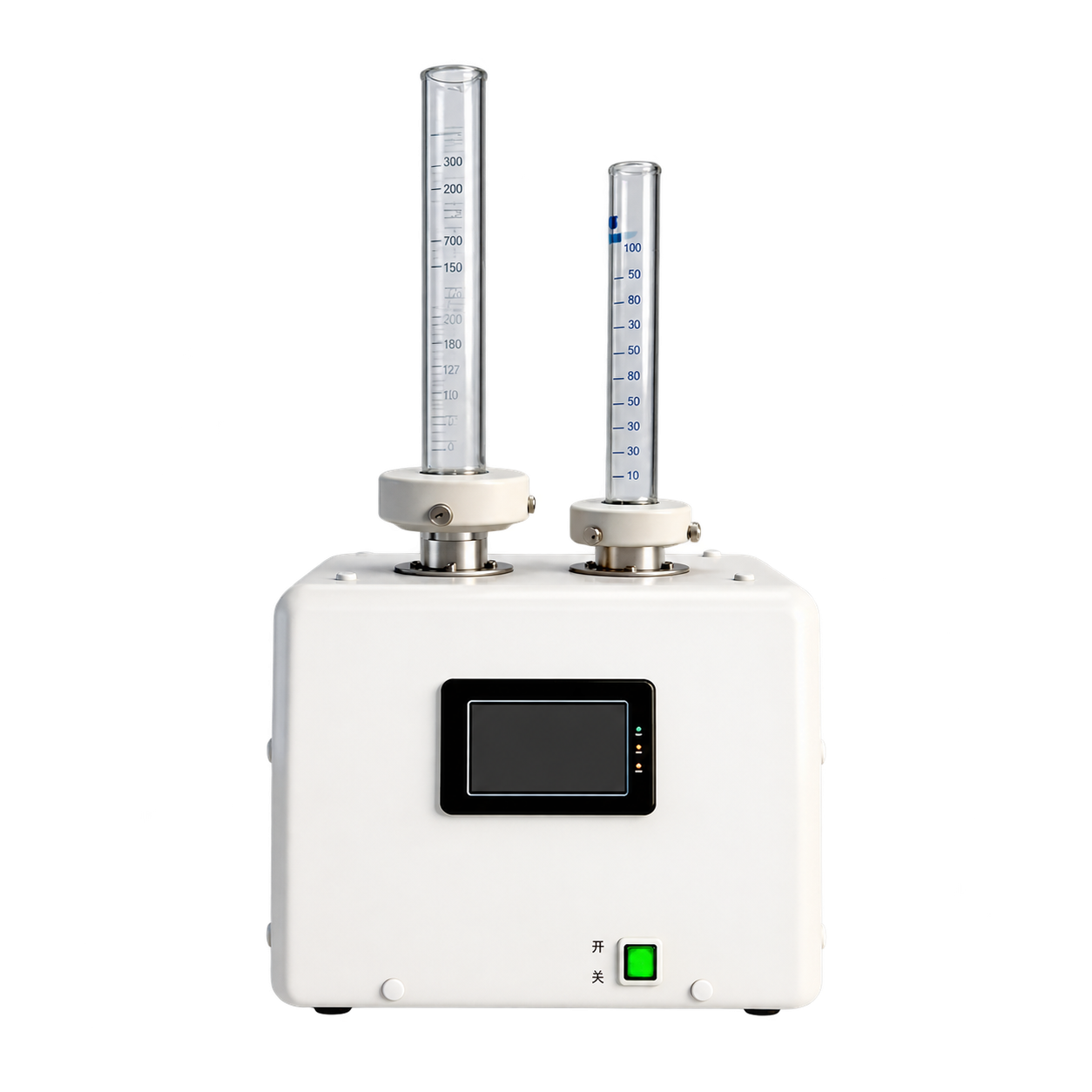

T-TAP-001 — Measures the tapped density of powders with two cylinder positions and three selectable test methods.
Key features
- Touchscreen selection of test method and tapping parameters
- Vertical tapping with sample rotation
- Density calculation from three mass and volume entries, including an average
Core specifications
| Cylinder positions | 2 |
|---|
| Tapping frequency: method 1 / 2 / 3 | 300 ±1 / 250 ±1 / 55 ±1 /min |
|---|
| Method 1 stroke | 14 ±2 mm |
|---|
| Count range | 0–99999 |
|---|
| Supply configurations | AC 220 V ±10%, 50 Hz ±2%; AC 110 V ±10%, 60 Hz ±2% |
|---|
Download the detailed product datasheet for full specifications and configuration information.
Standard Configuration
Two-position instrument with touchscreen. Confirm cylinder sizes and the complete delivery list.
Optional Accessories
Printer is optional. Qualification documents and services require separate scope and quotation.
Selection / Ordering Information
Specify powder properties, test method, cylinder size and mains supply. Method 2 stroke tolerance requires confirmation before ordering.
Downloads
Download the detailed product datasheet for full specifications and configuration information.
Download PDF — English · PDF
