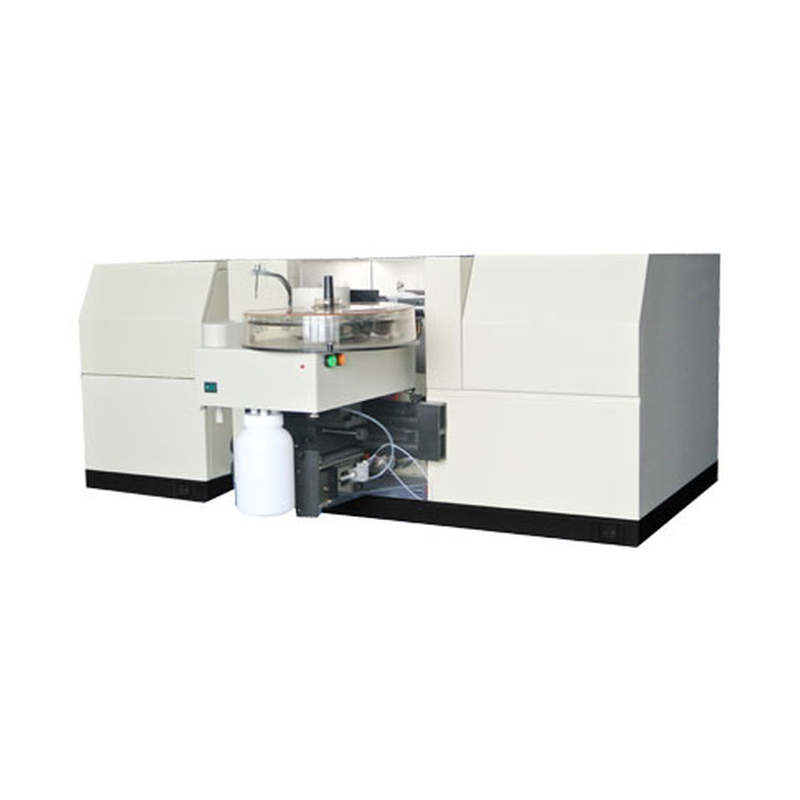

PC-controlled elemental analysis with flame and graphite furnace atomization, six-lamp switching and online graphite-tube monitoring. Select element lamps and sample preparation for the required detection limits.
Technical Information
| Model | PT-AAS-001 |
|---|
| Wavelength range | 190–900 nm |
|---|
| Wavelength accuracy | ±0.20 nm |
|---|
| Wavelength repeatability | 0.10 nm |
|---|
| Spectral bandwidth | 0.1 / 0.2 / 0.4 / 0.7 / 1.0 / 2.0 nm |
|---|
| Lamp positions | 6, automatic switching |
|---|
| Optical resolution test | Mn 279.5 / 279.8 nm at 0.2 nm bandwidth |
|---|
| Baseline drift, static | 0.002 Abs/30 min (Cu) |
|---|
Standard configuration
Main unit with flame control and six-lamp changer; graphite furnace system and online monitoring; five element lamps and five standard solutions selected for the application; oil-free air compressor, control software and computer. Detailed accessory list is included in this PDF.
Optional configuration
Hydride-generation configuration and application-specific accessories require confirmation. Confirm whether the 85-position autosampler is included in the quoted package.
Downloads
Download the language-specific PDF for complete specifications, configuration and application guidance.
Download product PDF
Selection and ordering
Specify elements, concentrations, matrices and atomization mode. Confirm gas, extraction, cooling water and electrical services. Listed graphite dimensions and mass describe the subsystem, not the full installation.
