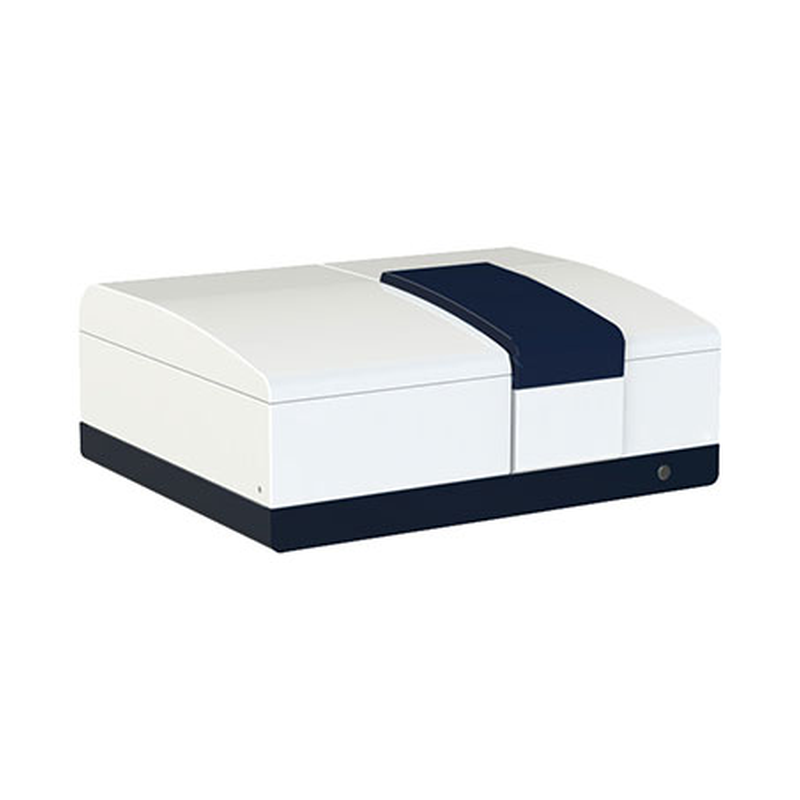

Computer-controlled infrared scanning for identification and material analysis. Direct-ratio recording and a dual-blaze grating cover the stated infrared wavenumber range.
Technical Information
| Model | PT-IRS-001 |
|---|
| Wavenumber range | 4000–400 cm⁻¹ |
|---|
| Wavenumber accuracy | ±4 cm⁻¹ (4000–2000 cm⁻¹); ±2 cm⁻¹ (2000–400 cm⁻¹) |
|---|
| Wavenumber repeatability | ≤2 cm⁻¹ (4000–2000 cm⁻¹); ≤1 cm⁻¹ (2000–400 cm⁻¹) |
|---|
| Resolution | 1.5 cm⁻¹ (~1000 cm⁻¹) |
|---|
| Transmittance accuracy | ±0.2%T (noise excluded) |
|---|
| Transmittance repeatability | ≤0.5%T (1000–930 cm⁻¹) |
|---|
| Baseline flatness | ≤±2%T (I₀) |
|---|
Standard configuration
Instrument and control/data software; powder pellet press, agate mortar, pellet die, spectroscopy-grade KBr, polystyrene reference plate, spoon/tweezers tools and demountable liquid cell with windows, one set each.
Optional configuration
Other accessories are not specified. Confirm the computer supply and any additional sampling accessories.
Downloads
Download the language-specific PDF for complete specifications, configuration and application guidance.
Download product PDF
Selection and ordering
Specify solid or liquid sampling requirements. Control software is described in Chinese; confirm language and Windows compatibility before ordering.
