Portable electrically heated steam sterilizers with 18 L or 24 L chambers, temperature/time knobs and a pressure gauge.
- Butterfly-nut lid closure and insulated grips
- Temperature and time knob settings
- Low-water heater cutoff and completion alarm

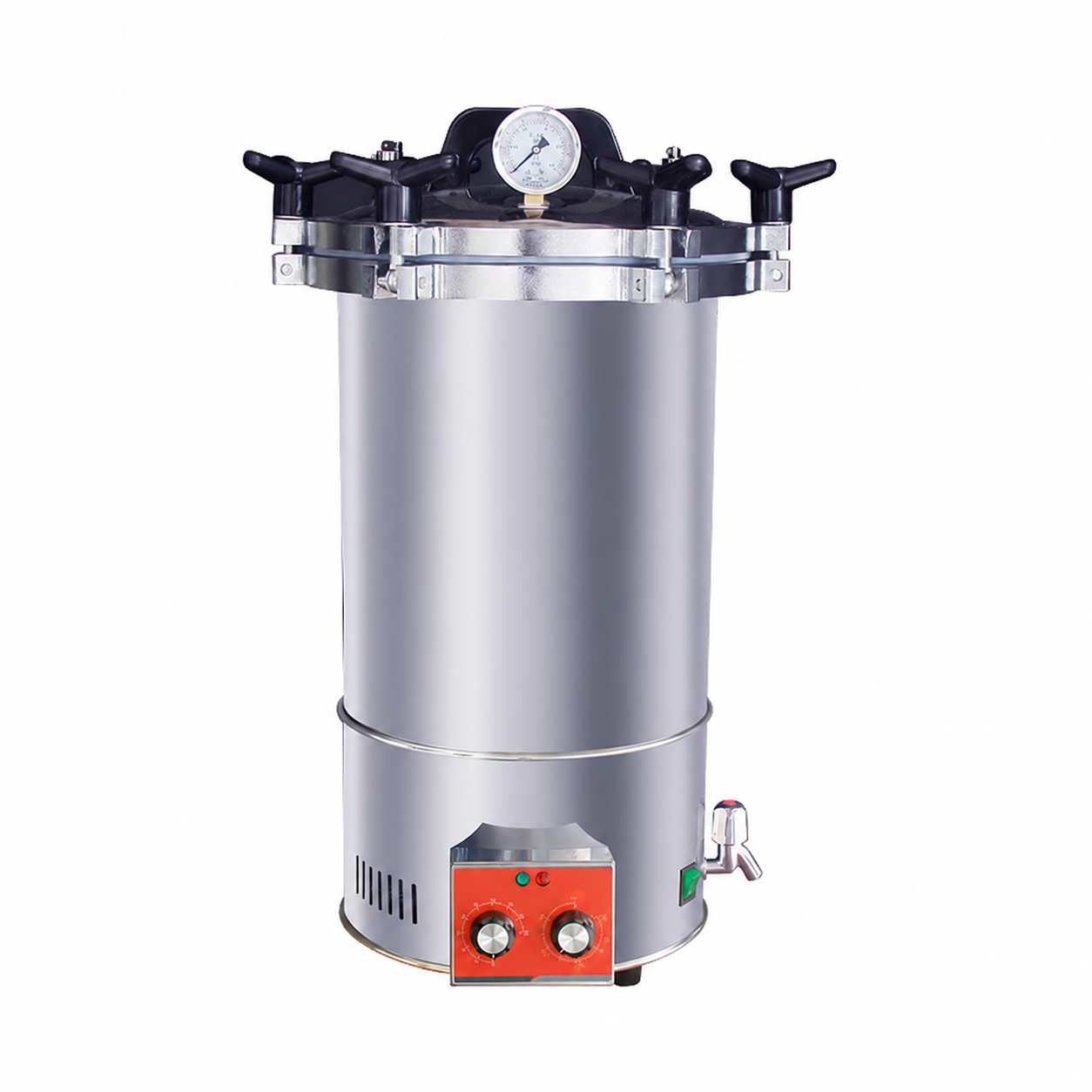

Representative product view. Chamber size and supplied accessories vary by model.
Technical Information
| Parameter | Value |
|---|
| Maximum working temperature | 126 °C |
| Temperature resolution | 0.1 °C |
| Sterilization time | 0–90 min |
| Working pressure | 0.142 MPa |
| Design pressure | 0.165 MPa |
| Electrical supply | 220 V |
| Model | Chamber volume (L) | Input power (kW) |
|---|
| PT-AUT-027 | 18 | 2 |
| PT-AUT-028 | 24 | 2 |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-AUT-027 | Ø295 × 320 | Ø350 × 570 |
| PT-AUT-028 | Ø295 × 420 | Ø350 × 670 |
Standard Configuration
SUS304 stainless steel housing, electrically heated chamber, butterfly-nut closure with insulation, temperature and timer knobs, pressure gauge, safety relief valve, manual vent valve, low-water float protection, audible completion alarm and automatic heater cutoff.
Optional Accessories
Confirm basket delivery, electrical frequency and the required operating temperature before ordering. Additional accessories are subject to quotation.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, load or sample type, operating temperature and required basket configuration. Confirm electrical supply, accessories and final delivery before ordering.
