60–110 L handwheel-lid autoclaves with 105–135 °C sterilization, vacuum drying, 7 preset and 7 custom programs, and standard condenser cooling.
- Six selectable air-purge and pressure-release levels
- Three operator permission levels
- Standard cooling and two RS-485 interfaces

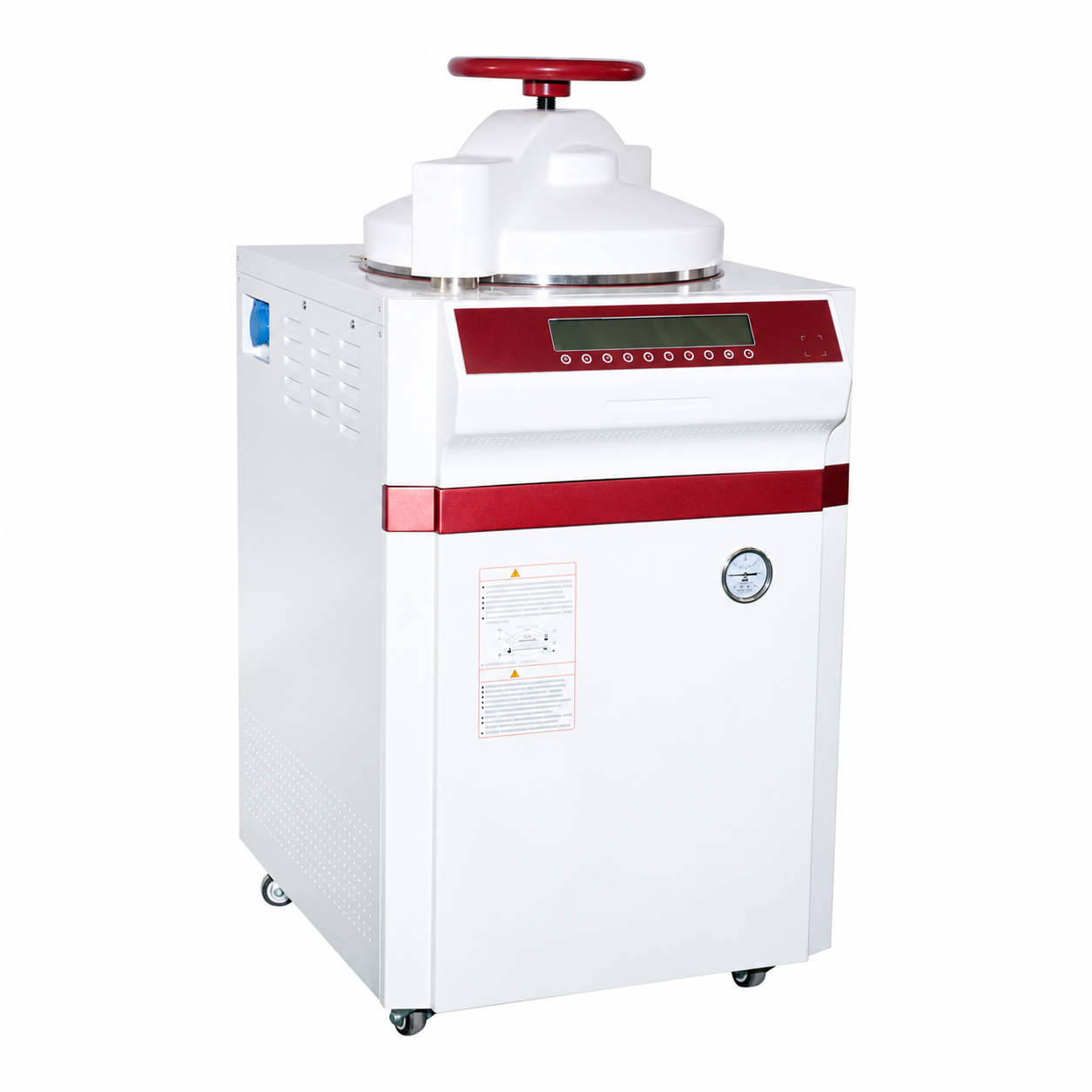

Representative exterior view. Chamber dimensions, cabinet height and supplied baskets vary by model.
Technical Information
| Parameter | Value |
|---|
| Temperature range | 105–135 °C |
| Temperature resolution | 0.1 °C |
| Temperature uniformity | ≤1 °C |
| Working pressure | 0.22 MPa |
| Design pressure | 0.38 MPa |
| Sterilization timer | 0–5999 min |
| Model | Chamber volume (L) | Input power (W) |
|---|
| PT-AUT-022 | 60 | 4800 |
| PT-AUT-023 | 85 | 5200 |
| PT-AUT-024 | 110 | 5400 |
Standard Configuration
Capacitive control display, handwheel lid, mechanical pressure lock and lid self-check, six air-purge levels, six pressure-release levels, three permission levels, electric drainage, condenser and air cooling, one waterproof auxiliary socket, two RS-485 interfaces and a G1/2A test port. 7 preset and 7 custom programs; vacuum drying, melting and holding functions are standard.
Optional Accessories
0.2 µm exhaust filter, dedicated printer, sample temperature sensor, validation adapter and basket-bottom tray are optional. F0 printing requires the appropriate printer and sample-probe configuration. Software and validation services are not standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, load or sample type, operating temperature and required basket configuration. Confirm electrical supply, accessories and final delivery before ordering.
