29–100 L vertical steam sterilizers with a handwheel lid, digital control and listed maximum working temperature of 135 °C.
- Handwheel lid and pressure safety interlock
- Low-water, overtemperature and overpressure protection
- Digital temperature and timer controls

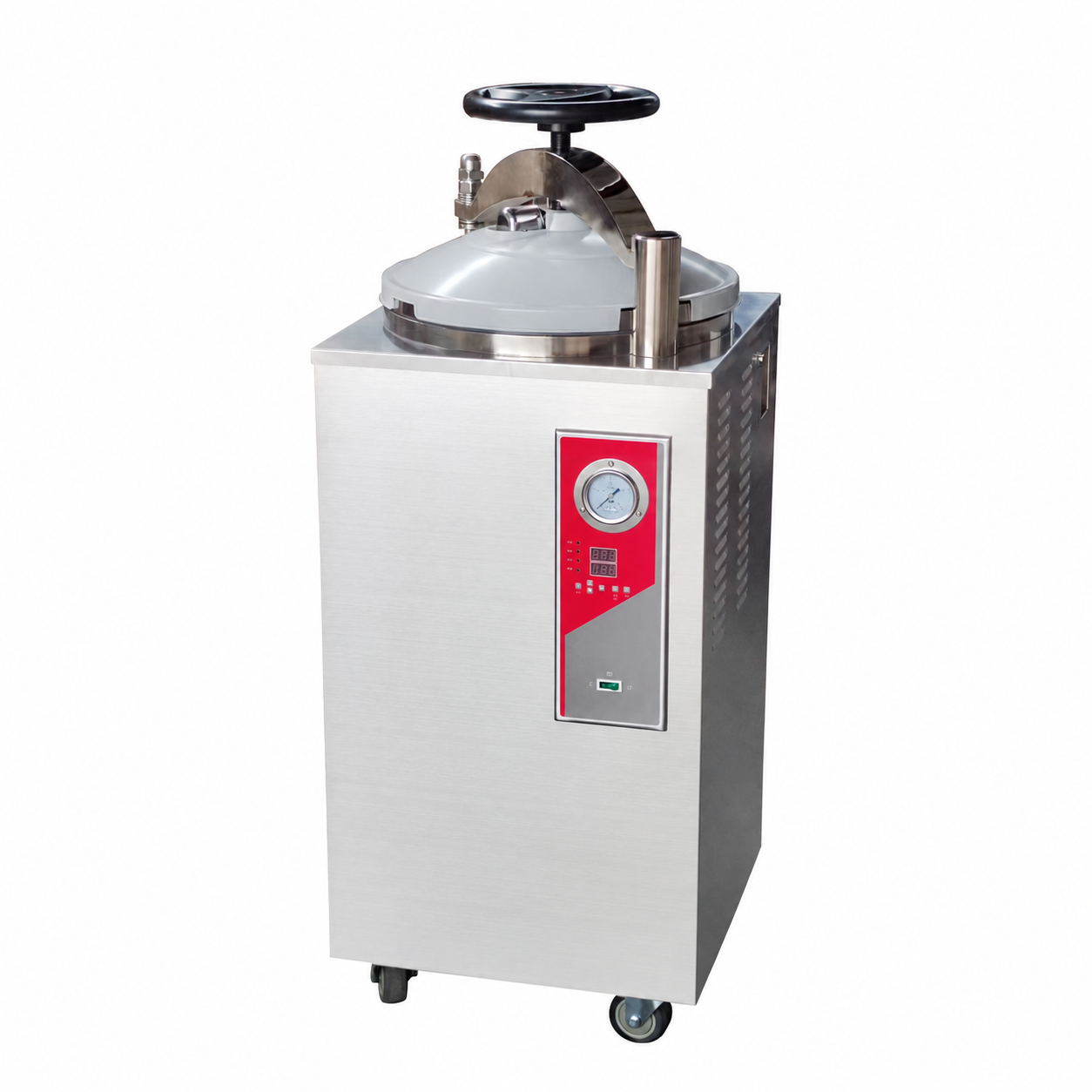

Representative exterior view. Cabinet proportions, chamber dimensions and supplied basket arrangement vary by model.
Technical Information
| Parameter | Value |
|---|
| Maximum working temperature | 135 °C |
| Temperature resolution | 1 °C |
| Maximum working pressure | 0.22 MPa |
| Design pressure | 0.25 MPa |
| Electrical supply | 220 V |
| Timer range | 4–120 min |
| Model | Chamber volume (L) | Input power (W) |
|---|
| PT-AUT-002 | 50 | 3200 |
| PT-AUT-003 | 75 | 3500 |
| PT-AUT-004 | 100 | 3500 |
| PT-AUT-005 | 29 | 2300 |
Standard Configuration
SUS304 construction, handwheel lid, microcomputer control, self-expanding seal, automatic cold-air discharge, low-water control, overtemperature protection, pressure relief, pressure safety interlock and end-of-cycle audible alarm.
Optional Accessories
Confirm additional containers and accessories in the quotation. Printer, software and validation services are not listed as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, load or sample type, operating temperature and required basket configuration. Confirm electrical supply, accessories and final delivery before ordering.
