60 L and 85 L top-loading autoclaves with a flip-up lid, touchscreen control, 105–135 °C sterilization settings and a cooling system.
- 9 sterilization and 3 melting/holding programs
- Mechanical self-lock and electronic lid interlock
- Standard G1/2A validation port

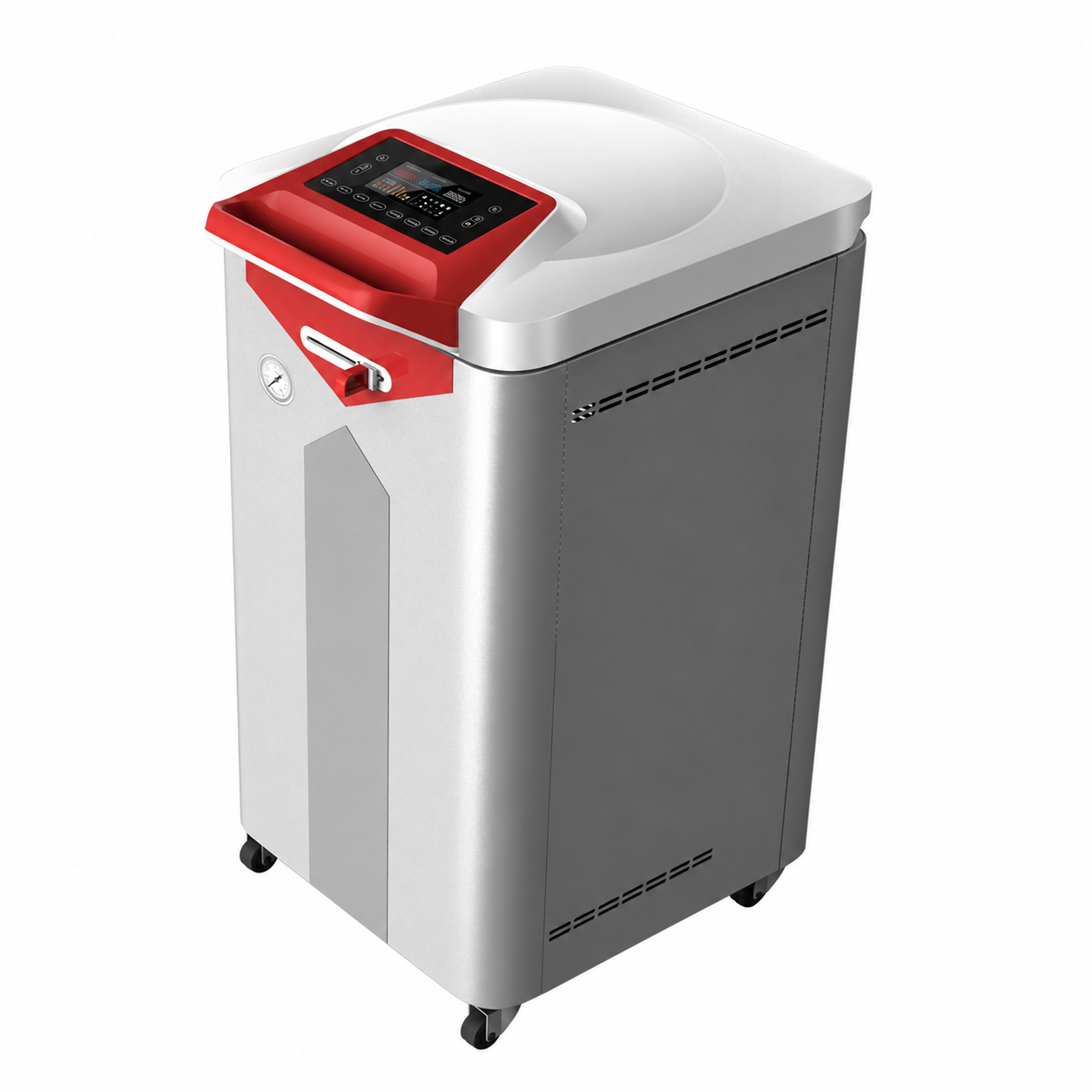

Representative exterior view. Capacity, dimensions and supplied basket arrangement are specified by model.
Technical Information
| Parameter | Value |
|---|
| Temperature range | 105–135 °C |
| Temperature uniformity | ≤1 °C |
| Working pressure | 0.212 MPa |
| Design pressure | 0.28 MPa |
| Timer range | 0–5999 min |
| Melting temperature | 50–100 °C |
| Melting time | 0–600 min |
| Holding temperature | 40–60 °C |
| Holding time | 24 h |
| Electrical supply | AC 220 V ±22 V / 50 Hz ±1 Hz |
| Model | Chamber volume (L) | Input power (W) | Basket: diameter × height × quantity (mm) |
|---|
| PT-AUT-031 | 60 | 3200 | Ø350 × 225 × 2 |
| PT-AUT-032 | 85 | 3600 | Ø350 × 200 × 3 |
Standard Configuration
Touchscreen, 9 sterilization plus 3 melting/holding programs, password management, three-point calibration, mechanical and electronic lid protection, dual low-water protection, cooling, six-level positive-pressure air discharge and pressure release, drain control, countdown scheduling and one G1/2A port.
Optional Accessories
Sample temperature probe, biosafety exhaust filter, validation feedthrough and embedded printer are optional. Sample-temperature timing requires the selected probe configuration. Confirm compatibility and final supply; no software compliance or validation service is claimed.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, load or sample type, operating temperature and required basket configuration. Confirm electrical supply, accessories and final delivery before ordering.
