A 51 L orbital shaking incubator with a side-opening observation door, 0–300 rpm speed, a 26 mm orbit and ambient +5 to 60 °C temperature settings.
- Touchscreen with temperature, time and speed settings
- Standard internal lighting and UV lamp
- Door-open stop, gradual motor start and alarm functions

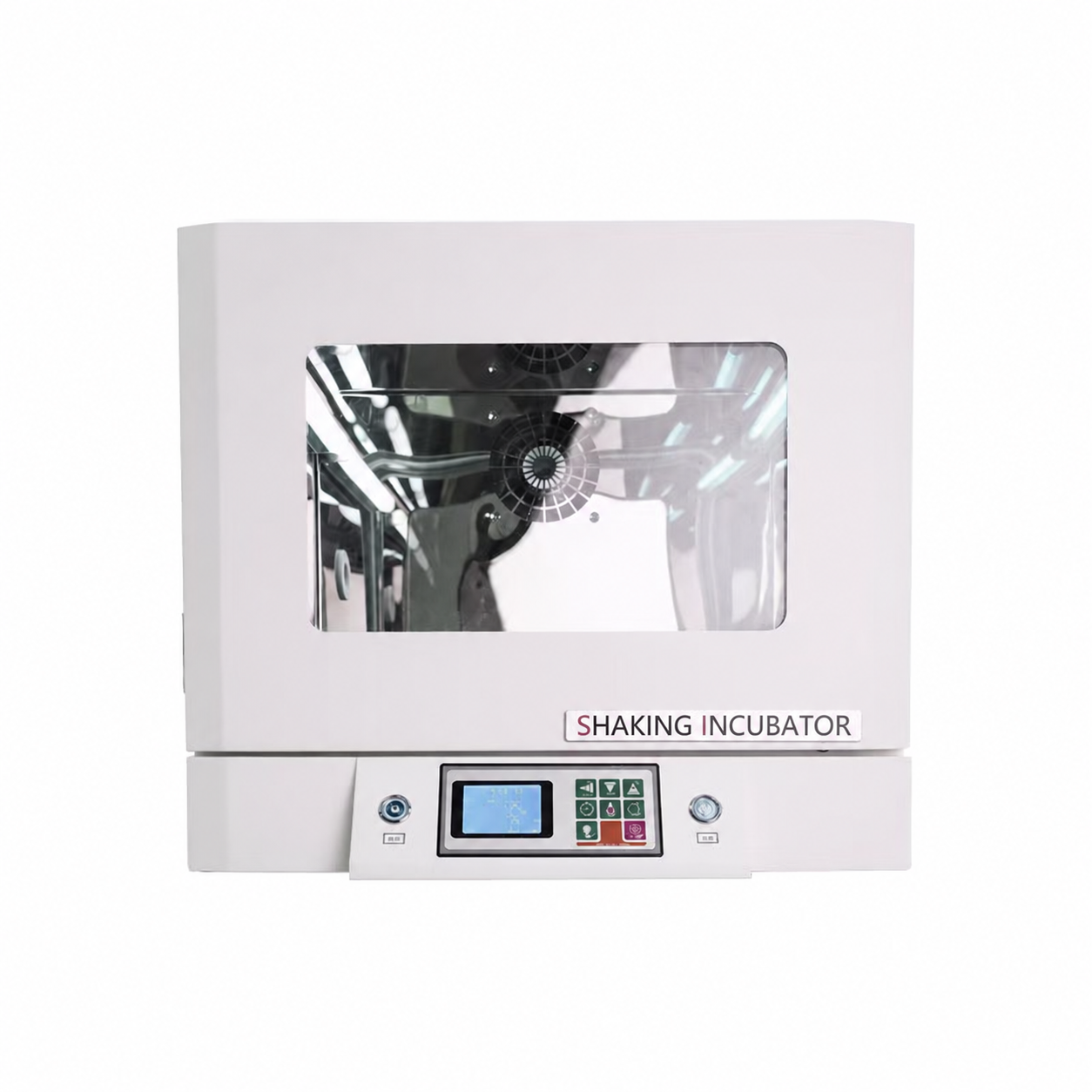

Representative exterior. Select the model, cabinet quantity and holder or shelf configuration from the specifications; the photograph does not define the complete delivery.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +5 to 60 °C (at 25 °C ambient) |
| Temperature control precision | ±0.1 °C |
| Temperature fluctuation | ±0.5 °C (37 °C) |
| Temperature uniformity at 37 °C | ±1 °C |
| Orbital speed | 0–300 rpm |
| Speed accuracy | ±1 rpm |
| Orbit diameter | 26 mm |
| Timer range | 0–9999 min / h |
| Electrical supply | AC 220 V ±22 V / 50 Hz |
| Model | Chamber volume (L) | Input power (W) |
|---|
| PT-SHK-054 | 51 | 600 |
Standard Configuration
One 51 L cabinet with a side-opening double-glazed door, touchscreen, brushless DC drive, aluminium-alloy platform, internal lighting and UV lamp. Includes gradual start/stop, door-open stop, power-restoration operation, fault diagnosis, delayed door-open alarm and abnormal-temperature alarm. Two cabinets may be stacked; a second cabinet is not included in a single-unit specification. Flask-holder type and glassware supply must be confirmed.
Optional Accessories
Plastic or stainless steel flask holders and other holder formats require selection. The maximum 1000 mL flask count differs with holder material. Software, audit trail and validation services are not specified as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, sample, operating conditions and required configuration. Confirm electrical supply, accessories and the final delivery list before ordering.
