Touchscreen orbital shaking incubators with 4–60 °C settings at 25 °C ambient, 0–300 rpm and programmable cultivation cycles.
- Five programs, 30 segments and 99 cycles
- Standard observation and timed UV lamps
- Historical data and USB export

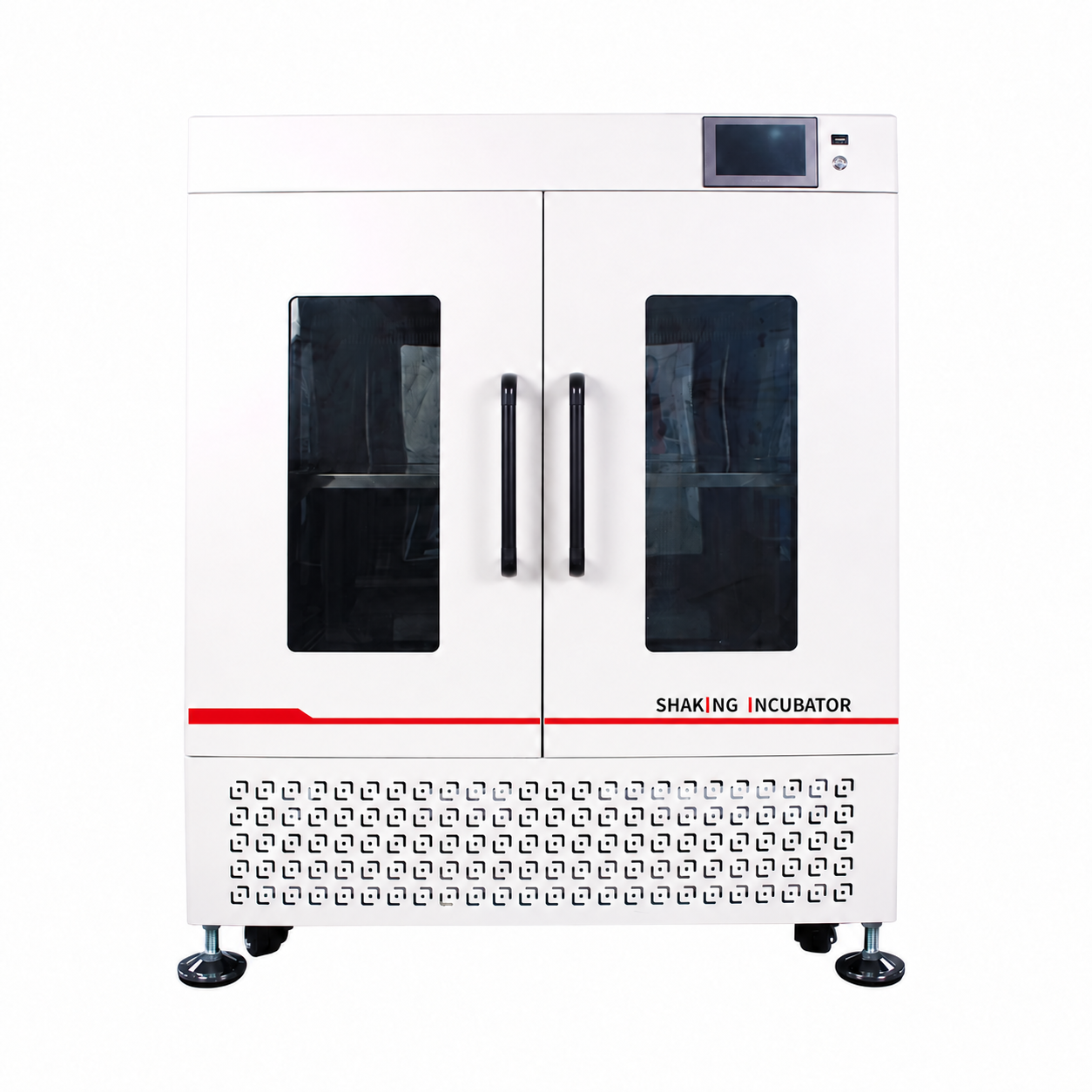

Representative larger double-door cabinet. The 324 L model has one door; platform arrangements and dimensions vary by model. Glassware supply requires confirmation.
Technical Information
| Parameter | Value |
|---|
| Temperature range at 25 °C ambient | 4–60 °C |
| Temperature control precision | 0.1 °C |
| Listed temperature fluctuation at 37 °C | ±0.5 °C |
| Listed temperature uniformity at 37 °C | ±1 °C |
| Orbital speed | 0–300 rpm |
| Speed accuracy | ±1 rpm |
| Orbit diameter | 26 mm |
| Timer range | 0–9999 min / h |
| Programs / segments / cycles | 5 / 30 / 99 |
| Electrical supply | AC 220 V ±22 V / 50 Hz |
| Model | Chamber volume (L) | Input power (W) |
|---|
| PT-SHK-045 | 324 | 800 |
| PT-SHK-046 | 510 | 1000 |
| PT-SHK-047 | 737 | 1000 |
Standard Configuration
Touchscreen, five programs with 30 segments and 99 cycles, two timing modes, scheduled start, lockscreen/password, data curves and history with USB export, and timestamped alarm records. Standard observation light and timed UV lamp, molded plastic flask clamps, stainless steel chamber, brushless motor with gradual start/stop, door-open shaking stop and fault/temperature alarms. A 30 mm internal-diameter validation port is provided on the left side.
Optional Accessories
Alternative holders are available. Confirm holder quantities and supplied glassware; maximum-load arrangements are alternatives. UV disinfection efficacy and regulatory compliance are not established by the lamp specification. A custom 50 mm orbit is available; confirm the ordered configuration.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, working temperature, speed, flask sizes and platform arrangement. Confirm electrical supply and final configuration.
