Orbital shaking incubators for temperature-controlled laboratory cultivation, with 30–300 rpm operation and a 7-inch touchscreen. Includes 50–90% RH control.
- 30 program segments and 999 cycles
- User permissions, event audit records and USB export
- Observation light; UV and printer optional

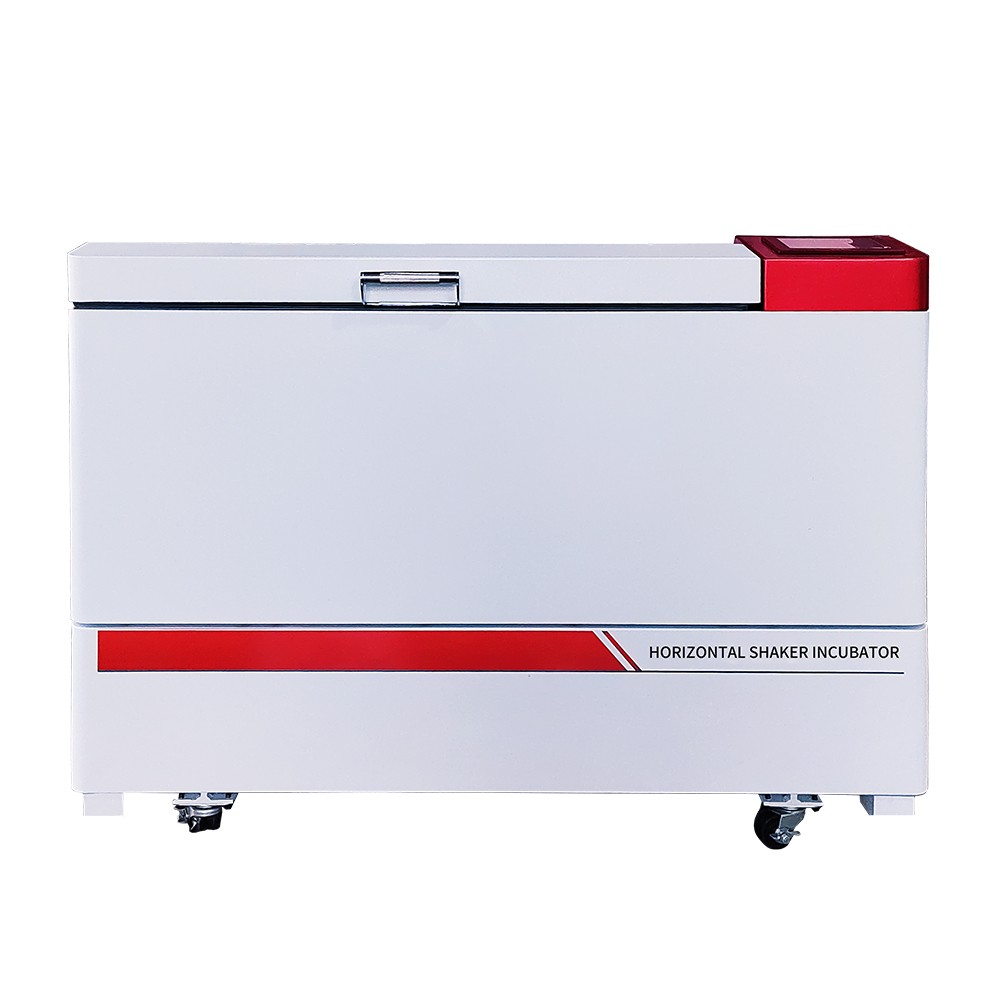

Representative horizontal cabinet. Dimensions and holder arrangements vary by model; confirm supplied glassware.
Technical Information
| Parameter | Value |
|---|
| Temperature range | 4–60 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation at 37 °C | ±0.3 °C |
| Temperature uniformity at 37 °C | ±1 °C |
| Orbital speed | 30–300 rpm |
| Speed accuracy | ±1 rpm |
| Timer range | 0–9999 min / h |
| Electrical supply | AC 220 V ±22 V / 50 Hz |
| Shaking platforms | One platform |
| Humidity range | 50–90% RH |
| Humidity control precision | ±3% RH |
| Model | Input power (W) | Orbit diameter |
|---|
| PT-SHK-022 | 2400 | 26 mm |
| PT-SHK-023 | 2800 | 26 mm |
| Model | Platform dimensions (W × D, mm) | Standard holder arrangement (mL × count) |
|---|
| PT-SHK-022 | 950 × 530 | 2000 × 6 |
| PT-SHK-023 | 970 × 605 | 2000 × 8 |
Standard Configuration
7-inch touchscreen, forced-air circulation, 30 program segments and 999 cycles, scheduled start, user permissions, event records, historical data and USB export. Standard observation light, mechanical door lock, brushless motor with gradual start, door-open shaking stop and alarm functions. Humidity control and a large-capacity humidification water reservoir are included.
Optional Accessories
Optional: UV lamp, reciprocating motion, printer, alternative flask holders, spring holders, sticky plate, tube racks, SMS alarm module and monitoring platform. Confirm selected accessories and supplied glassware; alternative full-load arrangements are separate choices.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, working temperature, speed, flask sizes and holder arrangement. Confirm accessory supply and final configuration before ordering.
