Stackable refrigerated shaking incubators with independent chamber control, 4–60 °C settings at 25 °C ambient and model-specific chamber counts.
- Independent touch control per chamber
- USB data and alarm records
- Standard observation light and programmable UV

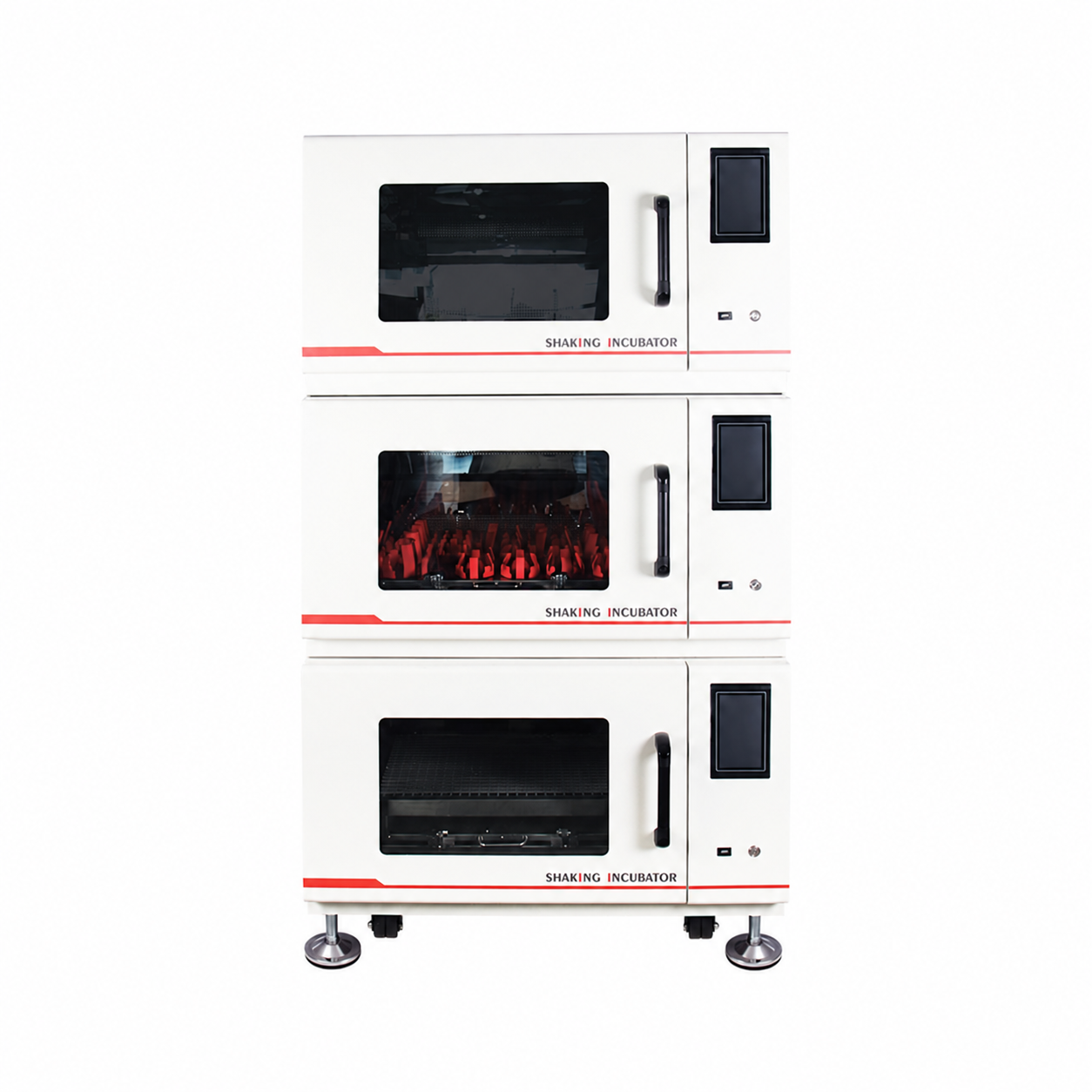

Representative three-chamber small-size stack. Select chamber size and one, two or three levels by model; the taller chamber size supports one or two levels. Holders and sample containers shown do not define the supplied configuration.
Technical Information
| Parameter | Value |
|---|
| Temperature range at 25 °C ambient | 4–60 °C |
| Listed temperature control precision | 0.1 °C |
| Listed speed range | 0–300 rpm |
| Speed accuracy | ±1 rpm |
| Standard orbit diameter | 26 mm |
| Program capacity | 5 × 30 |
| Electrical supply | AC 220 V ±22 V / 50 Hz |
| CO2 range / listed precision | 0–20% / 0.1% |
| Model | Volume per chamber (L) | Independent chambers / levels | Power per level (W) |
|---|
| PT-SHK-041 | 115 | 1 | 800 |
| PT-SHK-063 | 115 | 2 | 800 |
| PT-SHK-064 | 115 | 3 | 800 |
| PT-SHK-042 | 290 | 1 | 1000 |
| PT-SHK-065 | 290 | 2 | 1000 |
Standard Configuration
Each chamber has independent 7-inch touch control of temperature and shaking, fixed-value or 5-program/30-segment operation, start-temperature or set-temperature timing, scheduling, screen lock, historical curves, alarm records and USB export (up to 150000 records). Pull-out secured platforms, stainless steel interiors with drainage, insulated glass doors, refrigeration with adjustable defrost, observation lighting and programmable UV lamps are standard. Door-open stop, power-restoration memory and temperature/door alarms are listed. UV efficacy is not specified. CO2 versions include an infrared sensor and pressure-reducing valve; provide a compatible external CO2 supply.
Optional Accessories
Humidity control, cultivation lighting and alternative holders are optional. Observation lighting is standard and is distinct from cultivation lighting. Confirm the selected holder set, glassware or plates, electrical service and complete stack delivery. Timer limits and temperature-uniformity data require confirmation for the selected revision. A 50 mm orbit is a custom option; the standard orbit is 26 mm.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, chamber count, sample vessels and operating conditions. Each load row is an alternative arrangement for the whole selected stack, not a sum of all flask sizes. Per-level power is not total stack power. Confirm utilities, accessories and final configuration.
