Integrated vacuum ovens with 30–430 L stainless steel chambers, independently controlled heated shelves and a supplied cabinet-mounted vacuum pump.
- Independent temperature control of fixed heated shelves
- Supplied vacuum pump housed in the cabinet
- Digital vacuum indication and control with automatic vacuum compensation.

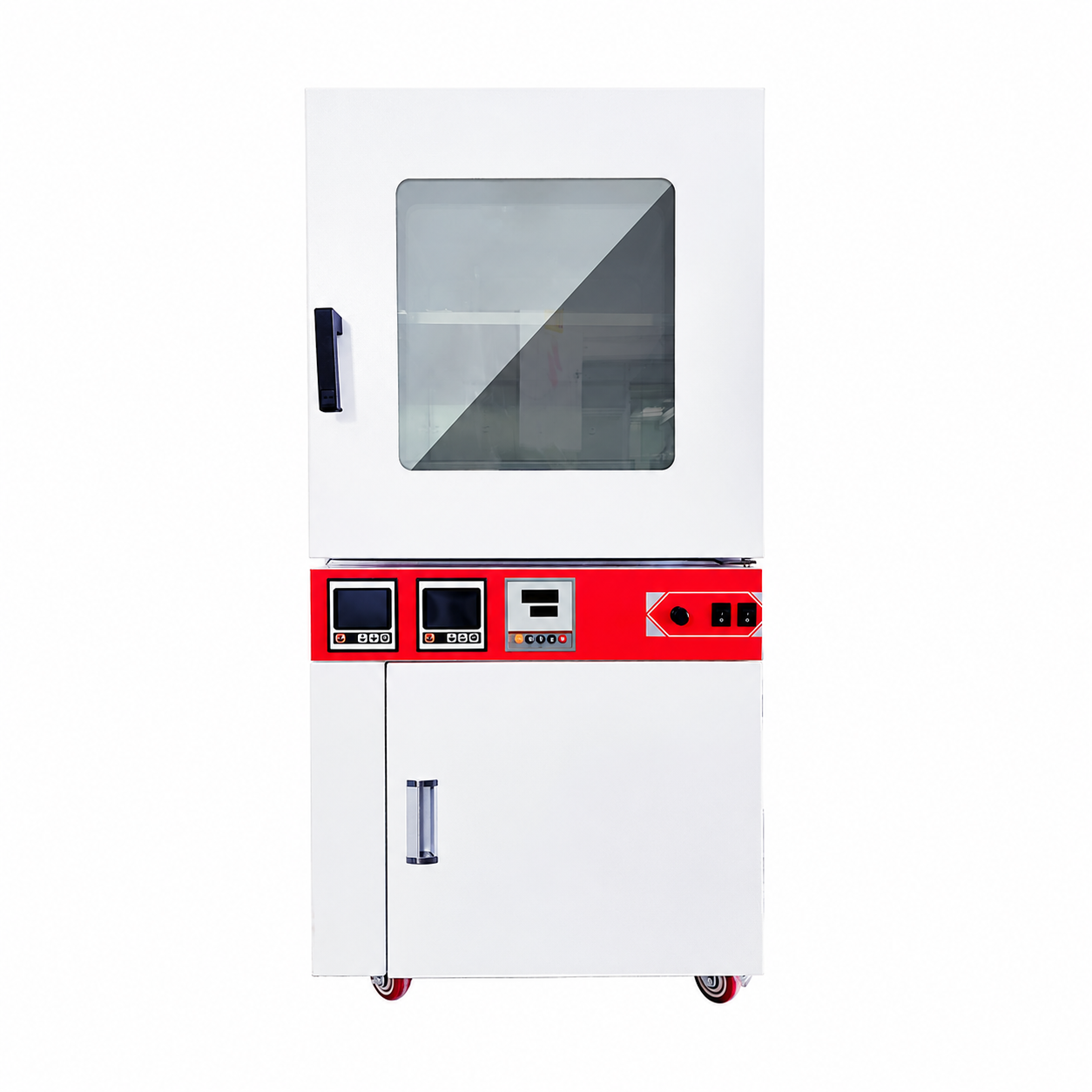

Representative series configuration. Shelf count, temperature controllers and dimensions vary by model; use the specification table for the selected model.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +10 to 250 °C |
| Temperature fluctuation | ±1 °C |
| Ultimate vacuum | 133 Pa |
| Timer range | 0–9999 min |
| Heating method | Heated shelves |
| Model | Chamber volume (L) | Input power (W) | Electrical supply |
|---|
| PT-VDO-013 | 30 | 770 | 220 V ±10 V 50–60 Hz |
| PT-VDO-014 | 53 | 1270 | 220 V ±10 V 50–60 Hz |
| PT-VDO-015 | 100 | 1870 | 220 V ±10 V 50–60 Hz |
| PT-VDO-016 | 250 | 2950 | 220 V ±10 V 50–60 Hz |
| PT-VDO-017 | 430 | 4000 | 380 V ±10 V 50–60 Hz |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-VDO-013 | 320 × 320 × 300 | 480 × 530 × 1015 |
| PT-VDO-014 | 415 × 370 × 345 | 575 × 550 × 1060 |
| PT-VDO-015 | 450 × 500 × 450 | 620 × 640 × 1165 |
| PT-VDO-016 | 600 × 600 × 700 | 770 × 780 × 1515 |
| PT-VDO-017 | 630 × 810 × 845 | 800 × 990 × 1660 |
| Model | Supplied shelves | Shelf spacing (mm) | Pump capacity (L/s) |
|---|
| PT-VDO-013 | 1 | 240 | 2 |
| PT-VDO-014 | 2 | 125 | 2 |
| PT-VDO-015 | 2 | 180 | 2 |
| PT-VDO-016 | 3 | 200 | 4 |
| PT-VDO-017 | 4 | 175 | 6 |
Standard Configuration
Stainless steel chamber, non-removable heated shelves with independent temperature control, LCD temperature/timer controller, overtemperature alarm, double-glazed door, silicone door seal and cabinet-mounted vacuum pump. Shelf count and pump capacity vary by model. Digital vacuum indication and control with automatic vacuum compensation.
Optional Accessories
Confirm connection accessories, sample compatibility and the final delivery list in the quotation. Software and validation services are not specified as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
