Vacuum drying ovens with heated, fixed shelves and stainless steel chambers from 30 to 430 L. Select the model by chamber size and shelf arrangement.
- Heated shelves; shelves are not removable
- LCD temperature/timer controller
- Double-glazed door and overtemperature alarm

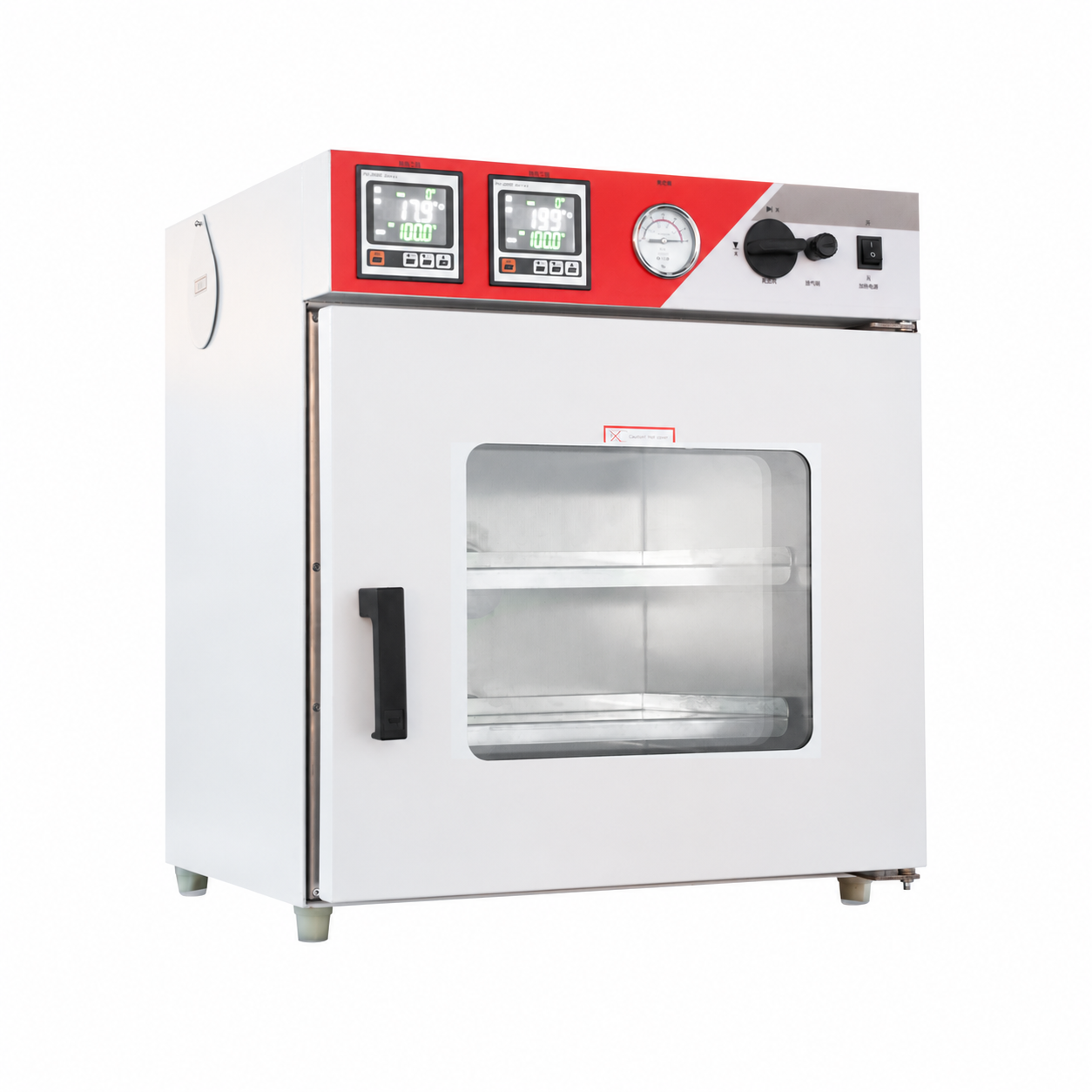

Representative two-shelf configuration. Shelf count, controls and dimensions depend on the selected model and configuration.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +10 to 250 °C |
| Temperature fluctuation | ±1 °C |
| Ultimate vacuum | 133 Pa |
| Timer range | 0–9999 min |
| Heating method | Heated shelves |
| Model | Chamber volume (L) | Input power (W) | Electrical supply |
|---|
| PT-VDO-003 | 30 | 400 | 220 V ±10 V 50–60 Hz |
| PT-VDO-004 | 53 | 900 | 220 V ±10 V 50–60 Hz |
| PT-VDO-005 | 100 | 1500 | 220 V ±10 V 50–60 Hz |
| PT-VDO-006 | 250 | 2400 | 220 V ±10 V 50–60 Hz |
| PT-VDO-007 | 430 | 4000 | 380 V ±10 V 50–60 Hz |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-VDO-003 | 320 × 320 × 300 | 480 × 530 × 615 |
| PT-VDO-004 | 415 × 370 × 345 | 575 × 550 × 675 |
| PT-VDO-005 | 450 × 500 × 450 | 620 × 640 × 780 |
| PT-VDO-006 | 600 × 600 × 700 | 770 × 780 × 1030 |
| PT-VDO-007 | 630 × 810 × 845 | 800 × 990 × 1175 |
| Model | Supplied shelves | Shelf spacing (mm) |
|---|
| PT-VDO-003 | 1 | 240 |
| PT-VDO-004 | 2 | 125 |
| PT-VDO-005 | 2 | 180 |
| PT-VDO-006 | 3 | 200 |
| PT-VDO-007 | 4 | 175 |
Standard Configuration
Stainless steel chamber, heated fixed shelves, LCD temperature/timer control, overtemperature alarm, silicone door seal and double-glazed observation door. Shelf counts and spacing are model-specific.
Optional Accessories
Confirm independent control of each heating layer when requesting a quote. A vacuum pump and connection accessories are not specified as supplied.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
