Compact vacuum ovens for laboratory drying, with jacket heating and 25 L or 53 L stainless steel chambers.
- Jacket heating and digital temperature control
- Double-glazed observation door
- Two supplied shelves and overtemperature alarm

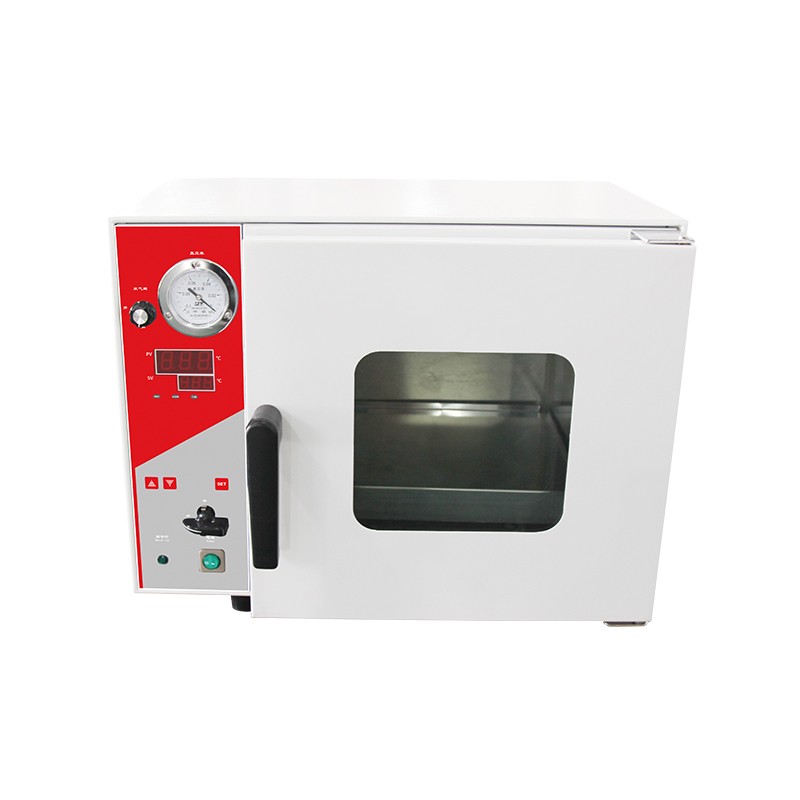

Image shows PT-VDO-001. Other models differ in dimensions.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +5 to 250 °C |
| Temperature fluctuation | ±1 °C |
| Ultimate vacuum | 133 Pa |
| Timer range | 0–999 min |
| Heating method | Jacket heating |
| Supplied shelves | 2 |
| Electrical supply | 220 V ±10 V / 50–60 Hz |
| Model | Chamber volume (L) | Input power (W) | Supplied shelves |
|---|
| PT-VDO-001 | 25 | 900 | 2 |
| PT-VDO-002 | 53 | 1400 | 2 |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-VDO-001 | 300 × 296 × 275 | 590 × 430 × 475 |
| PT-VDO-002 | 415 × 370 × 344 | 710 × 505 × 550 |
Standard Configuration
Stainless steel chamber with jacket heating, digital temperature/timer controller, overtemperature alarm, silicone door seal, double-glazed door and two shelves.
Optional Accessories
A vacuum pump and connection accessories are not specified as supplied. Confirm a compatible pump, connections and the final delivery list in the quotation.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
