Water-jacketed incubators for controlled-temperature cultivation and laboratory testing, with 50–270 L stainless steel chambers.
- Water-jacket heating with gentle air circulation
- Glass inner door and adjustable shelves
- LCD controller and standard RS-485 interface

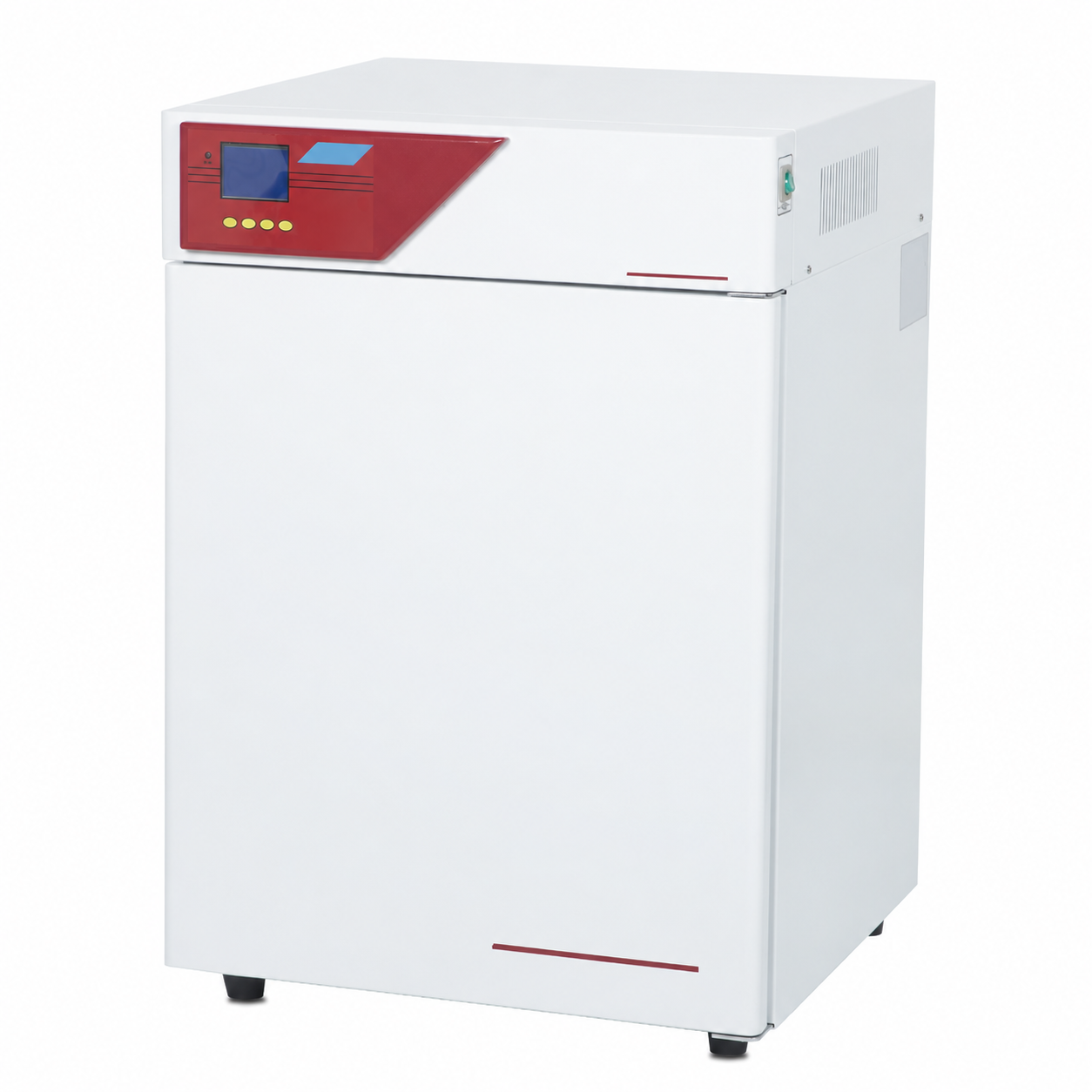

Image shows PT-INC-045. Other models differ in dimensions.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +2 to 65 °C |
| Temperature fluctuation | ±0.2 °C |
| Temperature resolution | 0.1 °C |
| Timer range | 0–5999 min |
| Heating method | Water jacket |
| Load per shelf | 15 kg |
| Electrical supply | AC 220 V ±10% / 50 Hz ±2% |
| Model | Chamber volume (L) | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-INC-045 | 50 | 430 | 2/4 |
| PT-INC-046 | 80 | 630 | 2/4 |
| PT-INC-047 | 160 | 1030 | 3/5 |
| PT-INC-048 | 270 | 1530 | 3/6 |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-INC-045 | 310 × 380 × 450 | 460 × 490 × 755 |
| PT-INC-046 | 400 × 400 × 500 | 550 × 510 × 805 |
| PT-INC-047 | 550 × 500 × 650 | 700 × 610 × 955 |
| PT-INC-048 | 600 × 600 × 750 | 750 × 710 × 1055 |
Standard Configuration
Stainless steel chamber, water jacket, circulation fan, glass inner door, LCD temperature/timer controller, overtemperature alarm and RS-485 interface. Supplied shelf quantities are listed by model.
Optional Accessories
Additional shelves and accessories require confirmation in the quotation. Software and validation services are not listed as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
