70–480 L programmable incubators with fan-on forced convection or fan-off natural convection. Temperature uniformity is specified separately for each operating mode.
- Selectable forced or natural convection
- 10 segments, 100 cycles and six fan speeds
- Glass inner door and sliding shelves

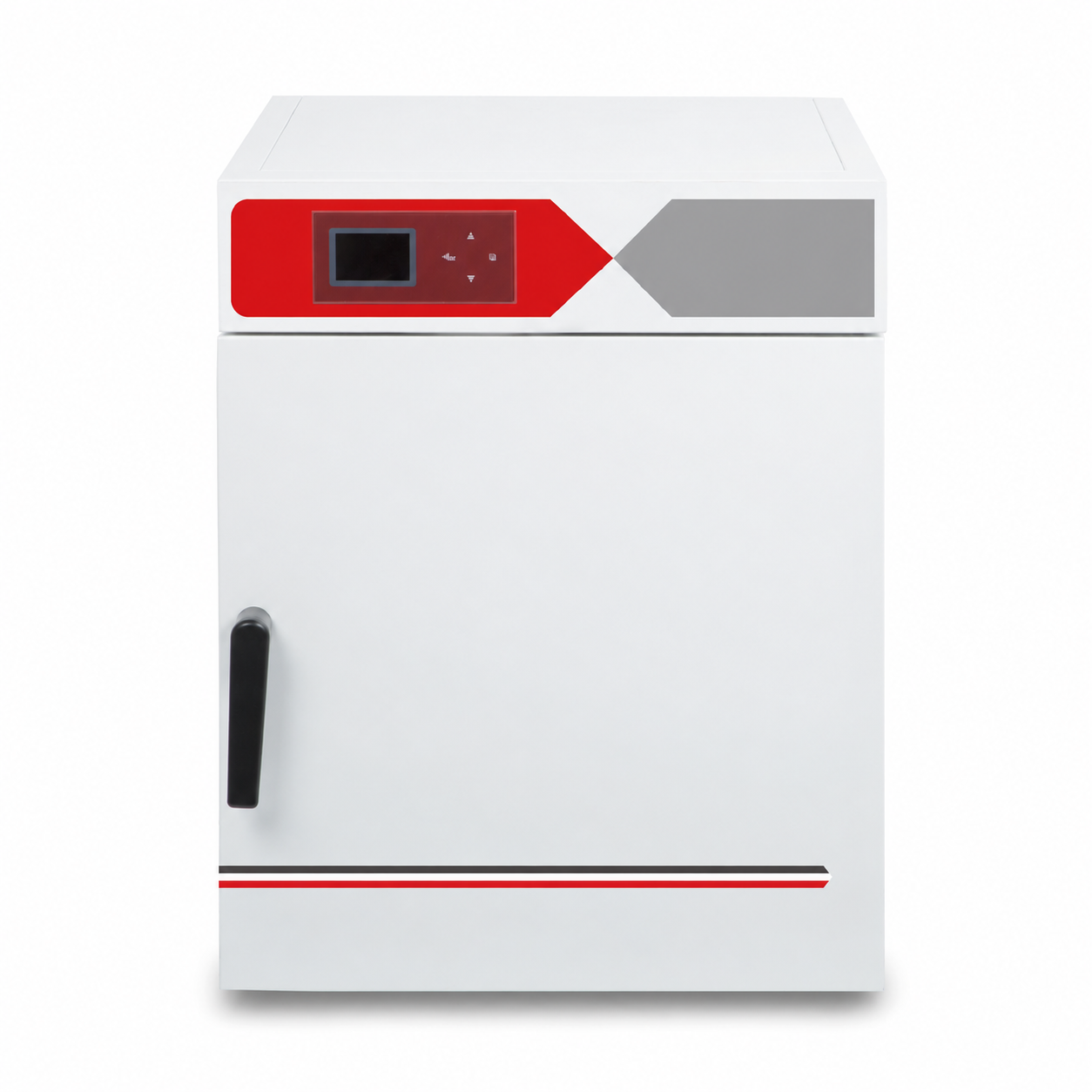

Representative exterior view. Cabinet dimensions, observation-door design and shelf quantities vary by model; consult the specification table.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +5 to 100 °C |
| Temperature fluctuation | ±0.3 °C (37 °C) |
| Uniformity: fan on (37 °C) | ±0.5 °C |
| Uniformity: fan off (37 °C) | ±1 °C |
| Electrical supply | 220 V ±10% / 50–60 Hz |
| Model | Chamber volume (L) | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-INC-093 | 70 | 310 | 2/5 |
| PT-INC-094 | 140 | 530 | 2/7 |
| PT-INC-095 | 220 | 850 | 3/7 |
| PT-INC-096 | 300 | 850 | 3/9 |
| PT-INC-097 | 480 | 850 | 4/13 |
Standard Configuration
LCD controller, 10 segments and 100 cycles, delayed-start setting up to 9999 minutes, six fan speeds, independent fan on/off control, preheating chamber, glass inner door, sliding shelves, two overtemperature alarm systems and one RS-485 interface.
Optional Accessories
Inlet/outlet filters are optional. Printer or remote alarm/monitoring functions use a choice of one communication option; confirm the selected option, compatibility and availability in the quotation. Software and validation services are not standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
