Refrigerated incubators with an orbital shaker, 0–70 °C control, 20 mm shaking amplitude and adjustable shaking up to 220 rpm.
- 30 segments and 99 cycles
- Six fan speeds and variable-speed refrigeration
- Glass inner door, lock and two test ports

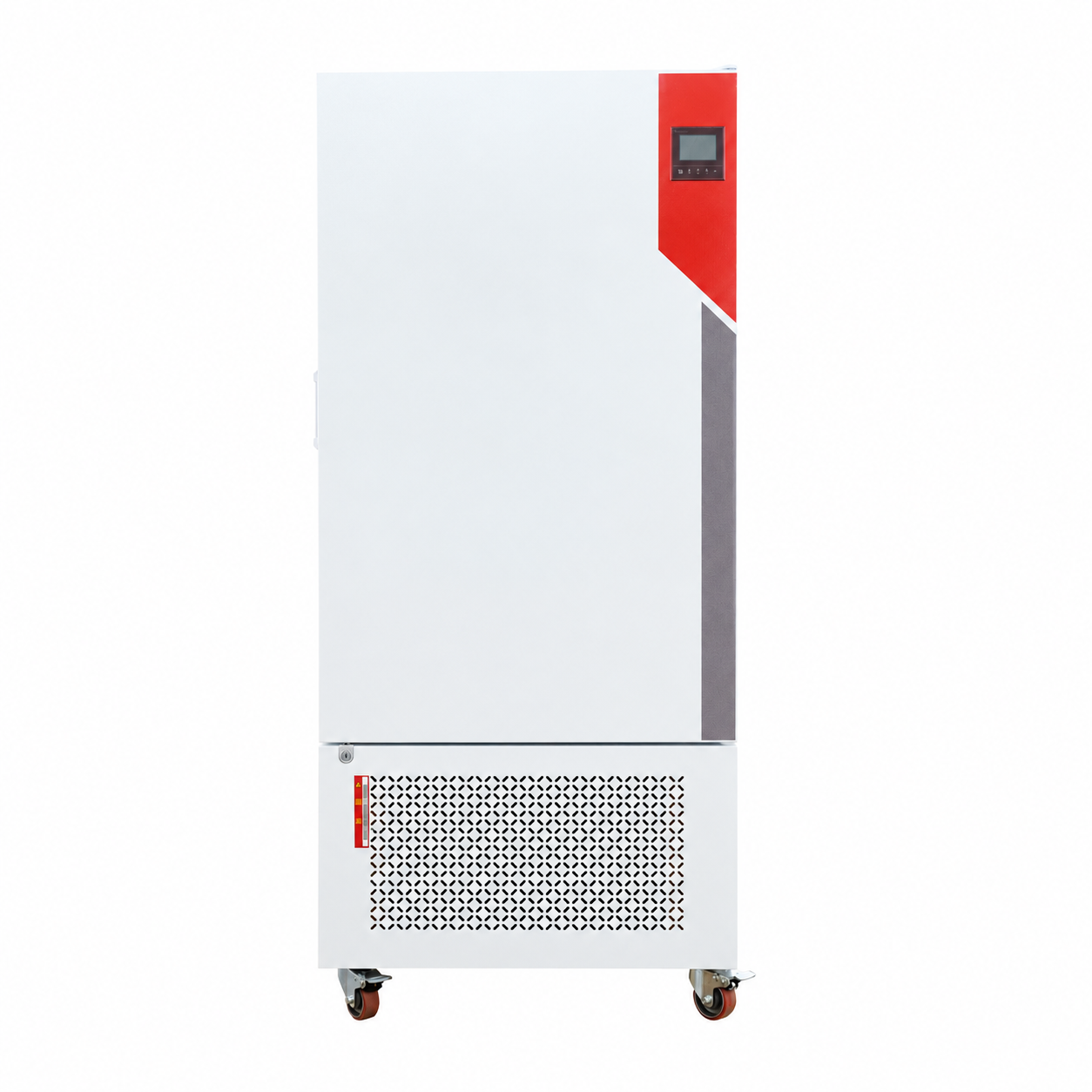

Representative exterior view. The shaker is inside the cabinet; dimensions, shelves and flask capacity vary by model.
Technical Information
| Parameter | Value |
|---|
| Temperature range | 0–70 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation: heating | ±0.5 °C |
| Temperature fluctuation: cooling | ±0.7 °C |
| Uniformity at 37 °C | ±1 °C |
| Timer range | 0–9999 min/h |
| Maximum shaking speed | 220 rpm |
| Shaking amplitude | 20 mm |
| Load per shelf | 15 kg |
| Model | Input power (W) | Shelves: supplied / maximum | Shaker assembly dimensions (mm) |
|---|
| PT-INC-021 | 1050 | 2/4 | 420 × 320 × 200 |
| PT-INC-022 | 1150 | 4/6 | 420 × 320 × 200 |
| PT-INC-023 | 1400 | 4/6 | 500 × 500 × 200 |
| Model | Flask capacity: mL × quantity |
|---|
| PT-INC-021 | 100×14 / 250×9 / 500×5 / 1000×4 / 2000×2 |
| PT-INC-022 | 100×14 / 250×9 / 500×5 / 1000×4 / 2000×2 |
| PT-INC-023 | 100×30 / 250×16 / 500×12 / 1000×9 / 2000×4 |
Standard Configuration
Stainless steel chamber, LCD controller, 30 segments and 99 cycles, six fan speeds, glass inner door, mechanical lock, screen password, two 30 mm test ports, variable-speed refrigeration, overtemperature alarm and power-restoration memory. An internal 220 V auxiliary socket is listed; this is not a mains-supply specification. Observation lamp supplied. Orbital shaker with 20 mm shaking amplitude and adjustable speed up to 220 rpm.
Optional Accessories
Confirm flask fixtures and any additional shelves in the quotation. Listed flask capacities are alternative arrangements, not simultaneous loads. Software and validation services are not standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
