Refrigerated incubators for mold cultivation, with 0–60 °C temperature control, six fan speeds and an internal 8 W UV lamp.
- Heating and refrigeration with R134a refrigerant
- Six fan speeds and LCD temperature/timer controls
- Internal 8 W UV lamp

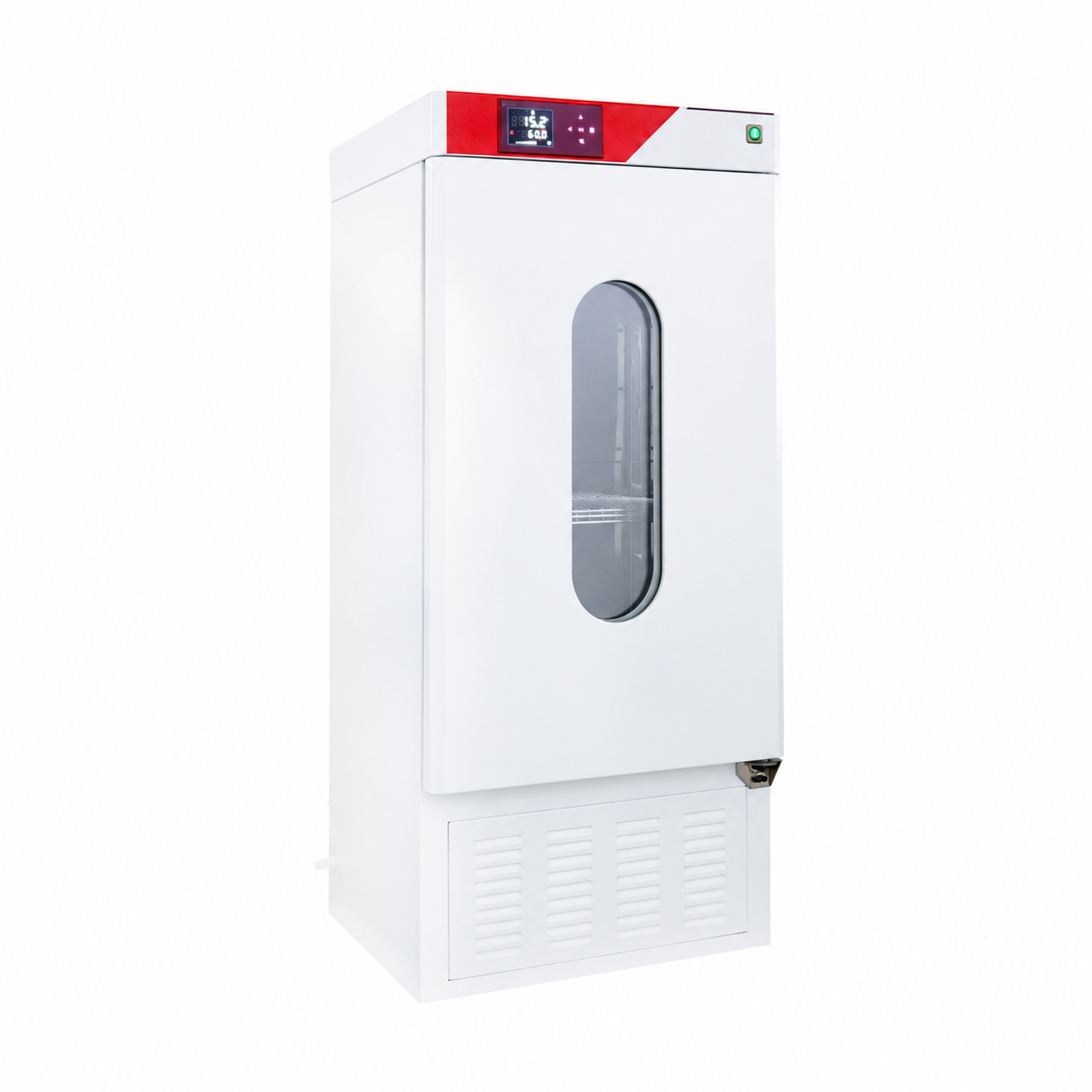

Representative exterior view. The internal lamp is not shown; dimensions and shelf capacity vary by model.
Technical Information
| Parameter | Value |
|---|
| Temperature range | 0–60 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation: heating | ±0.7 °C |
| Temperature fluctuation: cooling | ±1 °C |
| Temperature uniformity | ±1.5 °C (37 °C) |
| Timer range | 0–9999 min/h |
| Load per shelf: model-specific | PT-INC-061, PT-INC-062: 15 kg |
| Model | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-INC-061 | 500 | 2/3 |
| PT-INC-062 | 500 | 3/5 |
| PT-INC-063 | 670 | 3/7 |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-INC-061 | 500 × 370 × 580 | 580 × 570 × 1070 |
| PT-INC-062 | 500 × 370 × 815 | 595 × 580 × 1232 |
| PT-INC-063 | 500 × 440 × 1100 | 615 × 620 × 1597 |
Standard Configuration
Mirror-finish stainless steel chamber, adjustable shelves, six-speed fan, LCD temperature/timer controller with backlit touch keys, overtemperature alarm, self-diagnostics, power-recovery function, R134a refrigeration, insulated tempered-glass viewing window, 8 W UV lamp and internal 220 V socket.
Optional Accessories
Confirm additional accessories, UV operating conditions and the final configuration in the quotation. Humidity control, light-exposure testing, software and validation services are not specified as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, application, working temperature and shelf arrangement. Confirm the mains supply and the permitted load for the internal socket before ordering.
