Refrigerated laboratory incubators with 0–60 °C temperature control, adjustable shelves and six fan speeds for biochemical incubation.
- Heating and refrigeration with R134a refrigerant
- Six fan speeds and LCD temperature/timer controls
- 8 W observation lamp and insulated viewing window

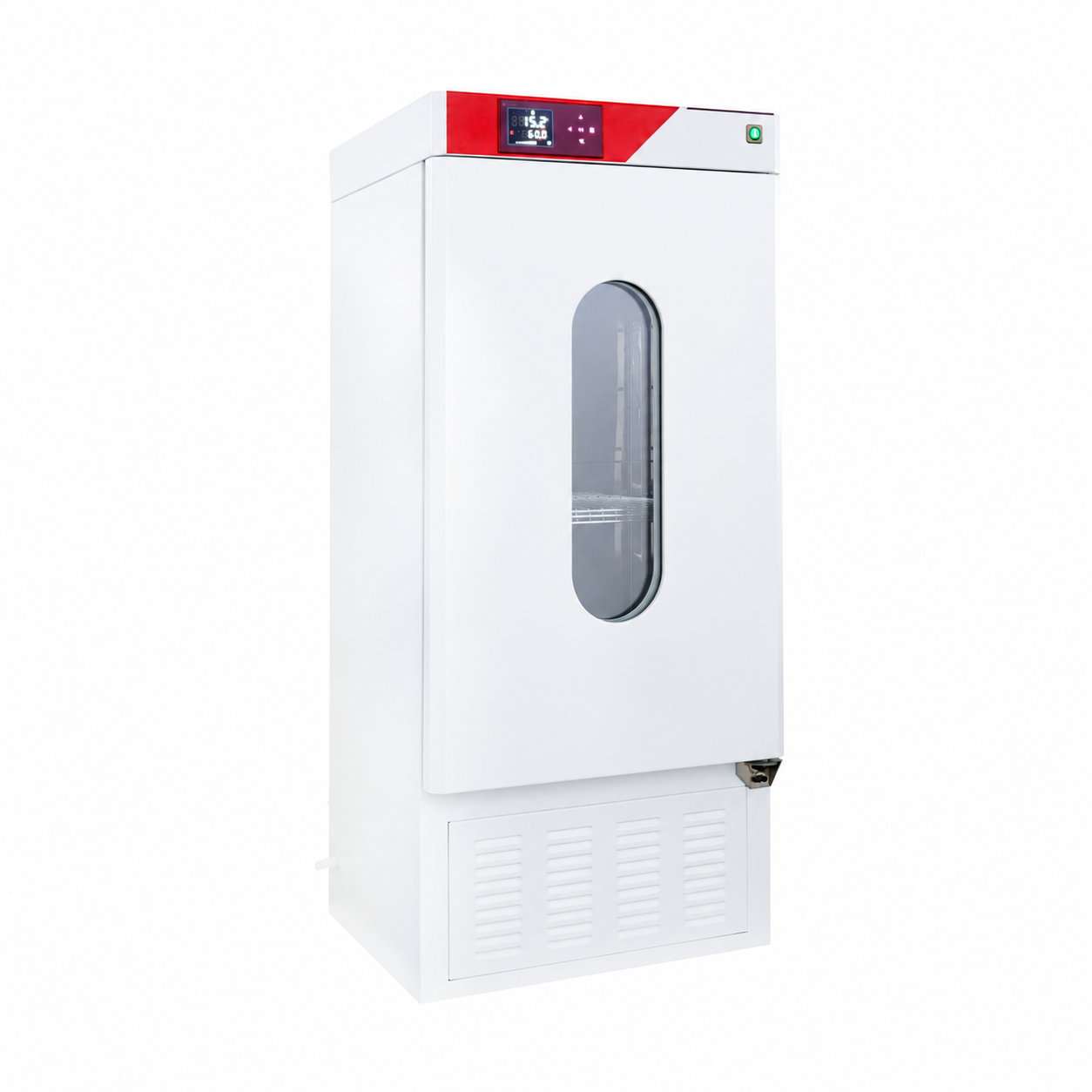

Image shows PT-INC-058. Other models differ in dimensions and shelf capacity.
Technical Information
| Parameter | Value |
|---|
| Temperature range | 0–60 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation: heating | ±0.7 °C |
| Temperature fluctuation: cooling | ±1 °C |
| Temperature uniformity | ±1.5 °C (37 °C) |
| Timer range | 0–9999 min/h |
| Load per shelf | 15 kg |
| Model | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-INC-058 | 500 | 2/3 |
| PT-INC-059 | 500 | 3/5 |
| PT-INC-060 | 670 | 3/7 |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-INC-058 | 500 × 370 × 580 | 580 × 570 × 1070 |
| PT-INC-059 | 500 × 370 × 815 | 595 × 580 × 1232 |
| PT-INC-060 | 500 × 440 × 1100 | 615 × 620 × 1597 |
Standard Configuration
Mirror-finish stainless steel chamber, adjustable shelves, six-speed fan, LCD temperature/timer controller with backlit touch keys, overtemperature alarm, self-diagnostics, power-recovery function, R134a refrigeration, insulated tempered-glass viewing window, 8 W observation lamp and internal 220 V socket.
Optional Accessories
Additional accessories require confirmation in the quotation. The observation lamp is for viewing; light-exposure testing and UV sterilization are not listed as standard. Software and validation services are not specified as supplied.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, application, working temperature and shelf arrangement. Confirm the mains supply and the permitted load for the internal socket before ordering.
