Programmable chambers for temperature and humidity studies, with a 7-inch touchscreen, event records and model-specific humidity ranges.
- 7-inch touchscreen and 30-segment programming
- Data records, event log and operator permissions
- USB and RS-485 interfaces

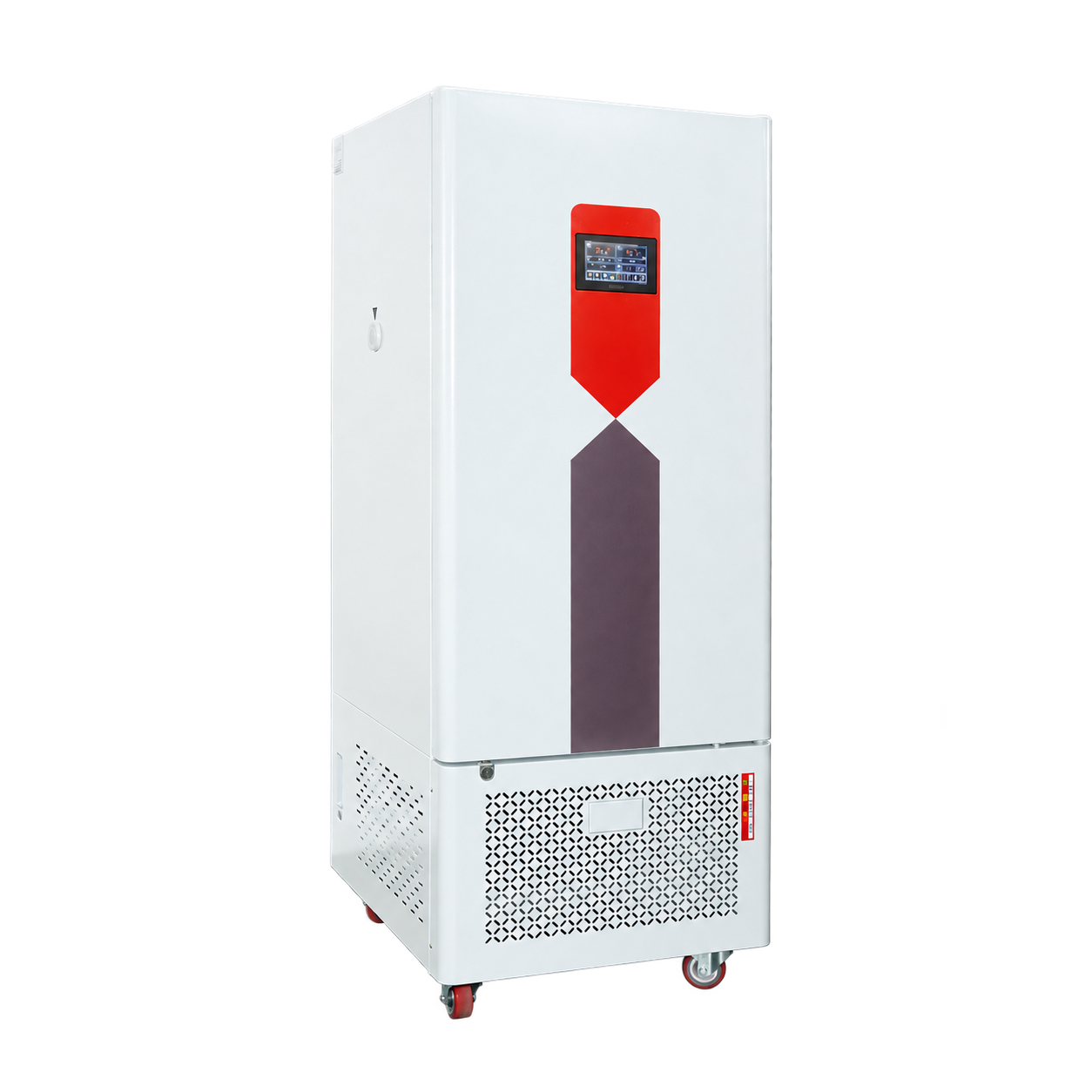

Representative exterior view. Cabinet size, controls and shelf arrangement vary by model.
Technical Information
| Parameter | Value |
|---|
| Temperature resolution | 0.1 °C |
| Program capacity | 30 segments / 99 cycles |
| Timer range | 1–9999 h / Time per program segment |
| Model | Without humidity control (°C) | With humidity control (°C) | Humidity range (% RH) |
|---|
| PT-INC-072 | 0–70 | 10–60 | 25–95 |
| PT-INC-073 | 0–70 | 10–60 | 25–95 |
| PT-INC-074 | 0–70 | 10–60 | 25–95 |
| PT-INC-075 | 0–70 | 10–60 | 30–95 |
| PT-INC-076 | 0–70 | 10–60 | 30–95 |
| PT-INC-077 | 0–70 | 10–60 | 30–95 |
| PT-INC-078 | 0–70 | 10–60 | 25–95 |
| Model | Temperature fluctuation | Temperature uniformity | Humidity fluctuation |
|---|
| PT-INC-072 | ±0.5 °C (25 °C) | ±1 °C (25 °C) | ±3%RH |
| PT-INC-073 | ±0.5 °C (25 °C) | ±1 °C (25 °C) | ±3%RH |
| PT-INC-074 | ±0.5 °C (25 °C) | ±1 °C (25 °C) | ±3%RH |
| PT-INC-075 | ±0.5 °C (25 °C) | ±1.5 °C (25 °C) | ±5%RH |
| PT-INC-076 | ±0.5 °C (25 °C) | ±1.5 °C (25 °C) | ±5%RH |
| PT-INC-077 | ±0.5 °C | ±1.5 °C (25 °C) | ±5%RH |
| PT-INC-078 | ±0.5 °C (25 °C) | ±1 °C (25 °C) | ±3%RH |
| Model | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-INC-072 | 1900 | 3/4 |
| PT-INC-073 | 1950 | 4/7 |
| PT-INC-074 | 2000 | 4/7 |
| PT-INC-075 | 3500 | 4/8 |
| PT-INC-076 | 3600 | 4/8 |
| PT-INC-077 | 3700 | 4/8 |
| PT-INC-078 | 2000 | 4/7 |
Standard Configuration
7-inch touchscreen; 30 segments and 99 cycles; data and time-stamped event records with USB export; configurable operator permissions; variable-speed refrigeration; surface-evaporation humidification with built-in water tank; glass inner door with anti-fog system; mechanical lock; one USB and one RS-485 port; two 30 mm side test ports; temperature, humidity, door, water-level and sensor alarms.
Optional Accessories
Online monitoring, SMS alarms, an embedded printer and a UV lamp are optional. Confirm scope, compatibility and delivery configuration in the quotation. No software or validation service is included by implication.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
