Programmable incubators with 0–80 °C heating and refrigeration, 150–1000 L chambers, touchscreen control and temperature/event record export.
- 5-inch LCD touchscreen; 30 segments, 999 cycles
- Temperature records, event logs and user permissions
- USB, RS-485 and two 30 mm test ports

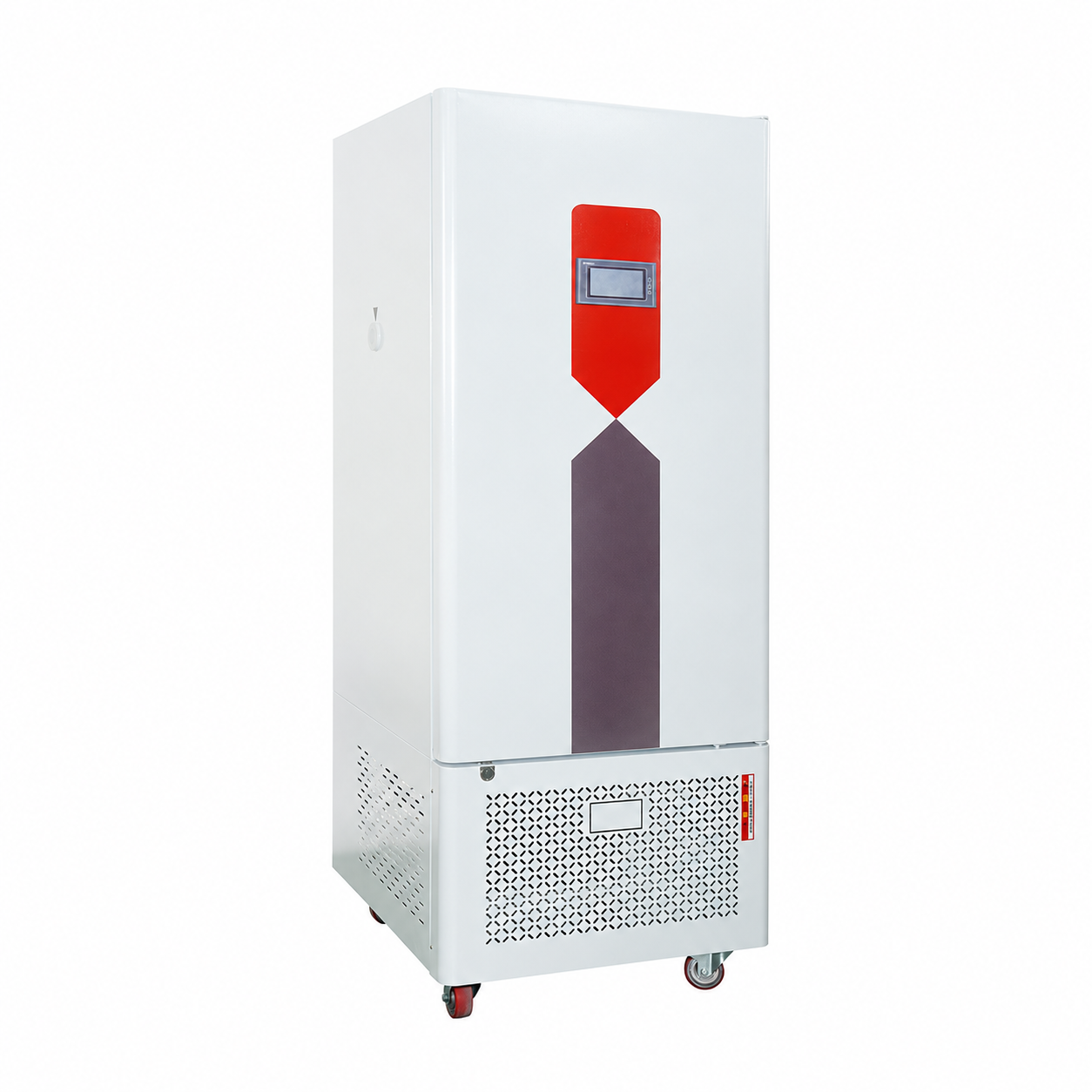

Image shows the 150 L model PT-INC-064. Larger models differ in cabinet dimensions; PT-INC-067 and PT-INC-068 use a left/right partitioned shelf arrangement.
Technical Information
| Parameter | Value |
|---|
| Temperature range | 0–80 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation: heating | ±0.3 °C |
| Temperature fluctuation: cooling | ±0.5 °C |
| Temperature uniformity | ±0.8 °C (25 °C) |
| Timer range | 0–9999 h 59 min |
| Load per shelf | 15 kg |
| Model | Chamber volume (L) | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-INC-064 | 150 | 1000 | 3/5 |
| PT-INC-065 | 250 | 1000 | 4/7 |
| PT-INC-066 | 400 | 1350 | 4/7 |
| PT-INC-067 | 800 | 1000 | 6/12 (Left/right partitioned) |
| PT-INC-068 | 1000 | 1000 | 6/12 (Left/right partitioned) |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-INC-064 | 510 × 390 × 760 | 650 × 680 × 1400 |
| PT-INC-065 | 510 × 450 × 1090 | 650 × 740 × 1726 |
| PT-INC-066 | 600 × 640 × 1050 | 745 × 930 × 1695 |
| PT-INC-067 | 1220 × 585 × 1123 | 1503 × 910 × 1820 |
| PT-INC-068 | 1363 × 670 × 1123 | 1505 × 1006 × 1811 |
Standard Configuration
Touchscreen controller with calendar scheduling, timer, six fan speeds, eight-point manual temperature calibration, temperature/event records, user permissions and USB export. USB and RS-485 interfaces, independent temperature limit protection, temperature/door/sensor alarms, mechanical door lock, glass inner door, two 30 mm test ports, 8 W observation lamp and internal 220 V socket are supplied.
Optional Accessories
UV lamp, built-in printer and GPRS alarm module are optional. Confirm the selected alarm/remote monitoring arrangement and its availability in the quotation. Validation services and regulatory certification are not stated as supplied.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify model, samples, temperature program, shelf arrangement and required interfaces or accessories. Confirm mains supply, internal socket load and the final configuration.
