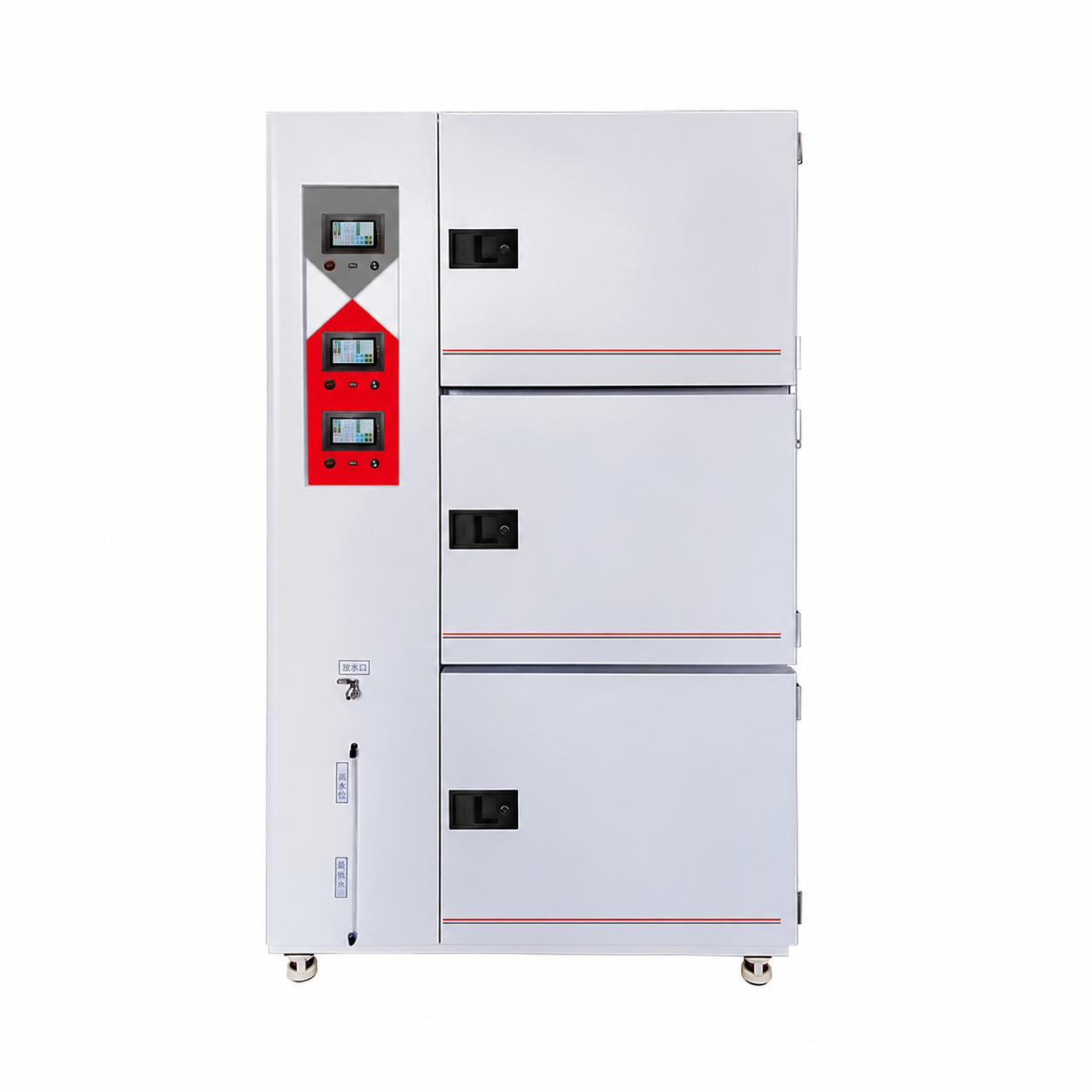

Three independently controlled 200 L chambers for plant cultivation, with 5–65 °C temperature control, standard humidity control and adjustable shelf lighting.
- Independent temperature, humidity and light control
- 4.3-inch touchscreen and 24-hour programming
- Separate compressor and test port for each chamber
Technical Information
| Parameter | Value |
|---|
| Independent chambers | 3 × 200 L |
| Temperature range | 5–65 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation | ±0.5 °C |
| Temperature uniformity | ±1.0 °C |
| Humidity range | 50–95% RH |
| Humidity fluctuation | ±3–7% RH |
| Illuminance range | 0–65000 lux |
| Parameter | Value |
|---|
| Humidity resolution | 0.1% RH |
| Input power (W) | 6000 W |
| Shelf lighting modules | 3 |
| Chamber dimensions (mm) | 700 × 600 × 500 |
| External dimensions (mm) | 1280 × 1050 × 2100 |
| External dimensions (mm) | External width excludes drain outlet. |
Standard Configuration
Three independent 200 L chambers, 304 stainless steel interior, ultrasonic humidification, adjustable shelf lighting and UV light for each chamber, three lighting modules, independent compressors, programmable air circulation, fresh-air exchange, test ports, condensate recovery, alarm history, temperature/humidity data records, password levels and USB export. UV is not presented as a validated sterilization function.
Optional Accessories
CO2 control, low-oxygen control and alternative light sources are optional. Confirm the selected configuration in the quotation. Software compliance and validation services are not claimed.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
