Programmable illuminated growth chambers with 0–60 °C settings without light, 10–60 °C with light and six illumination levels up to 15000 lx.
- 0–15000 lx illumination in six levels
- 30-segment programming with 99 cycles
- Independently switchable fresh-air unit

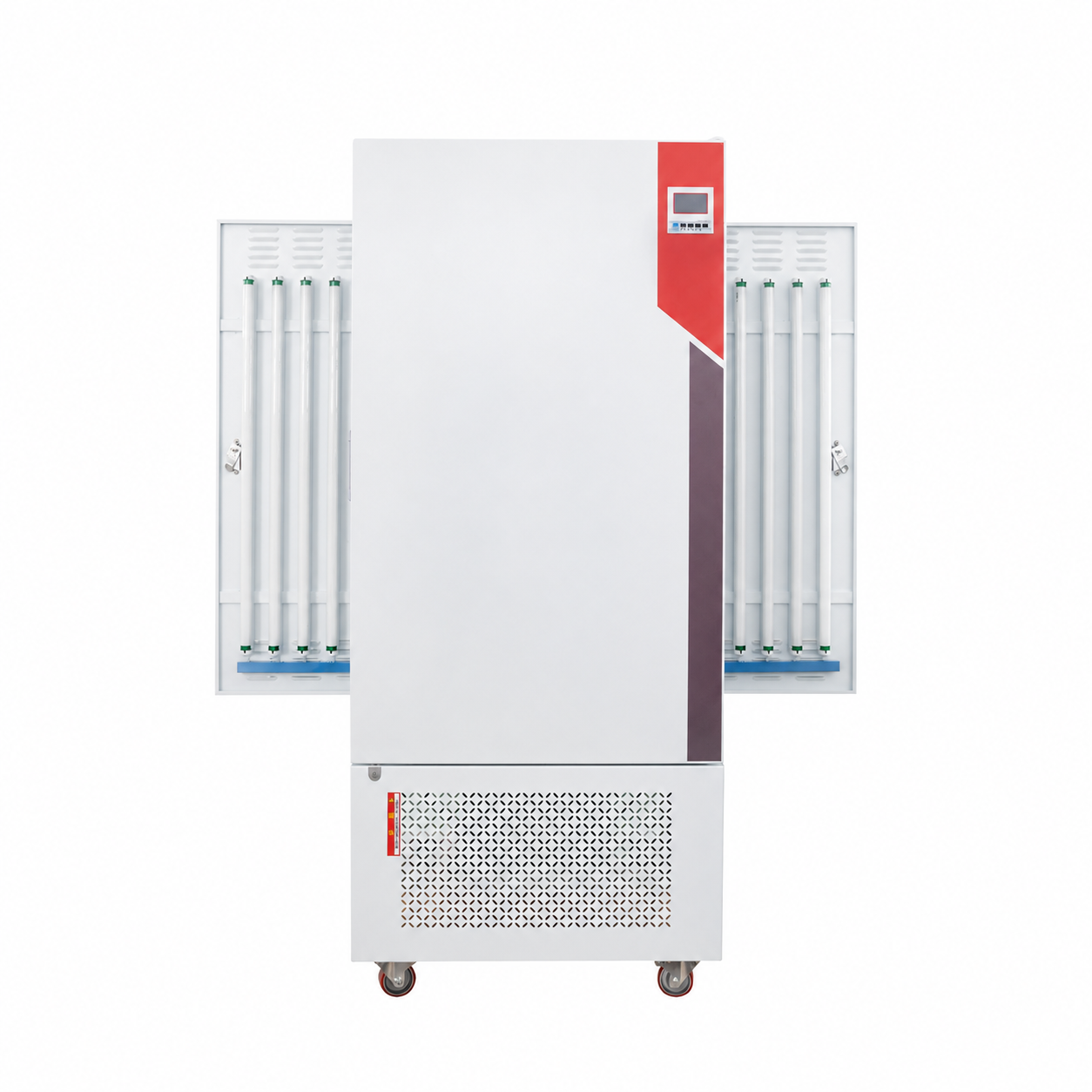

Representative exterior; dimensions and supplied shelves follow the selected model.
Technical Information
| Parameter | Value |
|---|
| Temperature range: lights off | 0–60 °C |
| Temperature range: lights on | 10–60 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation | ±0.5 °C |
| Temperature uniformity at 37 °C | ±1.5 °C |
| Illuminance: six selectable levels | 0–15000 lx |
| Timer range | 0–9999 min |
| Program segments / cycles | 30 / 99 |
| Top test port: ID / OD (mm) | 30 / 60 |
| Model | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-PGC-001 | 1500 | 4 / 7 |
| PT-PGC-002 | 1900 | 4 / 7 |
| PT-PGC-003 | 1900 | 4 / 7 |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-PGC-001 | 480 × 480 × 1100 | 710 × 775 × 1770 |
| PT-PGC-002 | 540 × 520 × 1100 | 770 × 815 × 1770 |
| PT-PGC-003 | 554 × 610 × 1148 | 783 × 905 × 1818 |
Standard Configuration
Coated steel cabinet, mirror stainless steel chamber, adjustable shelves, compressor refrigeration, circulating air, glass inner observation door, mechanical lock and top test port. LCD controller includes an overtemperature alarm, parameter memory, power-restoration function and RS-485 interface. An independently switchable fresh-air unit is included. Humidity control is not specified as supplied.
Optional Accessories
Confirm additional shelves, accessories, electrical supply and combined temperature/light/humidity conditions in the quotation. UV, USB, audit trail, software and validation services are not specified as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, samples, temperature with lights on or off, illumination and shelf arrangement. Confirm utilities, installation and the final configuration before ordering.
