Humidity-controlled growth chambers with six illumination levels up to 15000 lx, 0–60 °C settings without light and 10–60 °C with light.
- 0–15000 lx illumination in six levels
- 30-segment programming with 99 cycles
- Standard heated humidifier and external water tank

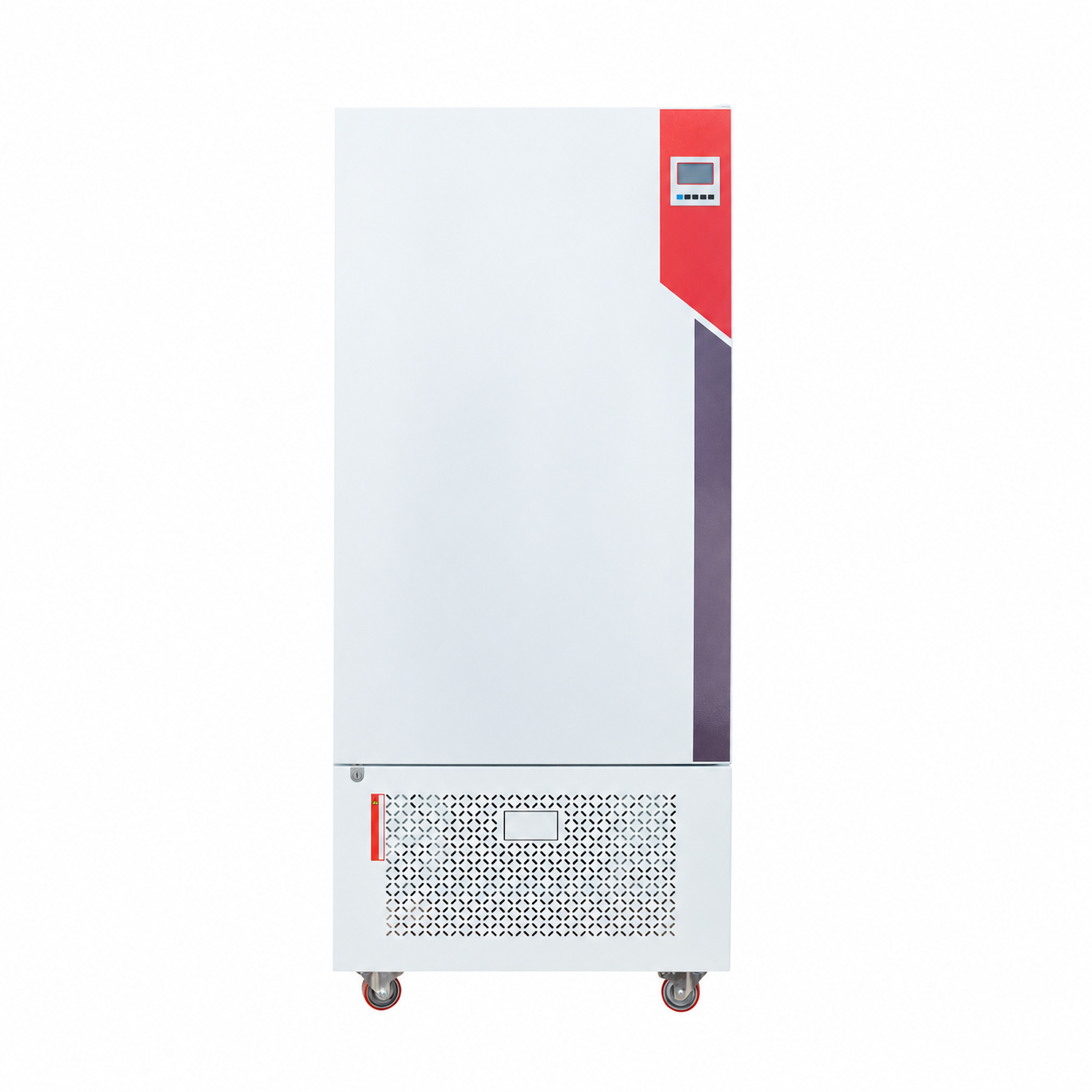

Representative exterior; dimensions and supplied shelves follow the selected model. The external water tank is not shown.
Technical Information
| Parameter | Value |
|---|
| Temperature range: lights off | 0–60 °C |
| Temperature range: lights on | 10–60 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation | ±0.5 °C |
| Temperature uniformity at 37 °C | ±1.5 °C |
| Illuminance: six selectable levels | 0–15000 lx |
| Timer range | 0–9999 min |
| Program segments / cycles | 30 / 99 |
| Top test port: ID / OD (mm) | 30 / 60 |
| Listed humidity control range | 60–90% |
| Listed humidity fluctuation | ±5% |
| Model | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-PGC-005 | 2100 | 4 / 7 |
| PT-PGC-006 | 2500 | 4 / 7 |
| PT-PGC-007 | 2500 | 4 / 7 |
| Model | Chamber dimensions (mm) | External dimensions (mm) |
|---|
| PT-PGC-005 | 480 × 480 × 1100 | 710 × 775 × 1770 |
| PT-PGC-006 | 540 × 520 × 1100 | 770 × 815 × 1770 |
| PT-PGC-007 | 554 × 610 × 1148 | 783 × 905 × 1818 |
Standard Configuration
Coated steel cabinet, mirror stainless steel chamber, adjustable shelves, compressor refrigeration, circulating air, glass inner observation door, mechanical lock and top test port. LCD controller includes an overtemperature alarm, parameter memory, power-restoration function and RS-485 interface. Heated humidification with an external water tank is standard. An independent fresh-air unit is not specified as supplied.
Optional Accessories
Confirm additional shelves, accessories, electrical supply and combined temperature/light/humidity conditions in the quotation. UV, USB, audit trail, software and validation services are not specified as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, samples, temperature with lights on or off, illumination and shelf arrangement. Confirm utilities, installation and the final configuration before ordering.
