Chambers for seed germination studies, with 0–70 °C temperature control, adjustable shelf lighting and optional humidity control.
- Far-red, red, blue and white LED light sources
- Independent light-intensity adjustment by layer
- 4.3-inch touchscreen, USB and RS-485

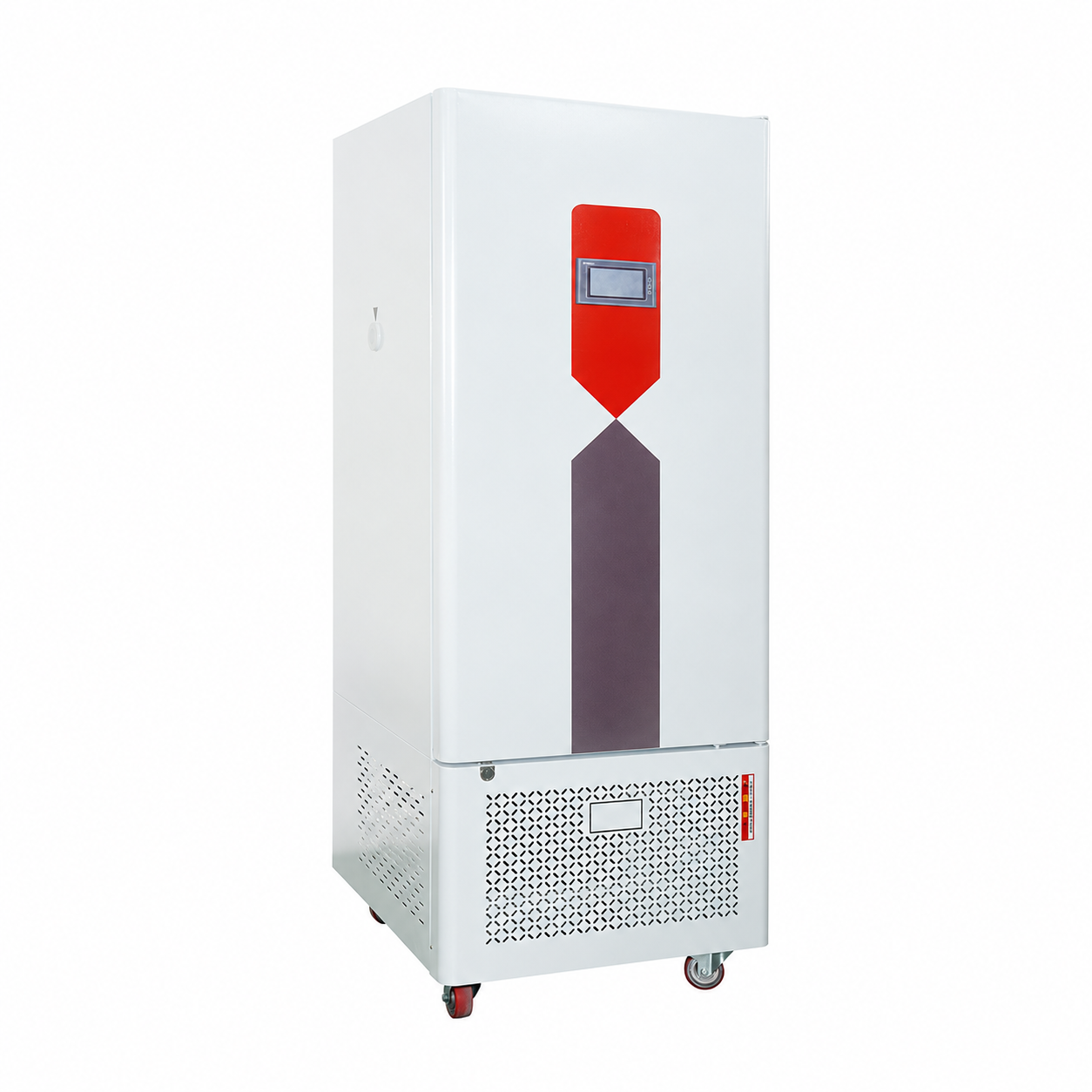

Representative exterior view. Internal light sources are not shown; controls, cabinet size and shelf arrangement depend on the selected model and configuration.
Technical Information
| Parameter | Value |
|---|
| Temperature resolution | 0.1 °C |
| Temperature fluctuation | ±0.5 °C (25 °C) |
| Model | Temperature range | Temperature uniformity (25 °C) | Base input power (W) | With humidity module (W) |
|---|
| PT-PGC-034 | 0–70 °C | ±1 °C | 1450 | 2050 |
| PT-PGC-035 | 0–70 °C | ±1 °C | 1750 | 2350 |
| PT-PGC-036 | 0–70 °C | ±1.5 °C | 3350 | 3950 |
| PT-PGC-037 | 0–70 °C | ±1.5 °C | 3100 | 3700 |
| PT-PGC-038 | 0–70 °C | ±1 °C | 1950 | 2550 |
| Model | Illuminance range (lux) | Light layers: supplied / maximum | Listed growing height (cm) | Total growing area (m²) |
|---|
| PT-PGC-034 | 0–20000 | 3/4 | 30 | 0.69 |
| PT-PGC-035 | 0–20000 | 3/4 | 30 | 1.15 |
| PT-PGC-036 | 0–20000 | 3/4 | 30 | 2.74 |
| PT-PGC-037 | 0–20000 | 3/4 | 30 | 2.14 |
| PT-PGC-038 | 0–20000 | 3/4 | 30 | 1.40 |
| Parameter | Value |
|---|
| Optional humidity range | 50–95% RH |
| Humidity fluctuation | ±3–7% |
Standard Configuration
Temperature-controlled chamber with adjustable shelf-mounted LED light sources, 24-hour parameter scheduling, 4.3-inch LCD touchscreen, alarm history, data graphs and USB export, multi-level password access, one USB and one RS-485 interface, glass inner door, mechanical door lock and two 30 mm test ports. Supplied and maximum shelf/light-layer counts are listed by model.
Optional Accessories
Humidity control with ultrasonic humidification and a side-mounted water tank is optional. The table distinguishes base power from power with this module. Confirm additional lighting layers, required growing height and the combined operating conditions in the quotation.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify model, organism or samples, temperature, light intensity, growing height and layer arrangement. Confirm mains supply, selected modules and combined operating conditions before ordering.
