Temperature and humidity chambers with standard 50–90% RH control, 30-segment programming and variable-speed refrigeration.
- Standard heated humidifier and external tank
- 30 segments and 99 cycles
- RS-485, glass inner door and two test ports

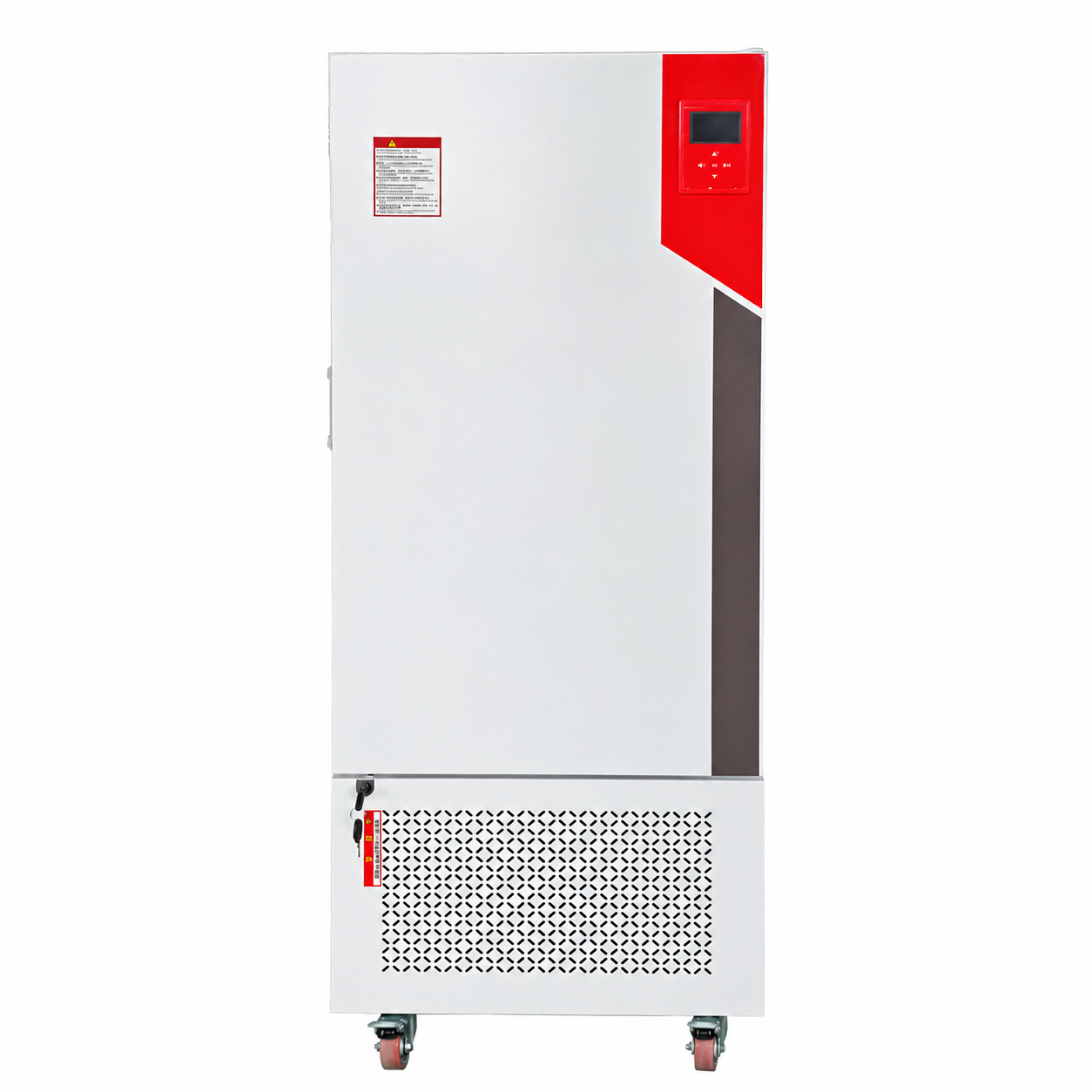

Representative exterior view. Chamber dimensions, door arrangement and supplied shelves vary by model; consult the specification table.
Technical Information
| Parameter | Value |
|---|
| Temperature resolution | 0.1 °C |
| Load per shelf | 15 kg |
| Temperature without humidity control | 0–60 °C |
| Temperature with humidity control | 10–60 °C |
| Humidity range | 50–90% RH |
| Humidity fluctuation | ±5% RH |
| Temperature fluctuation | ±0.5 °C (25 °C) |
| Timer range | 0–9999 min |
| Model | Input power (W) | Supplied shelves | Uniformity at 25 °C |
|---|
| PT-INC-024 | 1450 | 3 | ±1 °C |
| PT-INC-025 | 1500 | 4 | ±1 °C |
| PT-INC-026 | 1700 | 4 | ±1 °C |
| PT-INC-027 | 3800 | 6 | ±1.5 °C |
Standard Configuration
Stainless steel chamber, LCD temperature/humidity/timer controller, 30 segments and 99 cycles, glass inner door, mechanical lock, two 30 mm test ports, RS-485, heated humidifier with external water tank, overtemperature alarm and power-restoration memory.
Optional Accessories
Confirm any additional shelves and accessories in the quotation. Software, audit trails and validation services are not listed as standard. UV lamps and lighting are not documented as supplied for this series.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
