Refrigerated biochemical incubators with LCD control, 30-segment/99-cycle programming and 0–70 °C settings.
- 30 segments and 99 cycles
- Six fan speeds and variable-speed refrigeration
- Glass inner door, lock and two test ports

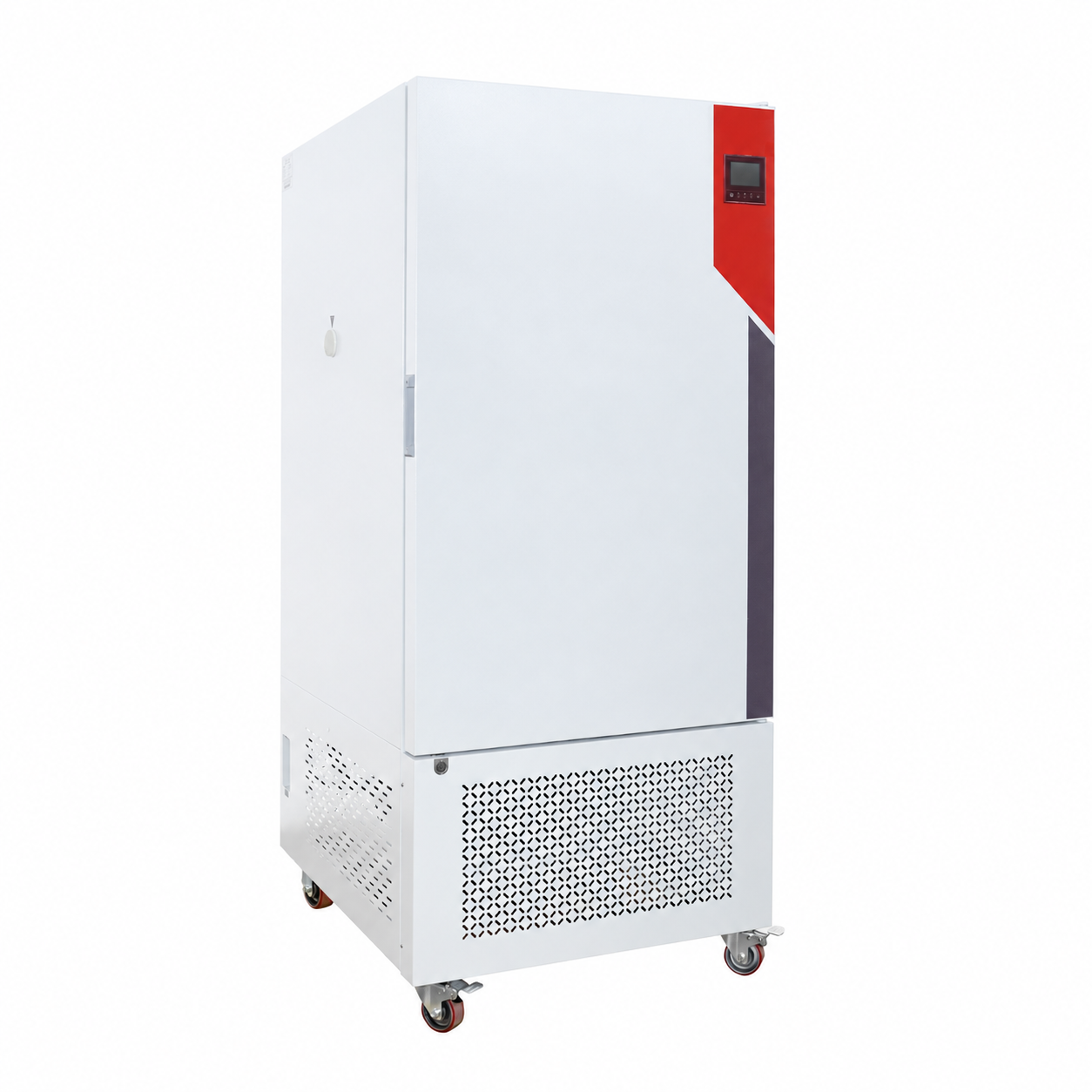

Representative exterior view. Chamber dimensions, door arrangement and supplied shelves vary by model; consult the specification table.
Technical Information
| Parameter | Value |
|---|
| Temperature resolution | 0.1 °C |
| Load per shelf | 15 kg |
| Temperature range | 0–70 °C |
| Temperature fluctuation: heating | ±0.5 °C |
| Temperature fluctuation: cooling | ±0.7 °C |
| Timer range | 0–9999 min/h |
| Delayed start | 0–9999 h |
| Model | Input power (W) | Shelves: supplied / maximum | Uniformity at 37 °C |
|---|
| PT-INC-004 | 1000 | 2/4 | ±1 °C |
| PT-INC-005 | 1000 | 3/5 | ±1 °C |
| PT-INC-006 | 1100 | 4/7 | ±1 °C |
| PT-INC-007 | 1350 | 4/7 | ±1 °C |
| PT-INC-008 | 2600 | 6/12 | ±1.5 °C |
Standard Configuration
Stainless steel chamber, LCD controller, 30 segments and 99 cycles, six fan speeds, glass inner door, mechanical lock, screen password, two 30 mm test ports, variable-speed refrigeration, overtemperature alarm and power-restoration memory. An internal 220 V auxiliary socket is listed; this is not a mains-supply specification. Observation lamp supplied.
Optional Accessories
Confirm any additional shelves and accessories in the quotation. Software, audit trails and validation services are not listed as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
