Cabinets for seed storage studies with controlled temperature and 20–60% RH humidity. Operating temperature depends on whether humidity control is active.
- LCD temperature, humidity and time controls
- 30 segments and 99 program cycles
- Mechanical lock and two side test ports

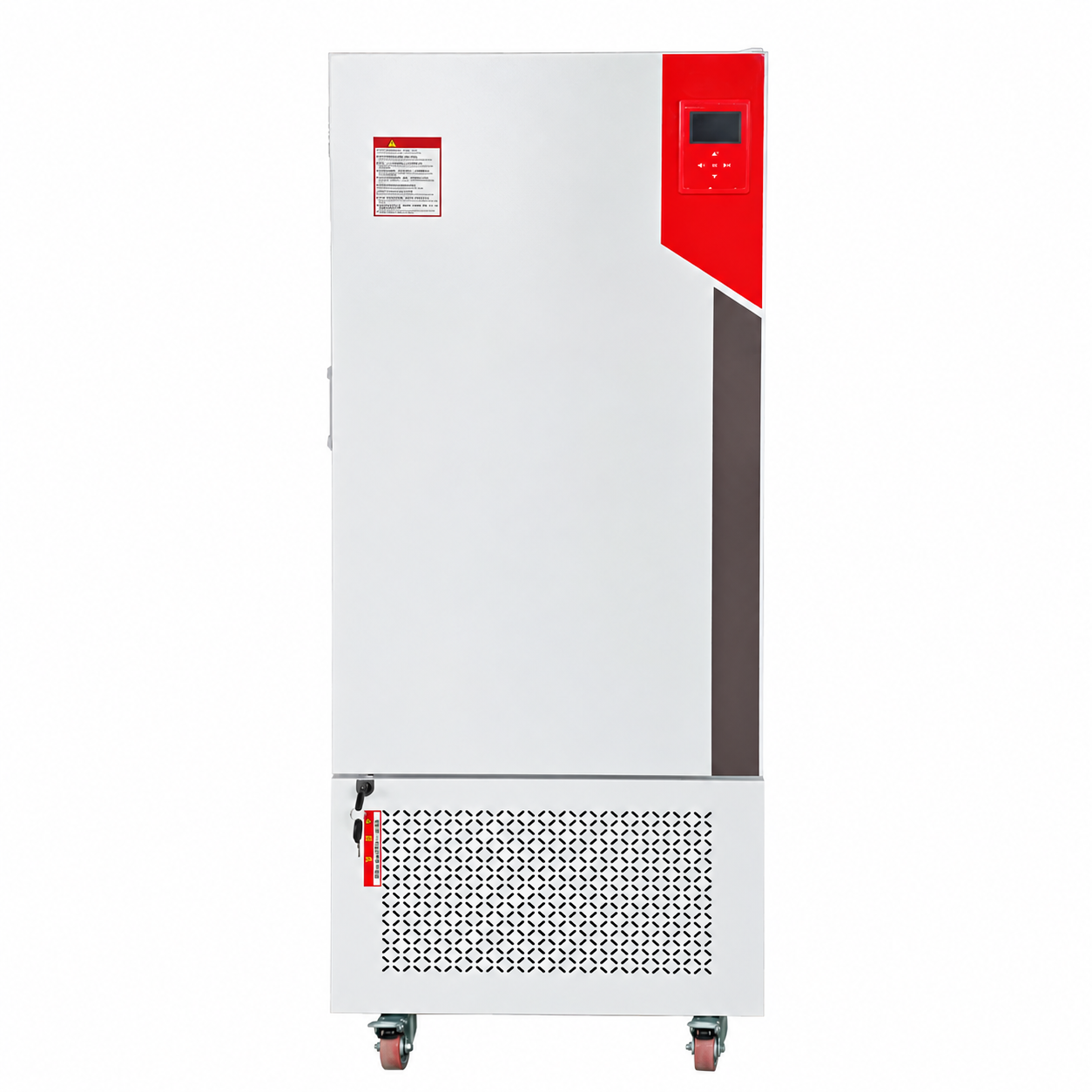

Representative exterior view. Cabinet size, controls and shelf arrangement vary by model.
Technical Information
| Parameter | Value |
|---|
| Temperature resolution | 0.1 °C |
| Program capacity | 30 segments / 99 cycles |
| Timer range | 0–9999 min |
| Model | Without humidity control (°C) | With humidity control (°C) | Humidity range (% RH) |
|---|
| PT-PGC-039 | 4–60 | 10–60 | 20–60 |
| PT-PGC-040 | 4–60 | 10–60 | 20–60 |
| PT-PGC-041 | 4–60 | 10–60 | 20–60 |
| Model | Temperature fluctuation | Temperature uniformity | Humidity fluctuation |
|---|
| PT-PGC-039 | ±0.5 °C heating / ±0.7 °C cooling | ±1 °C (25 °C) | ±3–7% |
| PT-PGC-040 | ±0.5 °C heating / ±0.7 °C cooling | ±1 °C (25 °C) | ±3–7% |
| PT-PGC-041 | ±0.5 °C heating / ±0.7 °C cooling | ±1 °C (25 °C) | ±3–7% |
| Model | Input power (W) | Supplied shelves |
|---|
| PT-PGC-039 | 1300 | 3 |
| PT-PGC-040 | 1400 | 4 |
| PT-PGC-041 | 1750 | 4 |
Standard Configuration
Stainless steel chamber, adjustable shelves, LCD controller, variable-speed refrigeration, circulation fan, heated humidification system with external water tank, mechanical door lock, two 30 mm side test ports, overtemperature alarm and power-restoration memory.
Optional Accessories
Confirm additional shelves, electrical supply and the final configuration in the quotation. No lighting, UV lamp, audit-trail or software package is listed as supplied.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
