Gas-controlled incubators with ambient +3 to 60 °C culture settings and a separate standard 150 °C dry-heat cycle, touchscreen records and USB export.
- Standard 150 °C dry-heat cycle; 180 °C optional
- Three-level permissions and event records
- IR CO2 sensor and water-pan humidification

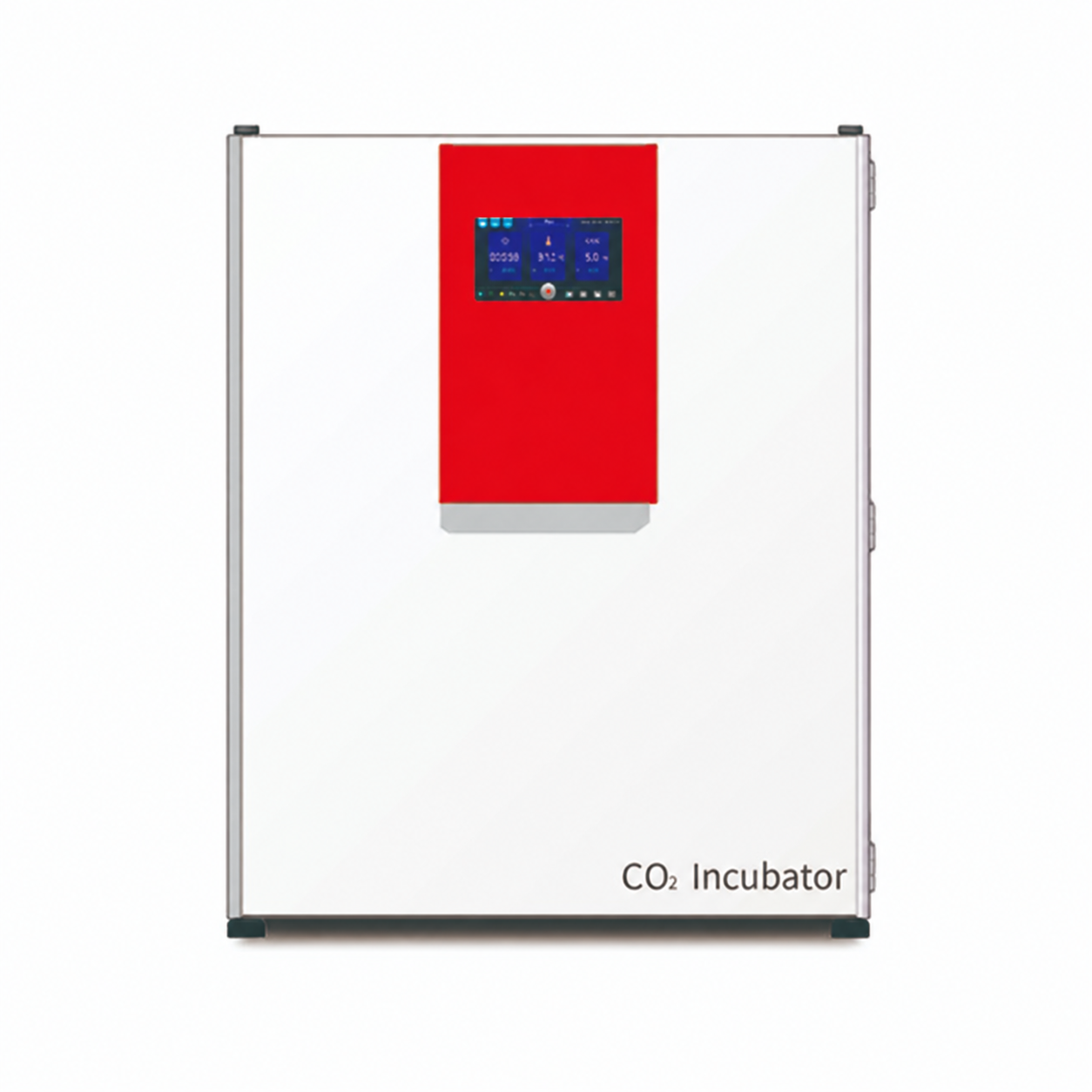

Representative closed cabinet and screen. Capacity, internal doors and gas/humidity options follow the selected model; the displayed screen does not establish supplied options.
Technical Information
| Parameter | Value |
|---|
| Incubation temperature range | Ambient +3 to 60 °C |
| Temperature uniformity at 37 °C | ±0.5 °C |
| Temperature fluctuation at 37 °C | ±0.3 °C |
| Operating ambient | 18–34 °C |
| CO2 control range | 0–20% |
| CO2 control accuracy | ±0.1% |
| Gas inlet pressure | 0.8–1.2 bar |
| Passive humidification modes | High: >90% RH; low: >80% RH |
| Standard dry-heat cycle temperature | 150 °C |
| Inlet filter size | ≤0.2 µm |
| Electrical supply | 220–240 V AC / 50 / 60 Hz |
| Model | Chamber volume (L) | Maximum power (W) | Supplied shelves |
|---|
| PT-INC-090 | 55 | 500 | 2 |
| PT-INC-091 | 185 | 1200 | 3 |
| PT-INC-092 | 260 | 1500 | 3 |
Standard Configuration
Direct air-jacket heating, forced circulation, 7-inch touchscreen, three-level permissions, timestamped events, data curves and USB export. IR CO2 sensor, water-pan humidification, stainless steel chamber/shelves, glass inner door, sampling/test ports, inlet filter and heat-resistant internal HEPA filter. Standard 150 °C dry-heat cycle, door/gas alarms and independent temperature protection.
Optional Accessories
Optional: 180 °C dry-heat cycle, humidity display, cylinder switching, remote monitoring, multiple inner doors, gas pressure regulator and movable base. Confirm compatibility, gas supplies and delivery; humidification does not imply active RH setpoint control. Oxygen control is optional on the base CO2 models.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify PRECETTA model, culture conditions, gas control, inner-door arrangement and dry-heat option. Confirm utilities, calibration and cycle qualification requirements in the quotation.
