Fan-circulated incubators for temperature-controlled laboratory cultivation, with 40–234 L chambers and ambient +5 to 65 °C settings.
- Temperature and timer controls
- Stainless steel chamber and adjustable shelves
- Observation window and overtemperature alarm

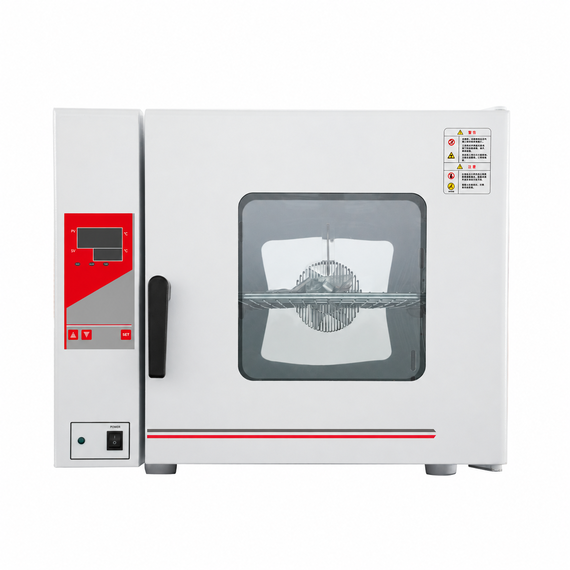

Representative exterior view. Cabinet dimensions, observation-door design and shelf quantities vary by model; consult the specification table.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Ambient +5 to 65 °C |
| Temperature resolution | 0.1 °C |
| Electrical supply | AC 220 V ±10% / 50 Hz ±2% |
| Timer range | 0–999 min/h |
| Model | Chamber volume (L) | Input power (W) | Shelves: supplied / maximum |
|---|
| PT-INC-034 | 40 | 300 | 2/4 |
| PT-INC-035 | 77 | 450 | 2/5 |
| PT-INC-036 | 142 | 450 | 3/7 |
| PT-INC-037 | 234 | 750 | 3/10 |
| Model | Temperature fluctuation | Temperature uniformity |
|---|
| PT-INC-034 | ±0.5 °C (37 °C) | ±1.5% |
| PT-INC-035 | ±0.5 °C (37 °C) | ±1.5% |
| PT-INC-036 | ±0.5 °C (37 °C) | ±1.5% |
| PT-INC-037 | ±0.5 °C (37 °C) | ±1.5% |
Standard Configuration
Stainless steel chamber, adjustable shelves, circulation fan, temperature/timer controller, glass observation window, overtemperature alarm and power-restoration memory.
Optional Accessories
Confirm additional shelves and any required accessories in the quotation. Lighting, UV lamps and software are not listed as supplied.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample or application, working temperature and required shelf arrangement. Confirm electrical supply and the final configuration before ordering.
