2–30 L laboratory muffle furnaces with molded refractory-brick chambers, fixed-temperature control and model-specific maximum use temperatures of 900, 1100 or 1200 °C.
- Model-specific chamber size, electrical ratings and use-temperature limit
- Ventilated casing and stainless steel inner door liner
- Overcurrent, overtemperature and door-open power protection

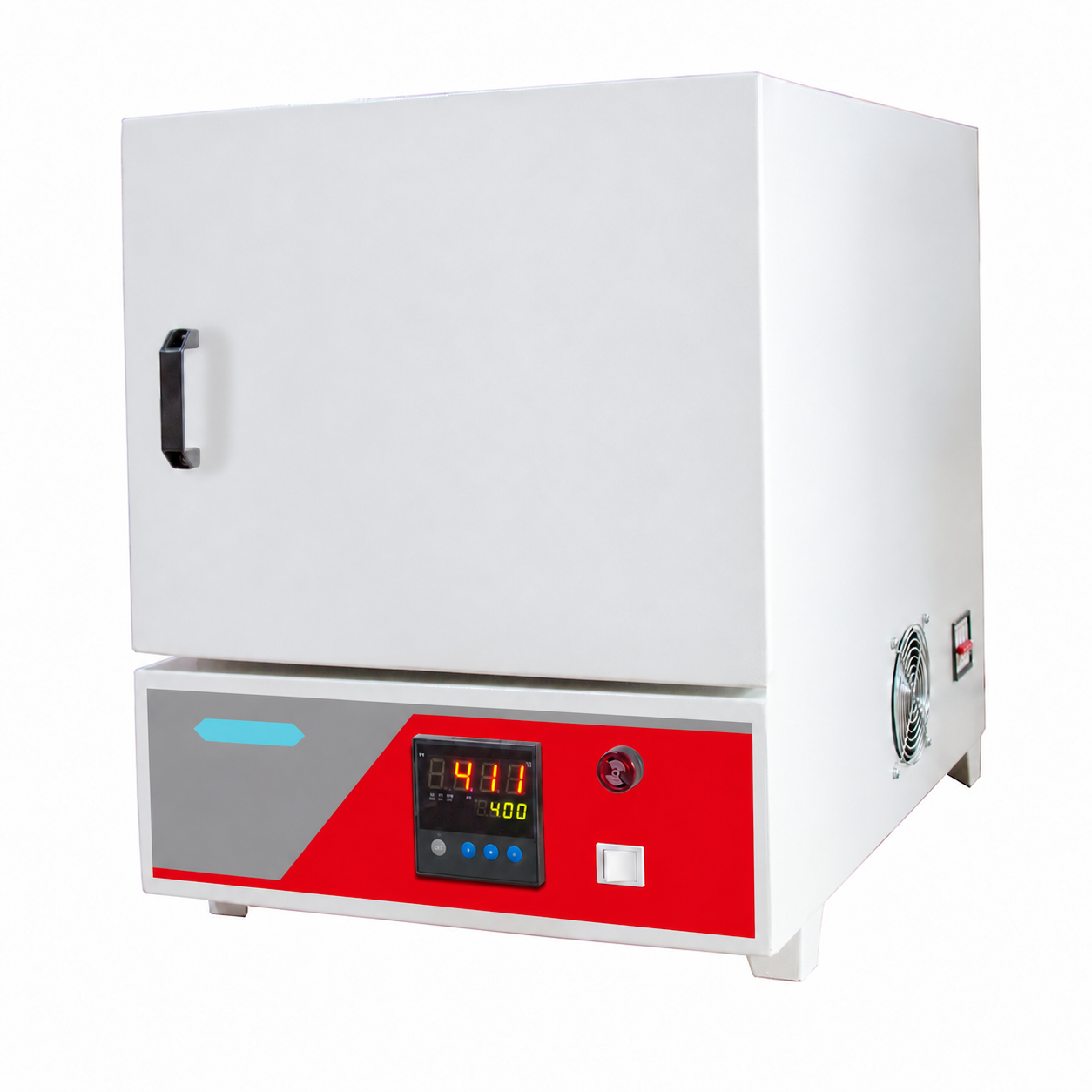

Image shows PT-MUF-009. Other models differ in chamber dimensions and cabinet size.
Technical Information
| Model | Chamber volume (L) | Voltage (V) | Input power (W) | Maximum use (°C) |
|---|
| PT-MUF-002 | 2 | 220 | 2500 | 900 |
| PT-MUF-009 | 7.2 | 220 | 4000 | 900 |
| PT-MUF-010 | 16 | 380 | 8000 | 900 |
| PT-MUF-011 | 30 | 380 | 12000 | 900 |
| PT-MUF-012 | 2 | 220 | 2500 | 1100 |
| PT-MUF-013 | 7.2 | 220 | 5000 | 1100 |
| PT-MUF-014 | 16 | 380 | 10000 | 1100 |
| PT-MUF-015 | 30 | 380 | 12000 | 1100 |
| PT-MUF-016 | 3.8 | 220 | 4000 | 1200 |
| PT-MUF-017 | 6.8 | 380 | 6000 | 1200 |
| PT-MUF-018 | 18 | 380 | 8000 | 1200 |
Standard Configuration
Molded refractory-brick chamber and door, with fixed-temperature control. Heating-element material is selected for the model. The 1000/1200 °C control classes use fiber/perlite insulation; the 1300 °C class uses fiber-board insulation. Ventilated casing, stainless steel inner door liner, overcurrent, overvoltage, overheating, leakage and short-circuit protection, and door-open power cutoff. The lower control setting is ambient temperature +30 °C.
Optional Accessories
Printers are optional. Confirm heating-element selection, loading accessories, electrical frequency and final delivery. Communication software and validation services are not listed as standard.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the model, sample type, required working temperature, loading arrangement and electrical supply. Use the listed maximum use temperature when selecting the process.
