Pilot freeze dryers with 0.24–1 m² drying area, -80 °C cold trap and -55 to 70 °C shelf settings for laboratory process development.
- In-place freezing and drying
- 36 programs with 40 segments
- Electric defrost and USB data export

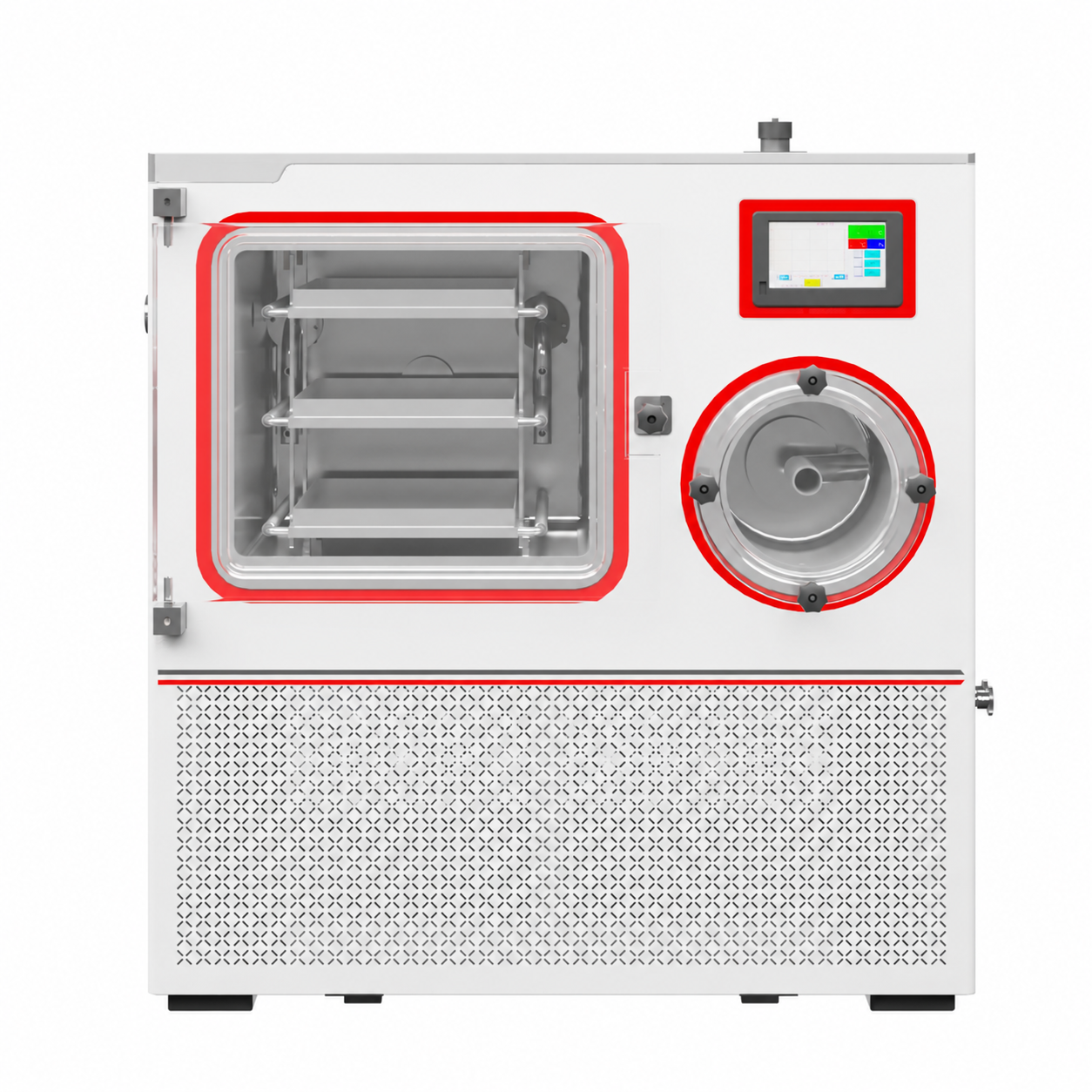

Representative cabinet. Shelf arrangement and dimensions vary by model; use the specification table to select the required configuration.
Technical Information
| Parameter | Value |
|---|
| Cold-trap temperature | -80 °C |
| Shelf temperature range | -55–70 °C |
| Ultimate vacuum | <1 Pa |
| Pressure display range | Ambient pressure to 0.1 Pa |
| Operating ambient | 10–24 °C |
| Programs / segments per program | 36 / 40 |
| Electrical supply | 380 V / 50 Hz |
| Model | Drying area (m²) | Listed water capture (kg) | Cold-trap volume (L) |
|---|
| PT-LYO-011 | 0.24 | 6.5 | 13.5 |
| PT-LYO-012 | 0.5 | 10 | 18 |
| PT-LYO-013 | 1 | 15 | 35 |
| Model | Shelf dimensions (mm) | Listed shelf count | Shelf spacing (mm) |
|---|
| PT-LYO-011 | 300 × 400 | 2+1 | 145 |
| PT-LYO-012 | 300 × 450 | 4+1 | 90 |
| PT-LYO-013 | 500 × 480 | 4+1 | 90 |
Standard Configuration
7-inch touchscreen, 36 programs with 40 segments, variable-speed refrigeration, electric defrost, temperature/vacuum display, data curves and one USB interface for data export. Separate drying chamber and cold trap permit in-place freezing and drying; observation window and pull-out trays are listed.
Optional Accessories
External freeze-drying flask function and eutectic-point testing are optional. Confirm vacuum-pump supply, connections, vials, stoppers and the delivery list. Water-capture figures have no stated time basis; loaded performance and temperature/vacuum test conditions require confirmation.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify PRECETTA model, material, batch volume, vial sizes and drying process. Confirm the meaning of the listed shelf count, pump package, utility requirements and final configuration.
