A benchtop freeze dryer with a manifold drying chamber and four trays, a listed minimum temperature of -60 °C and a standard vacuum pump.
- Temperature/vacuum display and real-time curves
- Data storage and standard USB export
- Vacuum pump included; drying head specific to this model

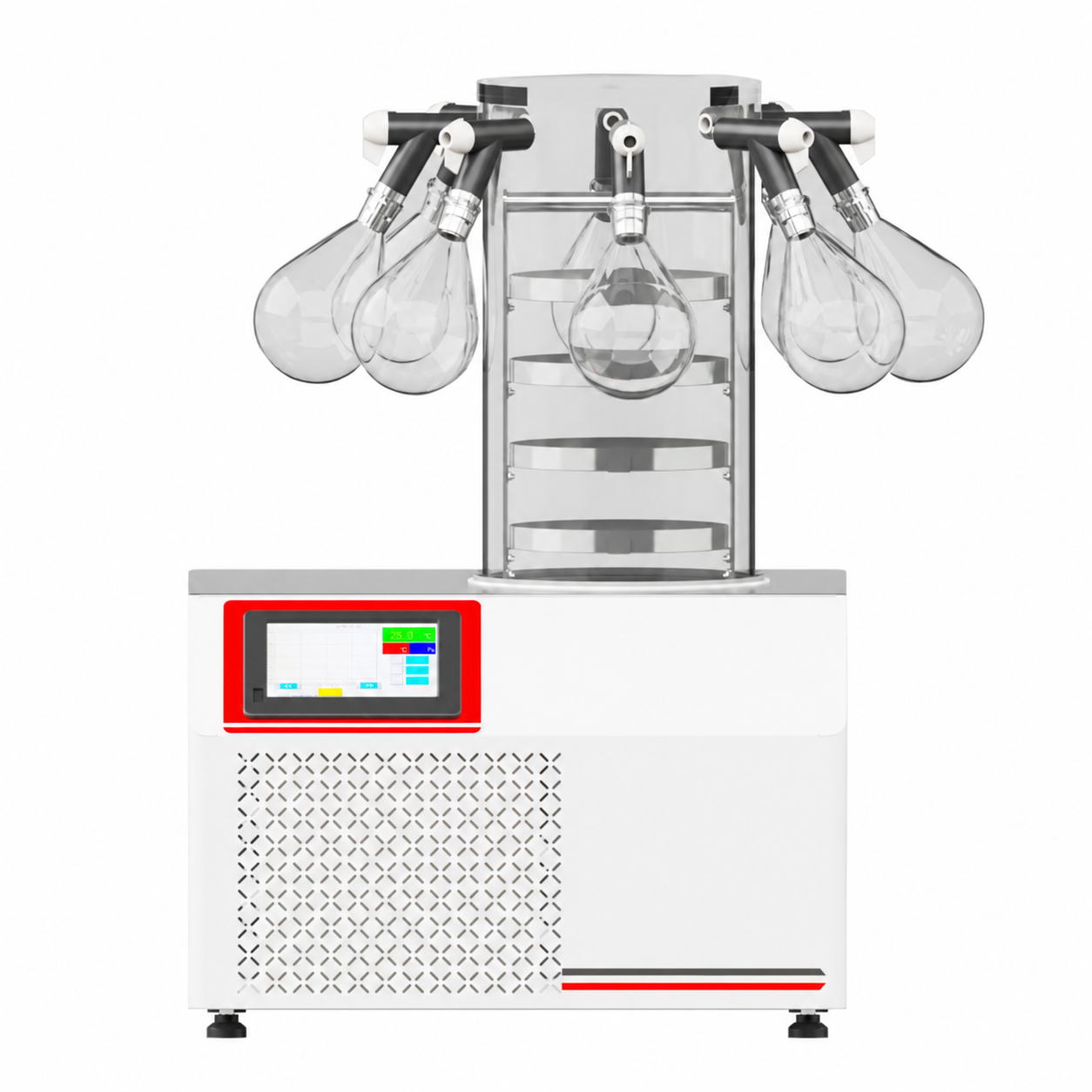

Image shows the main unit and selected drying arrangement. Confirm supplied glassware and connections; the standard vacuum pump is not shown. Dimensions below describe the main unit without the drying head.
Technical Information
| Parameter | Value |
|---|
| Model | PT-LYO-007 |
| Listed water capture | 4 kg / 24 h |
| Listed minimum temperature | -60 °C |
| Ultimate vacuum | <1 Pa |
| Input power (W) | 900 W |
| Electrical supply | AC 220 V ±10% / 50 Hz |
| Ambient operating temperature | 10–30 °C |
| Drying area | 0.12 m² |
| Material trays | 4 |
| Listed tray solution capacity | 1500 mL |
| Parameter | Value |
|---|
| Cold-trap dimensions (diameter × height) | 215 × 220 mm |
| Tray dimensions (diameter × height) | 195 × 24 mm |
| Main unit dimensions (W × D × H) | 600 × 545 × 375 mm |
Standard Configuration
Variable-speed refrigeration, insulated cold trap, controller displaying cold-trap temperature, sample temperature and vacuum, real-time curves, stored data, one USB interface and a vacuum pump. Drying arrangement: manifold drying chamber and four trays.
Optional Accessories
Confirm flask/vial sizes, quantity and supplied glassware, sample compatibility, vacuum tubing and final delivery scope. No -85 °C option is specified for this benchtop model. Minimum temperature, ultimate vacuum and water-capture figures are listed limits; loaded performance and test conditions require confirmation.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify PRECETTA PT-LYO-007, sample composition, solution volume and required drying conditions. Confirm utilities, pump connections and final accessories before ordering.
