A floor-standing freeze dryer with 0.12 m² drying area, four material trays, a transparent acrylic drying chamber and a standard vacuum pump.
- Temperature / vacuum display and real-time curves
- Data storage with standard USB export
- Four removable material trays and supplied vacuum pump

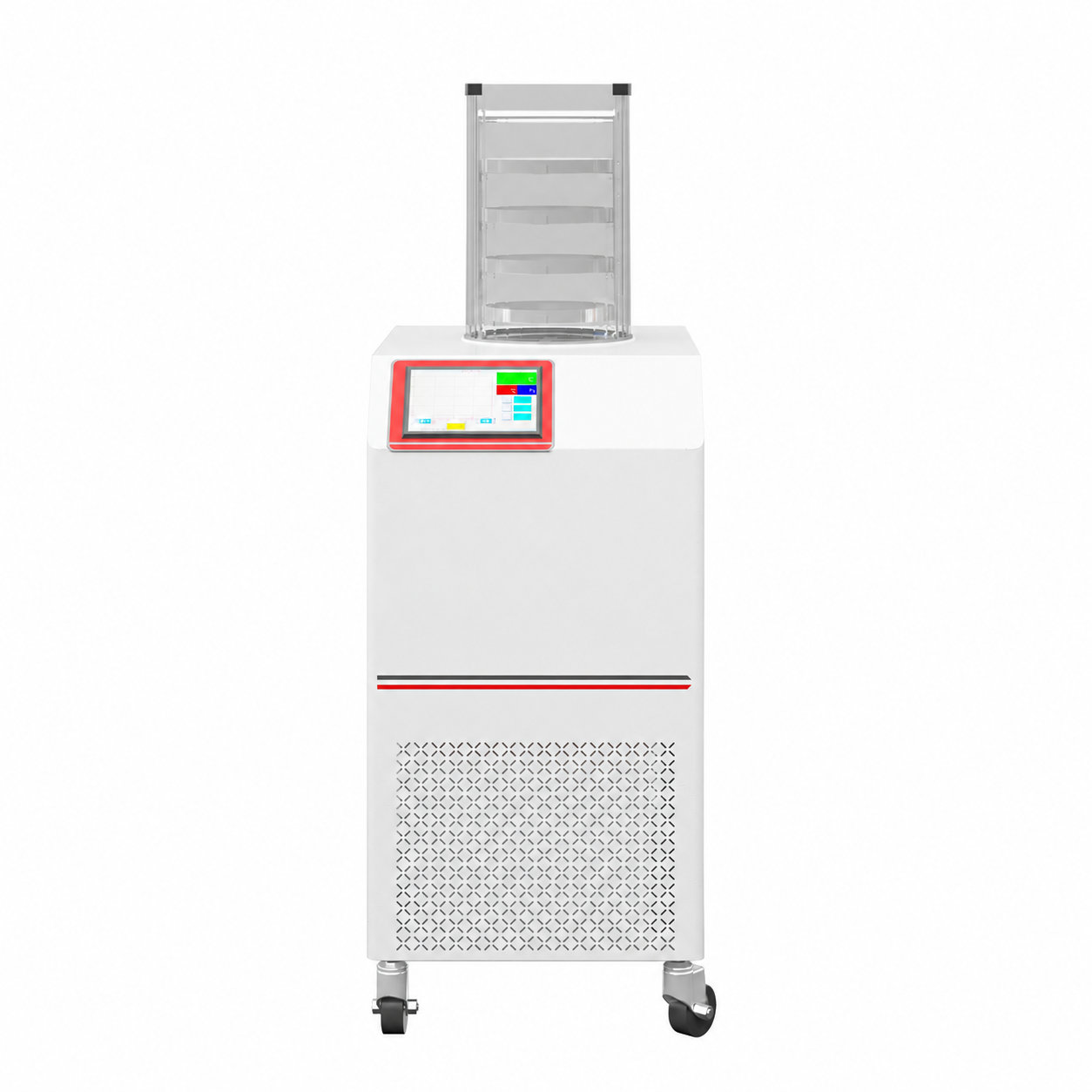

Representative main unit and selected drying head. Confirm supplied glassware and connections; the standard vacuum pump is not shown. Main-unit dimensions exclude the drying head.
Technical Information
| Parameter | Value |
|---|
| Model | PT-LYO-001 |
| Drying area | 0.12 m² |
| Listed water capture | 4 kg / 24 h |
| Listed minimum temperature | -60 °C |
| Ultimate vacuum | <1 Pa |
| Material trays | 4 |
| Listed tray solution capacity | 1500 mL |
| Input power (W) | 900 W |
| Electrical supply | AC 220 V ±10% / 50 Hz |
| Ambient operating temperature | 10–30 °C |
| Optional minimum-temperature version | -85 °C |
| Parameter | Value |
|---|
| Cold-trap dimensions (diameter × height) | 215 × 290 mm |
| Tray dimensions (diameter × height) | 195 × 24 mm |
| Main unit dimensions (W × D × H) | 480 × 635 × 850 mm |
Standard Configuration
Main unit with variable-speed refrigeration, insulated cold trap, one-piece transparent acrylic drying chamber, four removable material trays, controller displaying cold-trap temperature, sample temperature and vacuum, data storage, one USB interface and a vacuum pump. The listed drying area is 0.12 m². This basic tray configuration has no stated stoppering or external-manifold function.
Optional Accessories
A -85 °C minimum-temperature version is optional; confirm its refrigeration/electrical specification separately. Standard listed minimum is -60 °C. Confirm flask/vial sizes, quantities, supplied glassware, pump connections and delivery. Temperature/vacuum limits and water-capture values require confirmation of test conditions and loaded performance.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify PRECETTA PT-LYO-001, sample composition, solution volume and required drying conditions. Confirm utilities, pump connections and final accessories before ordering.
