Laboratory vacuum pumps with pumping speeds of 1–8 L/s, listed ultimate pressure of 0.06 Pa or lower and model-specific electrical and inlet connections.
- Four pumping-speed choices
- KF16, KF25 or KF40 inlet connections
- Model-specific motor power and oil quantity

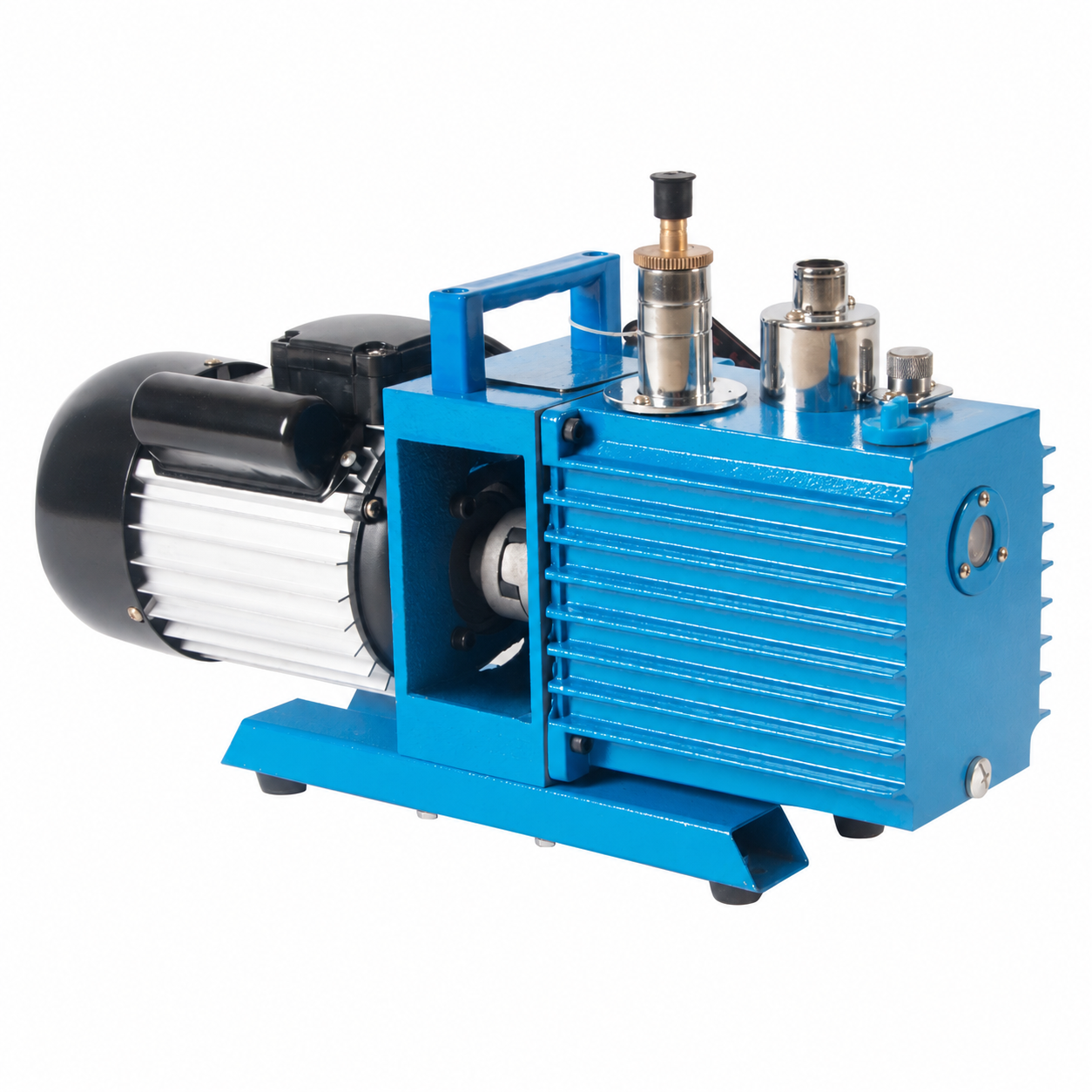

Pictured: PT-VPM-002. Housing, fittings and dimensions vary by model; consult the specification table.
Technical Information
| Parameter | Value |
|---|
| Ultimate vacuum | ≤0.06 Pa |
| Rotational speed | 1400 rpm |
| Model | Pumping speed (L/s) | Motor power (kW) | Supply voltage (V) | Inlet connection |
|---|
| PT-VPM-001 | 1 | 0.25 | 220 | KF16 |
| PT-VPM-002 | 2 | 0.37 | 220 | KF25 |
| PT-VPM-003 | 4 | 0.55 | 220 | KF25 |
| PT-VPM-004 | 8 | 1.1 | 380 | KF40 |
| Model | Oil quantity (L) | Listed noise (dBA) | Weight (kg) |
|---|
| PT-VPM-001 | 0.55 | 68 | 19 |
| PT-VPM-002 | 0.65 | 70 | 22 |
| PT-VPM-003 | 0.8 | 70 | 24 |
| PT-VPM-004 | 1.8 | 70 | 85 |
Standard Configuration
Oil-lubricated vacuum pump. Pumping speed, motor power, inlet connection, oil quantity and dimensions are specified separately for each model. Confirm the final delivery list in the quotation.
Optional Accessories
Confirm required tubing, adapters, traps, operating oil and instrument compatibility in the quotation; these items are not specified as supplied. No software or validation service is included.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Select the pumping speed, inlet connection and electrical supply required by the connected instrument. Confirm gas and vapor compatibility, oil and operating conditions before ordering.
