Temperature-controlled base chambers, 0–85 °C, with audit records and USB export. Humidity, shelf lighting and near-UV require selected modules.
- 7-inch touchscreen with audit trail
- 30 program segments and 99 cycles
- Standard embedded printer; USB / RS-232 / RS-485

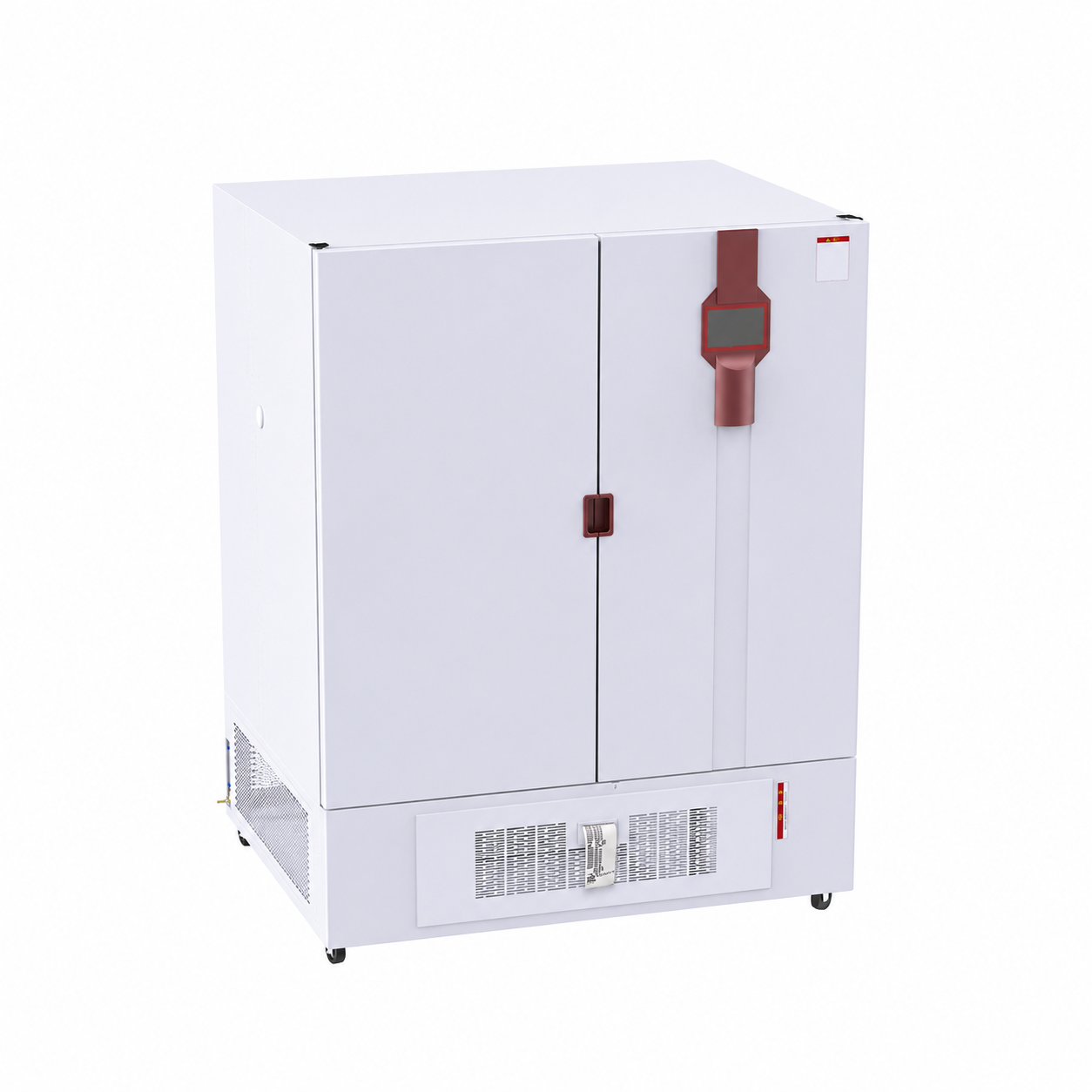

Representative exterior. Dimensions, shelves and internal modules follow the selected model and configuration.
Technical Information
| Parameter | Value |
|---|
| Base temperature range | 0–85 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation at 25 °C | ±0.3 °C |
| Temperature uniformity at 25 °C | ±1 °C |
| Program segments / cycles | 30 / 99 |
| Electrical supply | 220 V ±10 V / 50 / 60 Hz |
| Operating ambient | 10–30 °C |
| Model | Base (W) | Shelves: supplied / maximum |
|---|
| PT-ENV-036 | 2500 | 4 / 12 |
| PT-ENV-037 | 2600 | 4 / 12 |
| PT-ENV-038 | 2700 | 4 / 12 |
| Model | Time per segment | Selected light/UV option: maximum positions |
|---|
| PT-ENV-036 | 1–999 h | 4 |
| PT-ENV-037 | 1–999 h | 4 |
| PT-ENV-038 | 1–9999 h | 4 |
Standard Configuration
7-inch touchscreen with USB export, event audit trail and user permissions. Includes variable-speed refrigeration, antifog glass inner door, mechanical lock, embedded printer, USB, RS-232 and RS-485, two side validation ports (30 mm inside diameter) and condensate recovery. Adjustable circulation airflow and multilevel passwords are included. The base configuration provides temperature control. Humidification, lighting and near-UV modules are not included in the base configuration.
Optional Accessories
Select humidity, lighting and/or near-UV modules when requesting a quote. Extension power depends on the selected configuration. UV values apply only to a selected UV extension. Confirm module/source quantities, installation compatibility, software, remote messaging and qualification documents; no regulatory certification or field-retrofit capability is assured. Confirm the selected modules and combined operating conditions. Power for simultaneous light and UV is not specified.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, temperature, humidity, illumination/UV needs and required modules. Confirm combined operating conditions, utilities, source quantities, installation and delivery before ordering.
