Walk-in temperature and humidity room configured for the project, with a 7-inch PLC touchscreen, audit records, USB export and internal LED observation lighting. Operating ranges and dimensions require project confirmation.
- 7-inch PLC touchscreen with audit and USB export
- Project-specific temperature, humidity and dimensions
- Embedded printer, LED observation lighting and emergency stop

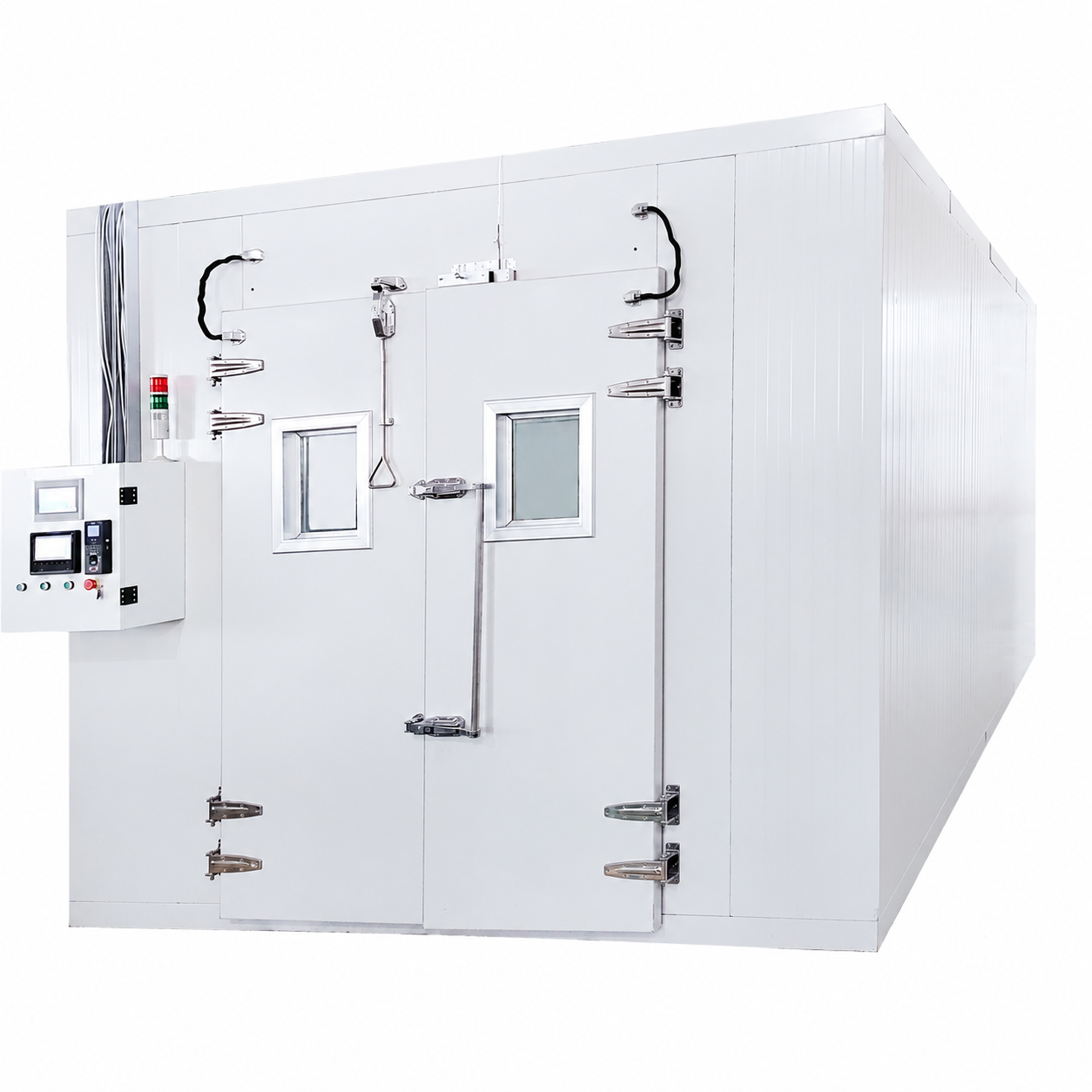

Representative exterior. Dimensions, door arrangement and final equipment configuration follow the selected model and approved specification.
Technical Information
| Parameter | Value |
|---|
| Temperature range | Defined for the project |
| Temperature resolution | 0.1 °C |
| Listed temperature fluctuation | ±0.5 °C |
| Listed temperature uniformity | ±1 °C |
| Humidity range | Defined for the project |
| Humidity resolution | 0.1% RH |
| Listed humidity fluctuation | ±2% RH |
| Listed humidity deviation | ±3% RH |
| Electrical supply | AC 380 V ±10% / 50 Hz |
| Chamber dimensions (mm) | Defined for the project |
| External dimensions (mm) | Defined for the project |
Standard Configuration
SUS304 stainless steel interior, nonslip patterned aluminium floor and 100 mm rigid polyurethane insulation. Includes forced air circulation, variable-speed refrigeration, surface-evaporation humidity control, assigned user permissions, timestamped event records, USB export, embedded printer, remote SMS alarm module, LED observation lighting, emergency stop and an anti-lockout mechanical door lock. Sensor quantities and refrigeration arrangement depend on room design.
Optional Accessories
Specify room dimensions, temperature/humidity ranges, shelving, door arrangement and validation ports for quotation. Confirm access-control equipment and remote-message service availability. LED observation lighting is not controlled photostability illumination. No certification, software-compliance status, fixed capacity or uninterrupted-operation assurance is stated.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, sample loading, temperature profile, humidity needs, dimensions and site utilities. Confirm the combined operating envelope, installation and final supply before ordering.
