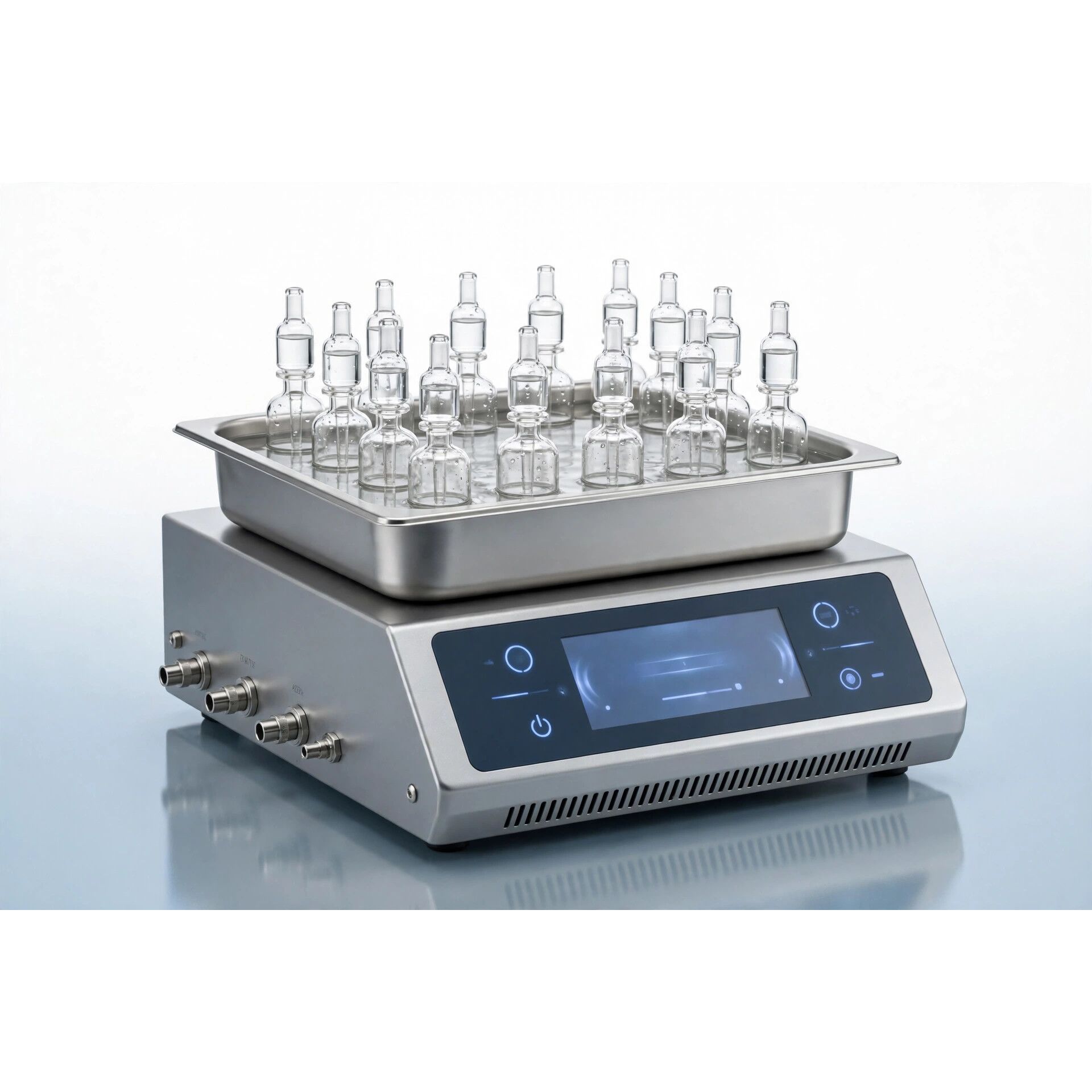

12-Position Transdermal Diffusion Tester

PT-TD12
Ask a question

PT-TD12 supports parallel diffusion experiments with twelve test positions, controlled stirring and a circulating water bath. The touchscreen displays temperature, speed and timing; stored experiment records can be exported by USB.

Key features

  • Twelve positions with 15 mL vertical receptor cells as standard
  • Adjustable stirring and user temperature calibration
  • One to six sampling time settings; automatic sample collection is not specified

Technical Information

Test positions12
Standard receptor volume15 mL
Bath temperature rangeAmbient–40 °C
Temperature control accuracy±0.3 °C
Stirring speed100–1000 rpm
Speed accuracy±5%
Timer range0–9 h 59 min
Sampling time settings1–6

Standard Configuration

Twelve-position instrument with 15 mL vertical receptor cells, circulating bath, stirring control and USB export. Confirm membrane holders and the full supply list in the quotation.

Optional Accessories

Alternative receptor configurations: 10 mL vertical or 5 mL horizontal, selected instead of the standard 15 mL vertical cells. An external cooler is optional; the documented cooled range is 4–10 °C. Confirm mechanical compatibility.

Applications

Comparative diffusion studies using a membrane, receptor medium and sampling procedure selected for the formulation under investigation.

Selection / Ordering Information

Confirm sample compatibility, configuration, electrical supply and required documentation in the quotation.

Downloads

Download the detailed product datasheet for full specifications and configuration information.

Download PDF - English · PDF

PRECETTA-PT-TD12-en.pdf (PRECETTA-PT-TD12-en.pdf, 440 Kb) [Download]

PRECETTA-PT-TD12-es.pdf (PRECETTA-PT-TD12-es.pdf, 441 Kb) [Download]

PRECETTA-PT-TD12-pt.pdf (PRECETTA-PT-TD12-pt.pdf, 441 Kb) [Download]

PRECETTA-PT-TD12-fr.pdf (PRECETTA-PT-TD12-fr.pdf, 441 Kb) [Download]

PRECETTA-PT-TD12-ar.pdf (PRECETTA-PT-TD12-ar.pdf, 457 Kb) [Download]
