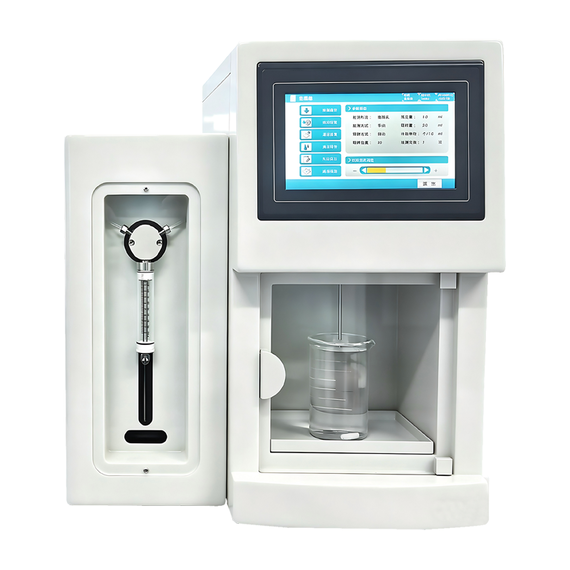

Measures lipid-emulsion particle size distributions and calculates PFAT5 using laser light obscuration and pulse-height analysis. Distribution curves and user-defined particle-volume intervals support formulation assessment.
Key features
- Laser light-obscuration measurement
- Configurable size thresholds for method selection
- Stored results and printed reports
- Confirm the required method and delivered software configuration
Technical Information
| Particle size range | 1–400 µm |
|---|
| Sampling volume | 0.2–1000 mL |
|---|
| Concentration range | 0–10000 particles/mL |
|---|
| Sampling volume error | <±1% |
|---|
| Accuracy against reference value | ±10% |
|---|
| Repeatability at >1000 particles/mL, 5 mL sample | RSD <2% |
|---|
| Distribution channels | ≤4096 |
|---|
| Adjustable thresholds | 2–100 µm; 0.01 µm setting increment |
|---|
| Electrical supply | 100–264 V; 49–62 Hz; <80 W |
|---|
| Laser power | 5 mW |
|---|
| Particle count display range | 0–9999999 |
|---|
Download the detailed product datasheet for full specifications and configuration information.
Standard Configuration
Instrument with standard 10 mL syringe. Confirm printer, cables, calibration items and full delivery list in the quotation.
Optional Accessories
25 mL syringe is an alternative configuration, not assumed included. Confirm compatible consumables, calibration items and qualification documents separately.
Selection / Ordering Information
Standard syringe 10 mL; optional 25 mL. Sampling rate 5–60 mL/min (10 mL) or 12–150 mL/min (25 mL). Custom methods support 32 channels; distribution analysis supports up to 4096 channels. PFAT5, integral/differential curves, electronic stirring, 7-inch touchscreen, USB backup and external printing are documented. Environment 10–40 °C. Confirm emulsion suitability, printer and calibration. Setting increment is not size accuracy.
Downloads
Download the detailed product datasheet for full specifications and configuration information.
Download PDF — English · PDF
