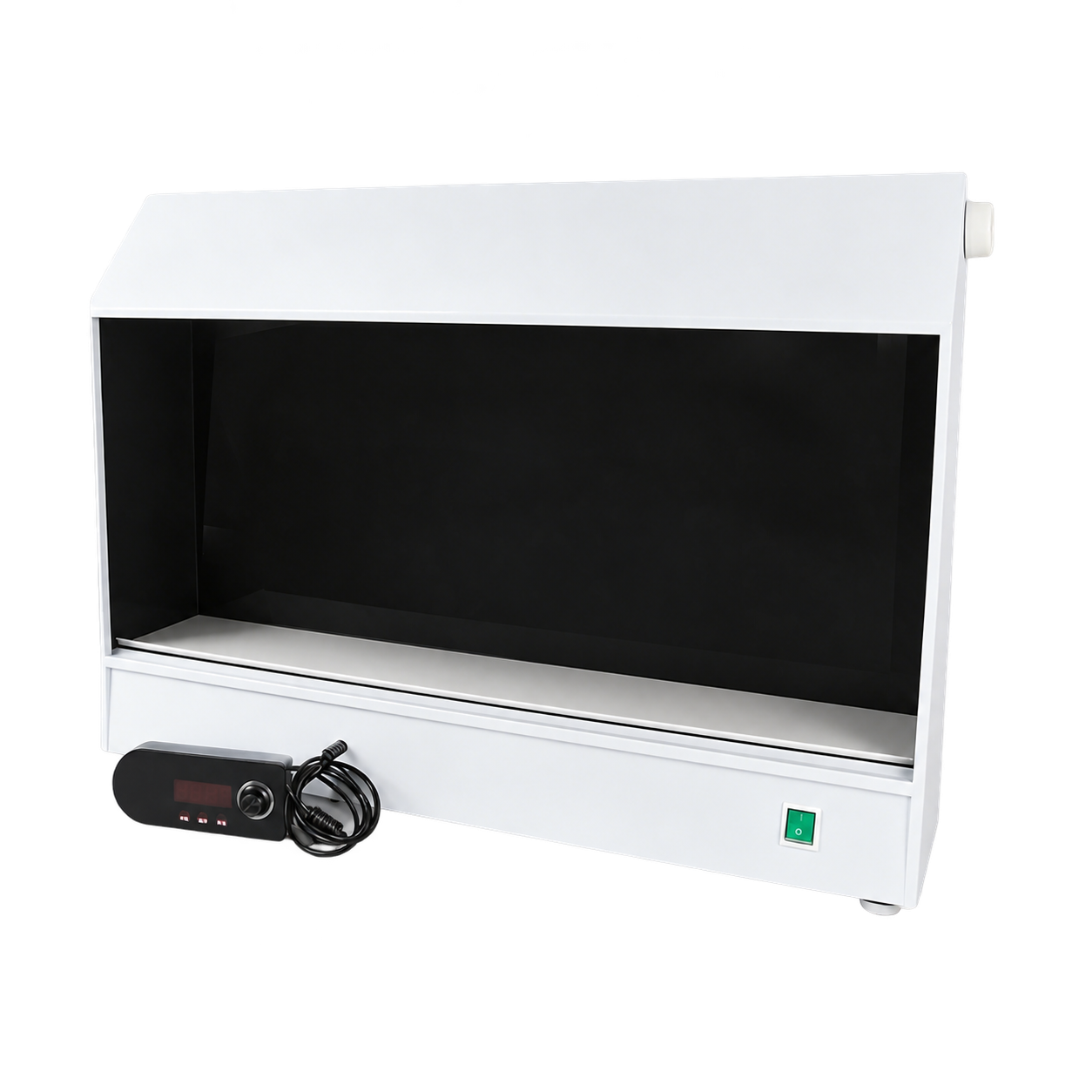

T-VIS-002 — For manual visual inspection of injections and eye drops, with adjustable illumination and a timed inspection alarm.
Key features
- Black and white inspection backgrounds
- Adjustable fluorescent illumination with electronic ballast
- Audible and visual end-of-time alarm
Core specifications
| Illuminance range | 1000–4000 lx |
|---|
| Inspection timer | 1–99 s |
|---|
| Factory timer setting | 20 s |
|---|
| Fluorescent lamps | 20 W ×1 |
|---|
| Power consumption | 22 W |
|---|
| Power supply | AC 220 V ±10%, 50 Hz |
|---|
Download the detailed product datasheet for full specifications and configuration information.
Standard Configuration
Single-sided station with one 20 W fluorescent lamp, timer and black/white inspection backgrounds. Confirm the complete packing list.
Optional Accessories
Optional accessories are not specified. Confirm replacement lamp compatibility and any illuminance-verification equipment separately.
Selection / Ordering Information
Specify container type, inspection method, required illumination and operator arrangement. This is a manual visual inspection station, not an automatic particle counter.
Downloads
Download the detailed product datasheet for full specifications and configuration information.
Download PDF — English · PDF
